  • Page 1 Planetary Mixer Instruction Manual...

  • Page 2: Pack Contents

    Pack Contents The following is included: •Food Mixer •Spiral Dough Hook •Whisk •Mixing Bowl •Beater • Instruction Manual General Description This is a kind of changing speed gear mixer. With its planetary stirring design, it has a compact structure, high efficiency, power saving and easy operation. It provides as an ideal assistant to you for bread and cake making.

  • Page 3: Main External Parts Of Mixer

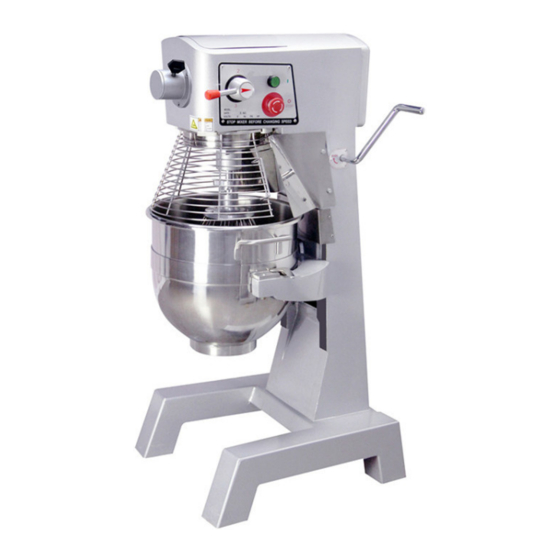

    Main External Parts of Mixer Gear change hand lever ① Stirring shaft ② Mixer ③ Stainless barrel ④ Power switch ⑤ Bent lever ⑥ Safety guard ( may choose the fitting) ⑦ Support ⑧ Page 3 of 19...
  • Page 4 Operation Instruction ① Standard power supply HzAc. (Please use a plug with 3 wide contacts and good grounding.) ② Installation of mixer: Put the stirring shaft 2 in Mixer 3 and rotate it in clockwise direction. ③ Starting procedures: Pull the hand lever 6 to raise the bowl and close the safety grille 7 to the closed position.

  • Page 5: Maintenance

    Notes ① The power socket must be provided with a good ground wire to guarantee the mixer’s good grounding through it. There will be an electric shock if no ground wire or an improper grounding mounted. The ground wire can never be connected with gas pipe, water pipe, lightning rod or telephone line.

  • Page 6: Troubleshooting

    Trouble Shooting Problems Causes Solutions Tool shaft does not Check electric wiring, tighten rotate after starting the Loosen electric wiring those loose connects machine Oil leakage The seal rings are worn out Replace seal rings Too low voltage Check the power supply Motor temperature raised while reduced Overloaded...
  • Page 7 Parts of 10L SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME 10-1 Flat Beater 10-69 Shifting yoke 10-2 Hook 10-70 Inner gear 10-3 Wire whip 10-71 hexagon socket cap screws 10-4 Gear box 10-72 Circlips for shaft 10-5 Circlips for shaft 10-73 Planet gear 10-6...
  • Page 8 Page 8 of 19...
  • Page 9 Parts of 20L SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME 20-1 Wire whip 20-44 Ring 20-2 Spiral dough hook 30-26 Bearing 20-3 Flat Beater 20-46 Bushing 20-4 Safety guard 20-47 Oil seal 20-5 Bowl assembly 20-48 Fore lump Support 30-7 Plunger-shifter yoke 20-49...
  • Page 10 Page 10 of 19...
  • Page 11 Parts of 20L with hub SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME 20-1 Wire whip 20-46 Bushing 20-2 Spiral dough hook 20-47 Oil seal 20-3 Flat Beater 20-48 Fore lump Support 20-4 Safety guard 20-49 20-5 Bowl assembly 20-50 Case 30-7 Plunger-shifter yoke...
  • Page 12 Page 12 of 19...
  • Page 13 Parts of 30L SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME 30-1 Hook 30-49 Support 30-2 Beater 30-50 Clamp plate 30-3 Wire Whip 30-51 30-4-version 4 Safety guard 30-52 Base 30-5 Bowl 30-53 Bearing 30-6 Top cover 30-54 Transmission shaft support 30-7 Screw 30-55...
  • Page 14 Page 14 of 19...
  • Page 15 Parts of 30L with hub SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME 30-1 Hook 30-51 30-2 Beater 30-52 Base 30-3 Wire Whip 30-53 Bearing 30-4 Safety guard 30-54 Transmission shaft support 30-5 Bowl 30-55 30-6 Top cover 30-56 Circlips for shaft 30-7 Screw 30-57...
  • Page 16 Page 16 of 19...
  • Page 17 Page 17 of 19...

  • Page 18: Proper Disposal

    Proper Disposal To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.
  • Page 19 Blizzard House Unit 17 Walker Industrial Estate Walker Road, Blackburn, Lancashire BB1 2QE T: 01254 614444 W: www.pentlandwholesale.co.uk E: sales@pentlandwholesale.co.uk Page 19 of 19...
