- Page 1 Planetary Mixer Instruction Manual...
-
Page 2: Pack Contents
Pack Contents The following is included: •Spiral Dough Hook •Whisk • Food Mixer •Beater • Instruction Manual • Mixing Bowl General Description This is a kind of changing speed gear mixer. With its planetary stirring design, it has a compact structure, high efficiency, power saving and easy operation. It provides as an ideal assistant to you for bread and cake making. -
Page 3: Main External Parts Of Mixer

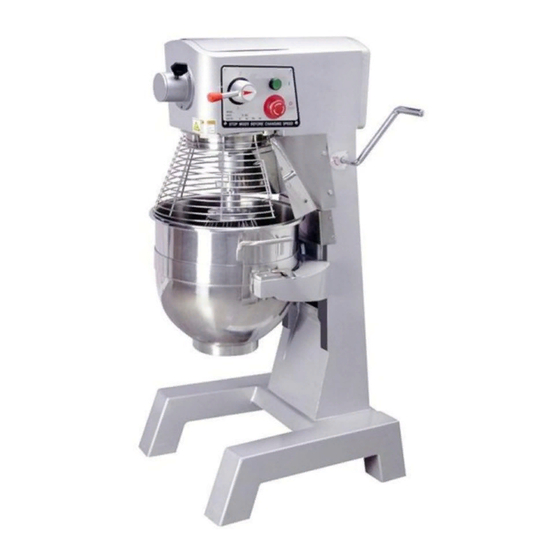

Main External Parts of Mixer Gear change hand lever Stirring shaft Mixer Stainless barrel Power switch Bent lever Safety guard ( may choose the fitting) Support... - Page 4 Operation Instruction Standard power supply 230v/50 HzAc. (Please use a plug with 3 wide contacts and good grounding.) Installation of mixer: Put the stirring shaft 2 in Mixer 3 and rotate it in clockwise direction. Starting procedures: Pull the hand lever 6 to raise the bowl and close the safety grille 7 to the closed position.
-
Page 5: Maintenance
Notes The power socket must be provided with a good ground wire to guarantee the mixer’s good grounding through it. There will be an electric shock if no ground wire or an improper grounding mounted. The ground wire can never be connected with gas pipe, water pipe, lightning rod or telephone line. -
Page 6: Troubleshooting
Trouble Shooting Problems Causes Solutions Tool shaft does not Check electric wiring, tighten Loosen electric wiring rotate after starting the those loose connects machine Oil leakage The seal rings are worn out Replace seal rings Too low voltage Check the power supply Motor temperature raised while reduced Overloaded... - Page 7 Parts of 10L SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME 10-1 Flat Beater 10-69 Shifting yoke 10-2 Hook 10-70 Inner gear 10-3 Wire whip 10-71 hexagon socket cap screws 10-4 Gear box 10-72 Circlips for shaft 10-5 Circlips for shaft 10-73 Planet gear 10-6...
- Page 9 Parts of 20L with hub SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME 20-1 Wire whip 20-46 Bushing 20-2 Spiral dough hook 20-47 Oil seal 20-3 Flat Beater 20-48 Fore lump 20-4 Safety guard 20-49 Support 20-5 Bowl assembly 20-50 Case 30-7 Plunger-shifter yoke...
- Page 11 Parts of 30L with hub SER.NO. PART.NO. PART NAME SER.NO. PART.NO. PART NAME 30-1 Hook 30-51 30-2 Beater 30-52 Base 30-3 Wire Whip 30-53 Bearing 30-4 Safety guard 30-54 Transmission shaft support 30-5 Bowl 30-55 30-6 Top cover 30-56 Circlips for shaft 30-7 Screw 30-57...
- Page 14 Parts have undergone strict product testing in order to comply with regulatory standards and specification set by international, independent, and federal authorities. Products have been approved to carry the following symbol: Pentland Wholesale Ltd, Blizzard House, Unit 17 Walker Industrial Estate, Walker Road, Blackburn, Lancashire, BB1 2QE. Tel: 01254 614444 www.pentlandwholesale.co.uk...
