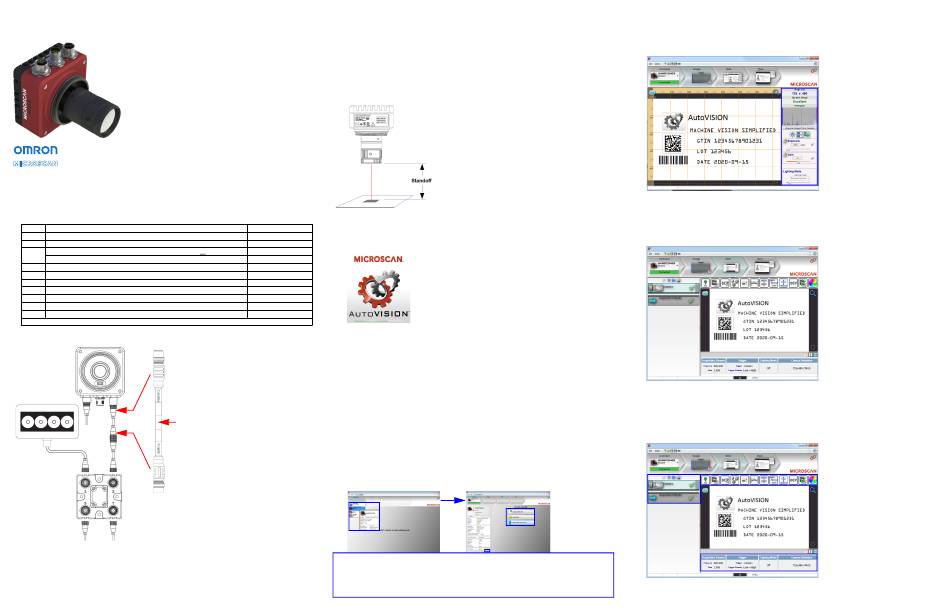

Omron Microscan HAWK MV-4000 Series Quick Start Manual

Quick Start Guide

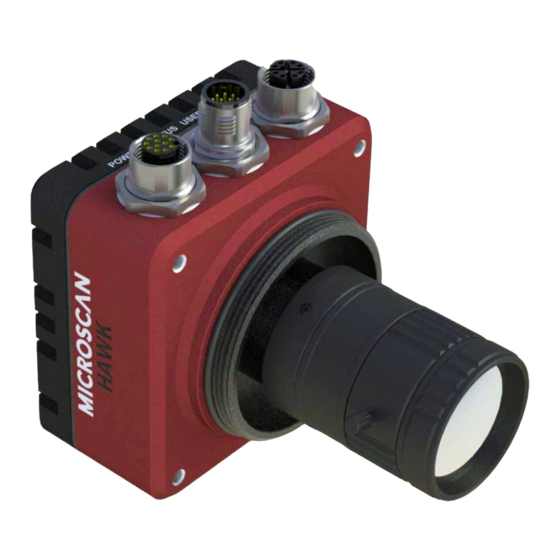

HAWK MV-4000 Smart Camera
Copyright ©2019 Omron Microscan Systems, Inc.
Step 1 — Check Hardware
The list of hardware below can be used in a variety of applications and configurations. Consult with
Omron Microscan for further information about which items are most appropriate for your application.
Item Description
1 HAWK MV-4000 Smart Camera
2 QX-1 Interface Device
Cordset, Common, M12 12-Pin Socket to M12 12-Pin Plug, 1 m or
3
Cordset, Common, M12 12-Pin Socket to M12 12-Pin Plug, 3 m
4 Cable, Adapter, HAWK MV-4000 to QX-1
5 Power Supply, 100-240VAC, +24VDC, M12 12-Pin Socket
6 Cable, Ethernet, M12 8-Pin Plug to RJ45, X-Code/RJ45 CAT 6A, 1 m, 3 m, or 5 m 61-9000134-01, -02, -03
7 Photo Sensor, M12 4-Pin Plug, NPN, Dark On, 2 m
8 QX Cordset, Smart Series Light to QX-1, Continuous Power
9 QX Cordset, Smart Series Light to QX-1, Strobe, NPN
10 NERLITE Smart Series Illuminator
Note: Additional cables available in the Omron Microscan Product Pricing Catalog.
Step 2 — Connect the System
1
CAMERA
10 End
6 4
61-9000132-01
POWER
End
3
8 or 9
2
5 7
Ethernet Configuration (Standard HAWK MV-4000)
1. Connect the Ethernet cable (6) from the 100/1000 Base-T connector on the camera (1) to the network.
2. Connect the power supply cable (5) to "3" on the QX-1 (2).
3. Connect the photo sensor (7) to "T" on the QX-1.
4. Connect the "CAMERA" end of the adapter cable (4) to the camera, and the "POWER" end to the
"Common" cable (3). Then connect the "Common" cable to "2" on the QX-1.
5. Connect the Smart Series cable (8 or 9) to your choice of Smart Series light and to "1" on the QX-1.
6. Plug in the power supply.
Step 3 — Mount and Position the Camera
Position the camera at a standoff of 150 mm or more from the part.
Proper lighting is critical to the success of a machine vision application.
Consider the following:
• Is the surface of the object flat, slightly bumpy, or very bumpy?
• Is the surface matte or shiny?
• Is the object curved or flat?
• What is the color of the object or area being inspected?
• Is the object moving or stationary?
Machine vision lighting should maximize contrast of the areas or features being inspected while minimizing
the contrast of everything else.
84-9111025-02 Rev C
Camera / Object Positioning
Part Number
Step 4 — Install AutoVISION
8X1X-XXX0-0PPP
98-000103-02
AutoVISION can be found on the Omron Microscan Tools Drive that is packaged with the camera.
61-000162-02
61-000148-02
61-9000132-01
97-000012-01
99-000020-02
61-000204-01
61-000218-01
NER-011660XXXG
1. Follow the prompts to install AutoVISION from the Tools Drive.
2. Click on the AutoVISION icon to run the program.
Note: AutoVISION can also be installed from the Download Center at
Minimum System Requirements
®
• Intel Core™ i3 Processor @1.6GHz
• Internet Explorer 11 / Google Chrome
• 2GB RAM (Windows 7 SP1 / Windows 7 Embedded Standard SP1)
• 3GB hard drive space
• 32-Bit color display, 1366 x 768 or 1280 x 960
• 4.0 Windows Experience Index (particularly for graphics)
• 1 USB 2.0 port and 1 network port
Step 5 — Connect to the Camera
After you launch AutoVISION, you will see the Select a device to start editing a job view.
Note: If there is a default job on the camera, AutoVISION will automatically skip the Connect step and
you will see the Image view.
1. Select your camera from the Select Device dropdown menu.
2. Click the Modify button beneath the camera settings details to change camera settings.
3. Choose whether you want to create a new job, load a job (.avp), or upload a job from the camera.
Note: The HAWK MV-4000's default IP address is: 192.168.AA.BB where AA.BB are the last 2
octets in decimal of the device MAC Address with subnet Class B 255.255.0.0. Set your PC to the
same subnet (192.168.0.1, for example).
To access the camera's "health status", enter the address http://[your camera name]:8088 in a
browser, where [your camera name] is the name of the device – HAWK3204E8, for example.
Note: C-mount set screws can
be loosened to allow focus and
aperture adjustment.
www.microscan.com.
Step 6 — Evaluate a Captured Image and Auto Calibrate
You will see the Image view after selecting your device. This view allows you to evaluate your first image
capture, providing information such as image size and a histogram. Click the Auto Calibration button to
set optimal camera parameters automatically. You can also adjust Exposure, Gain, and Focus as
needed, and set the desired Lighting Mode.
Step 7 — Create Your First Job with AutoVISION
After you have evaluated a captured image and Auto Calibrated the camera in the Image view, you will
move to the Edit view. This interface allows you to set camera parameters, add machine vision tools to
captured images, set tool parameters, and configure I/O inspection outputs.
Step 8 — Explore the Interface
The Edit view features a large image area with tool icons above and tool parameters below or to the right
depending on user preference. When a tool is selected, its specific parameters appear.
Tools that have been added are shown in the job list to the left of the image area, below Camera.
Image settings can be controlled using the icons in the corners of the image area.
