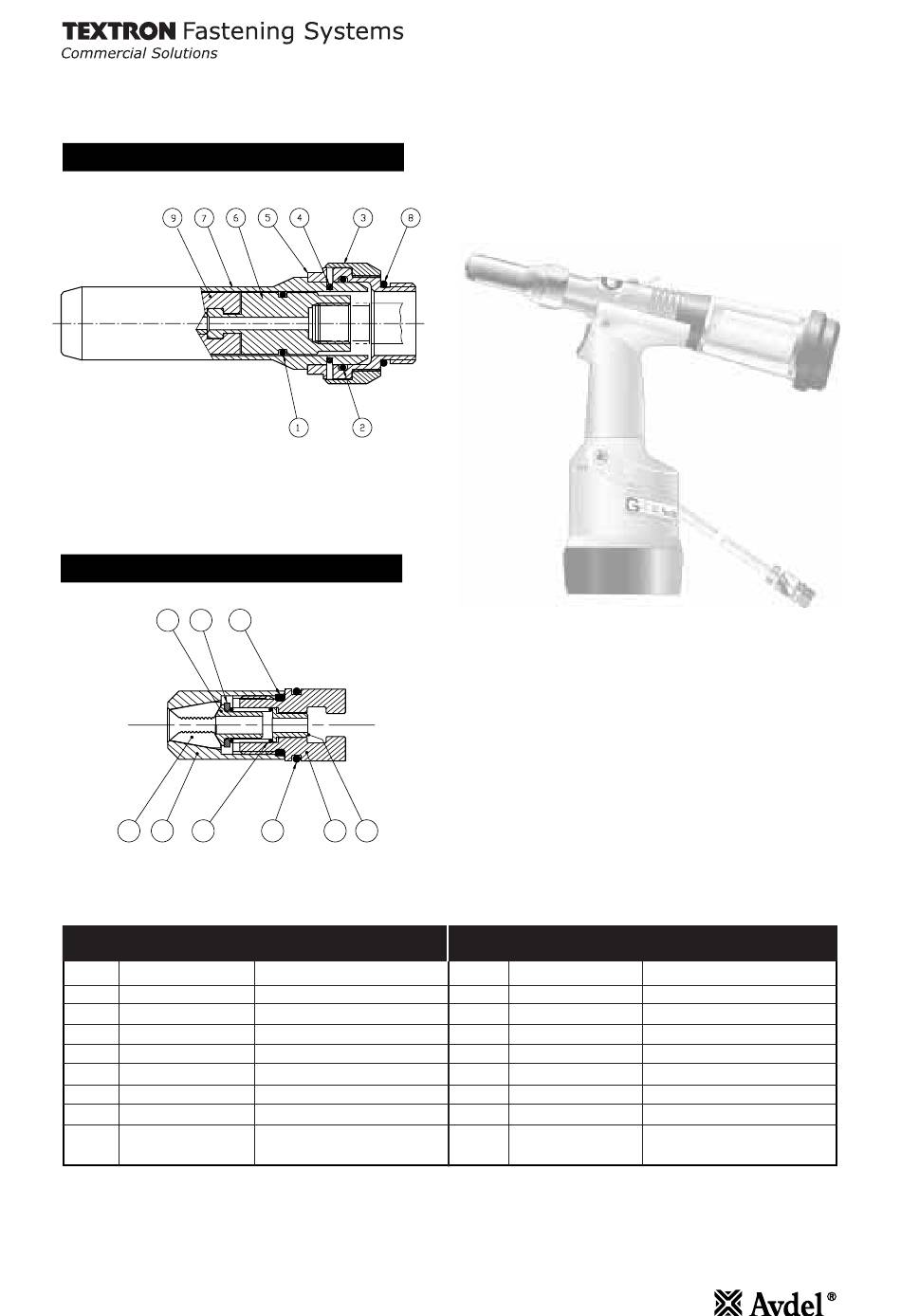

QUICK RELEASE NOSE ASSEMBLY 71210-20310
NOSE EQUIPMENT CARTRIDGE 71210-20320
14
12
15
10
11
13
QUICK RELEASE NOSE ASSEMBLY 71210-20310
1
07003-00277
2
07003-00342
3
71210-20311
4
71210-20312
5
71210-20313
6
71210-20314
7
71210-20316
8
07003-00349
9
71210-20320
Textron Fastening Systems Limited
Mundells, Welwyn Garden City, Hertfordshire AL7 1EZ United Kingdom
Telephone +44 (0) 1707 668668
16
17
18
'O' Ring
'O' Ring
Spring Cover
'U' Spring
Nose Case Adaptor
'T' Adaptor
Quick Release Nose Casing
'O' Ring
Nose Equipment Cartridge
(see items 10 to 18)
Facsimile +44 (0) 1707 338828
Quick Release Nose Equipment
NOSE EQUIPMENT CARTRIDGE 71210-20320
10
71210-15001
11
07340-00304
12
07003-00349
13
07498-004301
14
71210-05001
15
07498-04502
16
07003-00277
17
71210-20321
18
71210-20322
Genesis
®
G2
Jaw
Jaw Housing
'O' Ring
Spring
Buffer
Jaw Spreader
'O' Ring
Jaw Spreader Housing 'T'
Detent Sleeve
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Avdel Textron Genesis G2
Summary of Contents for Avdel Textron Genesis G2
- Page 1 Genesis ® Quick Release Nose Equipment QUICK RELEASE NOSE ASSEMBLY 71210-20310 NOSE EQUIPMENT CARTRIDGE 71210-20320 QUICK RELEASE NOSE ASSEMBLY 71210-20310 NOSE EQUIPMENT CARTRIDGE 71210-20320 07003-00277 'O' Ring 71210-15001 07003-00342 'O' Ring 07340-00304 Jaw Housing 71210-20311 Spring Cover 07003-00349 'O' Ring 71210-20312 'U' Spring 07498-004301...
- Page 2 Genesis ® Quick Release Nose Equipment TO ASSEMBLE QUICK RELEASE NOSE EQUIPMENT TO G2 TOOL (71210-02000) (Refer to 71210-02000s Drawing or G2 Instruction Manual.) Remove Jaw Spreader Housing (71210-02101). Replace with 'T' Adaptor (item 6) and 'O' Ring (item 1). Fully tighten 'T' Adaptor (item 6) onto Piston (71210-02121) before locking in position with Locknut (71210-02103).
