Roland VK-8 Midi Implementation Manual

MIDI Implementation

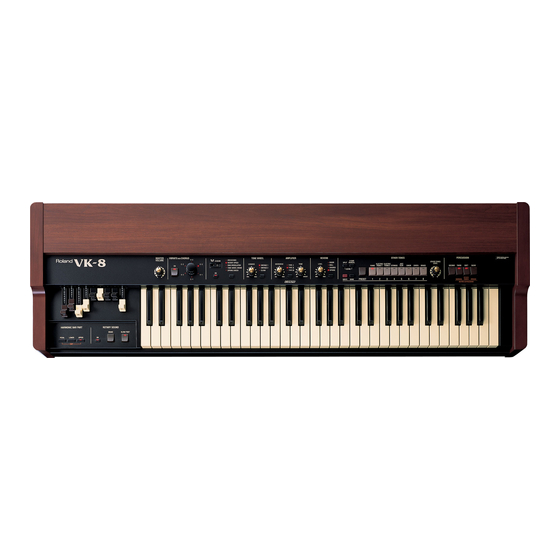

Model: VK-8 (Combo Organ)
Date: Dec. 1, 2001
Version: 1.00
1. Receive data
* The VK-8 has two MIDI IN connectors: KEYBOARD IN and PEDAL IN. If the SUB
KEYBOARD FUNCTION (p. 58) is ON, messages input to KEYBOARD IN will be
received as messages for the Lower part, regardless of their channel number. Messages
input to PEDAL IN will be received as messages for the Pedal part, regardless of their
channel number (Omni On).
* When the SUB KEYBOARD FUNCTION (p. 58) is OFF, MIDI messages will control each
part according to their MIDI channel number (Omni Off). At the factory settings, each
part is set to the following transmit/receive channels.
-----------------------
CONTROL | 1ch
UPPER ORGAN | 1ch
LOWER ORGAN | 3ch
PEDAL ORGAN | 2ch
OTHER TONES | 4ch
DRUMS | 10ch
SPRING SHOCK | 9ch
-----------------------
Channel Voice Messages
Note off
Status 2nd byte
8nH kkH
9nH kkH
n = MIDI channel number :
kk = note number :
vv = note off velocity :
* When the SUB KEYBOARD FUNCTION (p. 58) is ON, the input to the KEYBOARD IN
will be handled as messages for the LOWER PART, and the input to PEDAL IN will be
handled as messages for the PEDAL PART.
Note on
Status 2nd byte
9nH kkH
n = MIDI channel number:
kk = note number :
vv = note on velocity :
* When the SUB KEYBOARD FUNCTION (p. 58) is ON, the input to the KEYBOARD IN
will be handled as messages for the LOWER PART, and the input to PEDAL IN will be
handled as messages for the PEDAL PART.
Control Change
Modulation (Controller number 1)
Status 2nd byte
BnH 01H
n = MIDI channel number :
vv = modulation depth :
* Received only for the Other Tones Part.
Data Entry (Controller Number 6, 38)
Status 2nd byte
BnH 06H
BnH 26H
n = MIDI channel number :
mm,ll = the value of the parameter specified by RPN/NRPN
mm = upper byte (MSB), ll = lower byte (LSB)
Volume (Controller number 7)
Status 2nd byte
BnH 07H
n = MIDI channel number :
vv = volume :
* Received only for the Other Tones Part.
Panpot (Controller number 10)
Status 2nd byte
BnH 0AH
n = MIDI channel number:
vv = panpot:
* Received only for the Other Tones Part.
3rd byte
vvH
00H
0H - FH (ch.1 - ch.16)
00H - 7FH (0 - 127)
00H - 7FH (0 - 127)
3rd byte
vvH
0H - FH (ch.1 - ch.16)
00H - 7FH (0 - 127)
00H - 7FH (0 - 127)
3rd byte
vvH
0H - FH (ch.1 - ch.16)
00H - 7FH (0 - 127)
3rd byte
mmH
llH
0H - FH (ch.1 - ch.16)
3rd byte
vvH
0H - FH (ch.1 - ch.16)
00H - 7FH (0 - 127)
3rd byte
vvH
0H-FH (ch.1-ch.16)
00H-40H-7FH (Left-Center-Right)
Expression (Controller number 11)
Status 2nd byte
BnH 0BH
n = MIDI channel number :
vv = expression :
* If you want to control all of the Organ Parts, transmit data on the channel specified by
the CONTROL MIDI CH. setting (factory setting: channel 1). It is not possible to
separately control each part of the Organ Part.
* When the SUB KEYBOARD FUNCTION (p. 58) is ON, this has the same function as an
expression pedal connected to the VK-8's EXPRESSION PEDAL jack.
General Purpose Controller 1 (Controller number 16) (Other tones
glide)
Status 2nd byte
BnH 10H
n = MIDI channel number:
vv = control value :
* Received only for the Other Tones Part.
* Not received when MIDI GENERAL CONTROLLERS SWITCH (p. 53) is OFF.
General Purpose Controller 2 (Controller number 17) (Wheel Brake)
Status 2nd byte
BnH 11H
n = MIDI channel number:
vv = control value :
* When SUB KEYBOARD FUNCTION (p. 58) is OFF, this is received on the channel
specified for CONTROL MIDI CH. (p. 54) (factory setting: channel 1).
* Not received by the Other Tones part.
* Not received when MIDI GENERAL CONTROLLERS SWITCH (p. 53) is OFF.
Hold 1 (Controller number 64)
Status 2nd byte
BnH 40H
n = MIDI channel number :
vv = control value :
* When the SUB KEYBOARD FUNCTION (p. 58) is ON, this has same function as a hold
pedal connected to the VK-8's HOLD PEDAL jack.
Sound Controller 1-9 (Controller number 70-78) (Harmonic Bars)
Status 2nd byte
BnH ccH
n = MIDI channel number :
cc = control change number :
vv = control value :
* Receives harmonic bar values.
* Not received by the Other Tones part.
* When the SUB KEYBOARD FUNCTION (p. 58) is ON, the input to the KEYBOARD IN
will be handled as messages for the LOWER PART, and the input to PEDAL IN will be
handled as messages for the PEDAL PART.
* Not received when MIDI SOUND CONTROLLERS SWITCH (p. 53) is OFF.
cc |H.Bar Feet
----------+-------------------------------------
46H |16'
47H |5 1/3'
48H |8'
49H |4'
4AH |2 1/3'
4BH |2'
4CH |1 3/5'
4DH |1 1/3'
4EH |1'
* Control values and harmonic bars are related as follows.
vv |H.Bar Level
-------------+---------------------------------
00H - 0EH |0
0FH - 1CH |1
1DH - 2AH |2
2BH - 38H |3
39H - 47H |4
48H - 55H |5
56H - 63H |6
64H - 71H |7
72H - 7FH |8
RPN MSB/LSB (Controller number 100, 101)
Status 2nd byte
BnH 65H
BnH 64H
n = MIDI channel number: 0H - FH (ch.1 - 16)
mm = upper byte (MSB) of parameter number specified by RPN
ll = lower byte (LSB) of parameter number specified by RPN
3rd byte
vvH
0H - FH (ch.1 - ch.16)
00H - 7FH (0 - 127)
3rd byte
vvH
0H - FH (ch.1 - ch.16)
00H - 7FH (0 - 127) 0-63 = OFF, 64-127 = ON
3rd byte
vvH
0H - FH (ch.1 - ch.16)
00H - 7FH (0 - 127) 0-63 = OFF, 64-127 = ON
3rd byte
vvH
0H - FH (ch.1 - ch.16)
00H - 7FH (0 - 127) 0-63 = OFF, 64-127 = ON
3rd byte
vvH
0H - FH (ch.1 - ch.16)
46H - 4EH (70-78)
00H - 7FH (0 - 127)
3rd byte
mmH
llH
1
