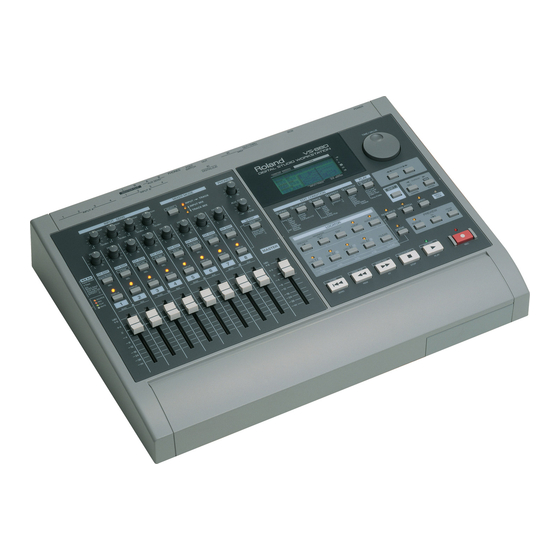

Roland VS-880 Supplemental Notes

Digital studio workstation
Hide thumbs Also See for VS-880:
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual See also: Owner's Manual
®ÂØÒňÎ
January 23, 1998
NOTE: This article was written in the Fall of 1996. Many features have been added to the VS-880 since that time.
Some of the procedures described here can be accomplished in an easier fashion by utilizing these newer
features. Most of these features were added in the V-Xpanded operating system upgrade and are described in
detail in the first chapter of the V-Xpanded Owner's Manual. The majority of this article remains relevant and
should prove to be helpful to any VS-880 user.
Over the past few months, I've had the opportunity to present clinics and workshops for many owners of Roland's
VS-880 hard disk recording system. There are tons of things you can do with it, and lots of ways to do them. The
hints and tips on the following pages make use of many of the less obvious features of the VS-880 that owners
h
ave told us they really love.
Many of these require the latest software which, as of early November '96, is version 1.073. Check the Internet
Connections section on page 87 for details about VS-880 Web sites, so you'll know where to search for info about
the most current operating system. A new operating system is scheduled to roll out in early '97.
I. Using Shift for Hidden Features & Added Speed
Here are some shift functions not documented on the front panel. These will help speed up your work on the VS-880.
HOLD SHIFT &
System
Tap
Effect
Parameter << and >>
Song
Scene
Vari Pitch
Undo
Scrub
Preview To and
From
The shift button can also be used to change the resolution of the Time/Value dial in almost any data-entry mode.
For instance, if you're selecting an effect type, the dial alone will increment/decrement the effect number by steps
of one, but by tens if used with the shift button. Here's how shift affects the dial resolution in various modes:
Mode
Bar
Beat
Marker
MTC
MTC FINE
NAMING
© 1997 Miller Freeman, Inc.
VS-880
®
®
digital studio workstation
VS-880 Hot Tips
AS SEEN IN KEYBOARD MAGAZINE
TO
change from internal sync to external
open the Tempo Map editing page
in Effect Edit mode, jump among Effect Selection, Effect Naming, and another
parameter
in Effect Edit mode, jump to first and last parameters in current effects algorithm block
in Play mode, flash Song name, Song Number, Sampling Rate, and Size
(in Mb) over a period of four seconds; great for use when copying or backing up a song
send all mixer settings out via MIDI; great for storing a snapshot or to initialize an
automation pass with your sequencer
access the Variable Pitch parameter
redo your last undo
access the Scrub Length parameter; use longer scrub lengths for difficult edits
open Preview Length parameter; note that you can't toggle between Scrub and Preview
Lengths, but must first select another mode
Without Shift
1 bar
1 beat
1 marker
1 frame
1/10 frame
1 character
VS-880 Hot Tips Keyboard Magazine Article
With Shift
10 bars
4 beats (approx.)
10 markers
10 frames
1/100 frame
10 character
Supplemental
Notes
Page 1 of 9
