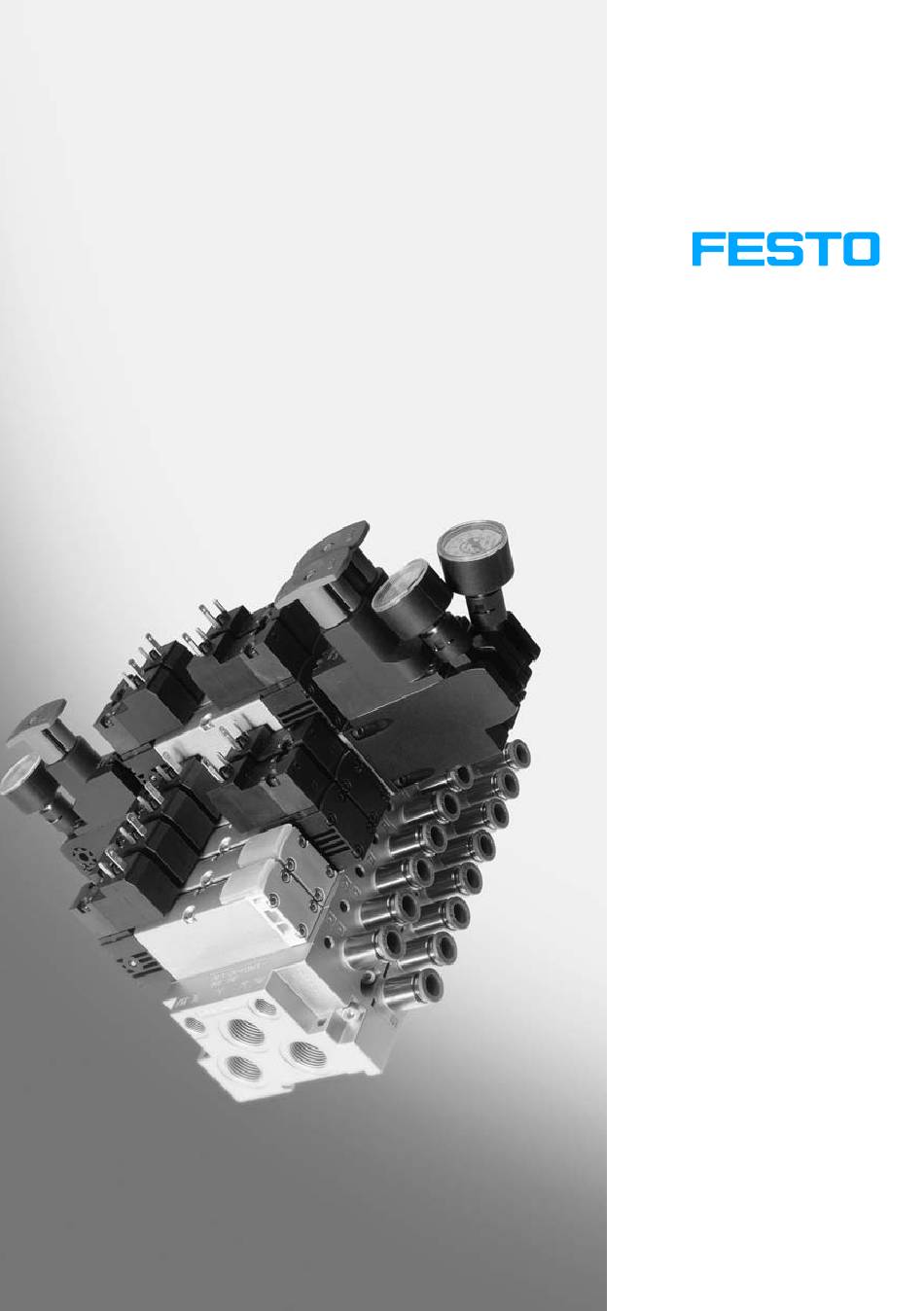

Valve manifold VTIA
Description
VTIA pneumatics
Valve manifold
type VTIA−...
with valves
of type
VSVA−B−...−R...
and
type VSVA−B−...−C1
Description
538 929
en 1003a
[752 193]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTIA Series and is the answer not in the manual?

Questions and answers

Related Manuals for Festo VTIA Series

Summary of Contents for Festo VTIA Series

  • Page 1 Valve manifold VTIA Description VTIA pneumatics Valve manifold type VTIA−... with valves of type VSVA−B−...−R... type VSVA−B−...−C1 Description 538 929 en 1003a [752 193]...
  • Page 3 ....... . . 538 929 E (Festo AG & Co. KG, D 73726 Esslingen, Federal Republic of Germany, 2010) Internet: http://www.festo.com E−mail:...
  • Page 4 Contents and general safety instructions Festo P.BE−VTIA−EN en 1003a...

  • Page 5: Table Of Contents

    ........3−16 Festo P.BE−VTIA−EN en 1003a...
  • Page 6 ........5−18 Festo P.BE−VTIA−EN en 1003a...
  • Page 7 ............C−1 Festo P.BE−VTIA−EN en 1003a...
  • Page 8 Contents and general safety instructions Festo P.BE−VTIA−EN en 1003a...

  • Page 9: Intended Use

    German Technical Control Board (TÜV), VDE) must also be observed. Target group This manual is intended exclusively for technicians trained in control and automation technology. Service Please consult your local Festo repair service if you have any technical problems. Festo P.BE−VTIA−EN en 1003a...

  • Page 10: Notes On The Use Of This Description

    Variants of the valve manifold VTIA Valve manifold VTIA with valves with common Valve manifold VTIA with valves with square connectors type VSVA−B−...−R... plugs (individual connection) type VSVA−B−...−C1 Tab. 0/1: Alternative connections of the valve manifold VTIA VIII Festo P.BE−VTIA−EN en 1003a...

  • Page 11: Important User Instructions

    ... means that failure to observe this instruction may result in material damage. The following pictogram marks passages in the text which describe activities with electrostatically sensitive devices: Electrostatically sensitive devices: Incorrect handling can result in damage to components. Festo P.BE−VTIA−EN en 1003a...
  • Page 12 Pictograms Information: Recommendations, tips and references to other sources of information Accessories: Information on necessary or useful accessories for the Festo product. Environment: Information on environmentally friendly use of Festo pro ducts. Text designations Bullet points indicate activities that may be carried out in ·...
  • Page 13 Valve manifold VTIA Valve manifold with pneu. port pattern to ISO 15407−1, which can be fitted with Festo valve types VSVA−B−...−R... and VSVA−B−...−C1. Vertical pressure shut−off Plate for blocking the pressure supply of a valve at the relevant valve plate position.
  • Page 14 Contents and general safety instructions Festo P.BE−VTIA−EN en 1003a...

  • Page 15: Overview Of Components

    Overview of components Chapter 1 1−1 Festo P.BE−VTIA−EN en 1003a...
  • Page 16 Description of components ....... . 1−5 1−2 Festo P.BE−VTIA−EN en 1003a...
  • Page 17 This chapter provides the following information on the valve manifold VTIA: The maximum number of valve positions The connection variants and components of the valve manifold The labelling of the pneumatic components Connection, display and operating elements 1−3 Festo P.BE−VTIA−EN en 1003a...

  • Page 18: The Valve Manifold Vtia

    1. Overview of components The valve manifold VTIA Festo assists you in solving your automation tasks at machine level with valve manifold VTIA. The modular structure of the valve manifold enables you to match it optimally in your ma chine or system.

  • Page 19: Description Of Components

    DC 12 V, DC 24 V, AC 24 V, AC 110 V and AC 230 V. Tab. 1/1: Alternative electrical connections of the valve manifold VTIA 1.1.2 Description of components The valve manifold VTIA consists of the following pneumatic components: 1−5 Festo P.BE−VTIA−EN en 1003a...
  • Page 20 Blanking plate for valve position Vertical pressure shut−off plate (optional) (optional) Valves Vertical pressure supply plate (optional) Intermediate plate (optional) Manifold sub−bases Pressure regulator plate (optional) Fig. 1/1: Pneumatic components of the valve manifold VTIA 1−6 Festo P.BE−VTIA−EN en 1003a...
  • Page 21 3/2−way valves. You can identify the valve function with the aid of the following table. In the sales documenta tion and in the Festo Configurator the valves are marked with an ID code. Identifier...
  • Page 22 The type of pilot control (internal or external pilot air) de pends on the type of valve. Valves for operation with external pilot air are identified with a Z in the type code, e.g. VSVA−B−T32C−AZH−A1−1−R2. 1−8 Festo P.BE−VTIA−EN en 1003a...
  • Page 23 Supply duct (1) Exhaust duct (3) Exhaust duct (5) In the valve manifold VTIA, external pilot air is fed in via the end plates. Pressure zone separation of pilot ducts 12 and 14 is not possible. 1−9 Festo P.BE−VTIA−EN en 1003a...
  • Page 24 You can mount further pneumatic components in each loca tion between the manifold sub−base and the valve. This verti cal stacking will enable you to implement certain additional effects as desired. The following diagram shows the available components: 1−10 Festo P.BE−VTIA−EN en 1003a...
  • Page 25 Manifold sub−base type NAW−... 1) For instructions on installing the vertical stacking components, see Chapter 3 Tab. 1/3: Components of the pneumatic module of the valve manifold VTIA 1−11 Festo P.BE−VTIA−EN en 1003a...
  • Page 26 P pressure regulating valve with a regulation range 10 bar. You can identify the vertical stacking components with the aid of the following table. In the sales documentation and in the Festo Configurator the valves are marked with an ID code. Label in the...
  • Page 27 Application example: An equal initial pressure is required at working lines 2 and 4. A lower initial pressure (e.g. 3 bar) is required than the operating pressure present at the valve manifold (e.g. 8 bar). 1−13 Festo P.BE−VTIA−EN en 1003a...
  • Page 28 5. Port 2 (B) Port 4 (A) Duct 3 (exhaust) Duct 5 (exhaust) Duct 1 (supply air) Fig. 1/3: AB pressure regulating valve 1−14 Festo P.BE−VTIA−EN en 1003a...
  • Page 29 2 of the manifold sub−base. The exhaust air is passed via duct 4 in the pressure regulator plate and split there to ducts 3 and 5 and exhausted. 1−15 Festo P.BE−VTIA−EN en 1003a...
  • Page 30 The operating pressure is always present on the pressure regulating valve because regulating takes place upstream of the valve, i.e. the regulating valve can always be set. On the AB pressure regulating valve, the valve must switch for this. 1−16 Festo P.BE−VTIA−EN en 1003a...
  • Page 31 2 and 4. When fast exhausting is required. If the pressure regulating valve is always to be set for both sides. For instructions on installing this pressure regulating valve, see chapter 3.3.6. 1−17 Festo P.BE−VTIA−EN en 1003a...
  • Page 32 Exhaust port (5) Valves" Pilot exhaust air port (12) for ducted exhausting of the pilot exhaust air (not ISO−compliant) for valves confi gured accordingly. Fig. 1/5: Pneumatic connection and control elements of the valve manifold VTIA 1−18 Festo P.BE−VTIA−EN en 1003a...
  • Page 33 Supply port 1 (individual operating snap−in locking pressure for one valve position) Fig. 1/6: Control and connection elements of the components for vertical stacking The valve manifold with valves with common connectors con sist of the following electrical components: 1−19 Festo P.BE−VTIA−EN en 1003a...
  • Page 34 The valve manifold with valves with square plugs consists of the following electrical components: Electrical connection 12 per DIN EN 175301−803 Electrical connection 14 per DIN EN 175301−803 Fig. 1/8: Electrical components of the valve manifold VTIA with valves with square plugs 1−20 Festo P.BE−VTIA−EN en 1003a...
  • Page 35 Signal status displays (yellow LEDs) of cable KMEB−1−24−...−LED or the pilot control KMEB−3−...−LED Square plug per DIN EN 175301−803 on valves type VSVA−B−...−C1 Fig. 1/9: Electrical connection and display components of the valve manifold VTIA 1−21 Festo P.BE−VTIA−EN en 1003a...
  • Page 36 1. Overview of components 1−22 Festo P.BE−VTIA−EN en 1003a...

  • Page 37: Mounting

    Mounting Chapter 2 2−1 Festo P.BE−VTIA−EN en 1003a...

  • Page 38: Mounting The Inscription Labels (Optional)

    ......2−9 Mounting the inscription labels (optional) ......2−12 2−2 Festo P.BE−VTIA−EN en 1003a...

  • Page 39: Mounting

    This chapter describes how to mount and dismantle: The complete valve manifold (H−rail or wall mounting) The inscription label holders Additional information Special information on replacing or adding pneumatic compo nents can be found in chapter 5. 2−3 Festo P.BE−VTIA−EN en 1003a...

  • Page 40: General Instructions On Assembly And Dismantling

    The operating and load voltage supplies. Note Handle all modules and components of the valve manifold with great care. Note especially the following: The specified torques must be complied with. Electrostatically sensitive devices. Therefore, do not touch any contact surfaces. 2−4 Festo P.BE−VTIA−EN en 1003a...

  • Page 41: Mounting Variants

    Wall mounting The end plates and the manifold sub−ba ses have holes for wall mounting. For wall−mounting, Festo recommends using the holes in every fourth manifold sub−base in addition to the holes in the end plates (see also the specifications on vibrations and shock in Appendix A, Tab.

  • Page 42: Mounting/Dismounting On An H−Rail

    1 Hole for H−rail clamping units Tab. 2/2: Holes for H−rail clamping unit Mounting Proceed as follows: 1. Make sure that the mounting surface can support the weight of the valve manifold (for weights, see Appendix A, Tab. A/4). 2−6 Festo P.BE−VTIA−EN en 1003a...
  • Page 43 Retaining screw of the H−rail clamping unit Fig. 2/1: H−rail mounting of the valve manifold VTIA 7. Fasten the valve manifold VTIA against tilting or sliding by tightening the retaining screw to 1.3 Nm. 2−7 Festo P.BE−VTIA−EN en 1003a...
  • Page 44 2. Mounting H−rail Clamping component of the H−rail clamping unit Fig. 2/2: Rear view: H−rail mounting 2−8 Festo P.BE−VTIA−EN en 1003a...

  • Page 45: Mounting/Dismantling From A Wall

    Retaining screw of the H−rail clamping unit Fig. 2/3: Dismantling the valve manifold VTIA from the H−rail 2.2.2 Mounting/dismantling from a wall The end plates and the manifold sub−bases have holes for wall mounting. 2−9 Festo P.BE−VTIA−EN en 1003a...
  • Page 46 2. Drill mounting holes in the mounting surface. Note If wall mounting the valve terminal, Festo recommends: In addition to the holes in the end plates, use the holes in every fourth manifold sub−base. Observe also the specifications on vibration and shock in Appendix A.
  • Page 47 1. Secure a suspended mounted valve manifold to prevent it falling down before you loosen it from the mounting sur face. 2. Loosen the mounting screws (see Tab. 2/3). 3. Remove the valve manifold from the mounting surface. 2−11 Festo P.BE−VTIA−EN en 1003a...

  • Page 48: Mounting The Inscription Labels (Optional)

    Clip the inscription labels to the recesses of the valve, pilot control, or (plug) socket (see figure). Valve with common (Plug) socket KMEB−1−... and connector type KMEB−3−... for valves with VSVA−B−...−R... square plugs Type VSVA−B−...−C1 Fig. 2/4: Mounting the inscription labels 2−12 Festo P.BE−VTIA−EN en 1003a...
  • Page 49 Installation Chapter 3 3−1 Festo P.BE−VTIA−EN en 1003a...
  • Page 50 ........3−31 3−2 Festo P.BE−VTIA−EN en 1003a...

  • Page 51: Installation

    Instructions on operating the valve manifolds with pres sure zones Instructions on operating the valve manifold with revers ible 2x3/2−way valves Fitting the QS fittings Connecting the power supply Earthing the valve manifold 3−3 Festo P.BE−VTIA−EN en 1003a...

  • Page 52: Compressed Air Preparation

    3.1.2 Operation with lubricated compressed air Operate system equipment with unlubricated compressed air if possible. This is better for the environment. Festo pneu matic valves and actuators have been designed so that, if used as intended, they will not require additional lubrication and will still achieve a long service life.
  • Page 53 Incorrect additional oil and too much residual oil content in the compressed air will reduce the service life of the valve manifold. Use Festo special oil OFSW−32 or the other oils listed in the Festo catalogue (as per DIN 51524−HLP32, basic viscosity 32 CST at 40 °C).
  • Page 54 Another indicator of over−lubrication is the coloration or the condition of the exhaust air silencer. A distinctly yellow colouring of the filter element or drops of oil on the silencer indicate that the lubricator setting is too high. 3−6 Festo P.BE−VTIA−EN en 1003a...

  • Page 55: General Notes On Connecting The Tubing

    2. Pull the locking ring 1 over the tube coupling or tighten the clamping screw 2. 3. For reasons of clarity, bundle the tubing together with: Tubing straps Multiple hose holders 3−7 Festo P.BE−VTIA−EN en 1003a...
  • Page 56 1. Mark all pneumatic tubing. 2. Press down the locking ring of the fitting 1 e.g. with a screwdriver or the Festo QSO loosening tool or loosen the clamping screw 2 of the fitting. 3. Remove the tubing from the fitting.
  • Page 57 3. Installation Fig. 3/2: Disconnecting the tubing 3−9 Festo P.BE−VTIA−EN en 1003a...

  • Page 58: Connecting The Valve Manifold Vtia

    Valve manifolds VTIA with size 18 mm and 26 mm valves can also be supplied via the intermediate plate (see 5.3.3. Replac ing the manifold sub−base, intermediate plates or end plates). 3−10 Festo P.BE−VTIA−EN en 1003a...

  • Page 59: Ducted Exhaust Of Control Air And Venting Air

    3.3.1 Ducted exhaust of control air and venting air As per standard ISO 15407−1, ports 12 and 14 are intended for supplying the valve manifold with external pilot air. Festo valves for the valve manifold VTIA require pilot air supply via duct 14 only.

  • Page 60: Pilot Control (Pilot Air)

    Valves for external pilot air are identified with the indica · tor Z in the type code. Festo recommends using valves with the same pilot con · trol variant on the valve manifold VTIA (either internal or external pilot air).
  • Page 61 Valve position with vertical pressure shut−off plate: In this valve position, duct 14 is blocked by the vertical · pressure shut−off plate (see Appendix B, Tab. B/10). The valve is supplied with internal pilot air. 3−13 Festo P.BE−VTIA−EN en 1003a...

  • Page 62: Valve Manifold Vtia With Pressure Zone Separation

    The middle pressure zone above the intermediate plate The right outer pressure zone above the right end plate External pilot air can be supplied for the entire valve manifold via port 14 on the left or right end plate. 3−14 Festo P.BE−VTIA−EN en 1003a...
  • Page 63 Supply of pressure zone 1 via the left Supply of pressure zone 3 via the right end plate end plate Fig. 3/3: Example of valve manifold VTIA with 3 pressure zones and pilot control with external pilot air 3−15 Festo P.BE−VTIA−EN en 1003a...

  • Page 64: Reversibly Operated Valve Manifold Vtia

    Duct 12 is therefore no longer available for removing the ducted pilot air and venting air. Valves which are configured for exhausting via duct 12 can then no longer switch (see Chapter 5.4.1). 3−16 Festo P.BE−VTIA−EN en 1003a...

  • Page 65: Operating The Valve Manifold Vtia With Reversible Pressure Regulators

    1 and the exhaust is vented via ducts 3 and 5. 3.3.7 Setting the pressure regulating valve The pressure regulator plates can be set in two ways: conveniently using the adjusting knob using the socket head screw in the adjusting knob 3−17 Festo P.BE−VTIA−EN en 1003a...
  • Page 66 4. Adjusting knob Adjusting knob in the freewheel level Adjusting knob in the setting level Adjusting knob in the locking level Fig. 3/4: Setting the pressure regulator plates with the aid of the adjusting knob 3−18 Festo P.BE−VTIA−EN en 1003a...
  • Page 67 Flow diagrams of the pressure regulating plates" in Appendix A) by turning the adjusting screw. Adjusting screw, internal hexagon socket (size 2.0) Fig. 3/5: Setting the pressure regulator plates with the aid of the adjusting screw 3−19 Festo P.BE−VTIA−EN en 1003a...

  • Page 68: Vacuum/Low Pressure Operation

    3 and 5 in a separate pressure zone with vacuum or low pressure. 3.3.9 Connecting the pneumatic lines Note Use blanking plugs to seal all ports not required for the · functioning of the valve manifold. 3−20 Festo P.BE−VTIA−EN en 1003a...
  • Page 69 Complies with ISO standard: Pilot air (external pilot air) Supply air for the pneumatic springs of the rev. 2x3/2−way valves Alternative, does not comply with ISO stan dard: Ducted pilot exhaust of the pilot control 3−21 Festo P.BE−VTIA−EN en 1003a...
  • Page 70 2) The external pilot air is supplied as standard via port 14. 3) Requirement: The valve manifold must be fitted with Festo valves (except reversible 2x3/2−way valves) 4) Note the following if you wish to exhaust the pilot air ducted.
  • Page 71 Note: Position of the pneumatic ports on the right end plate equivalent to the left end plate Fig. 3/6: Position of the pneumatic ports Observe the following instructions on installing the pneu matic components. Only then can you guarantee trouble−free operation. 3−23 Festo P.BE−VTIA−EN en 1003a...
  • Page 72 Valve manifold 1 Central control exhaust line 82/84 Central exhaust line 3/5 Valve manifold 2 Exhaust line 5 Pilot exhaust line 12 (82/84) Exhaust line 3 Fig. 3/7: Centrally ducted exhaust air with non−return valves 3−24 Festo P.BE−VTIA−EN en 1003a...

  • Page 73: Connecting The Electric Cables

    EMERGENCY STOP (e.g. switching off the operating voltage for the valves and output modules, switching off the com pressed air). 3−25 Festo P.BE−VTIA−EN en 1003a...
  • Page 74 3−pin AC 110 V AC 230 V Note Use cables from the Festo range for connecting the valve terminal. This guarantees compliance with protection class IP 65. Use a uniform method of control. Preferably, all control signals should be positive switching (1−switching), otherwise all control signals negative−switching...
  • Page 75 1) Solenoid coils for DC 12 V, DC 24 V and AC 24 V voltage 2) Pin allocation according to DIN EN 175301−803 3) For using the socket with cable according to Festo accessories. Tab. 3/5: Pin allocation for electric square plug Square plug (3−pin)
  • Page 76 0 V or 24 V Signal coil 14 Solenoid coil 14 1) For using the socket with cable according to Festo accessories. Designation of the wire colours as per DIN/IEC 757 2) Connect 0 V with positive−switching control signals, 24 V with negative−switching control signals.
  • Page 77 0 V or 24 V Signal coil 14 Solenoid coil 14 1) For using the socket with cable according to Festo accessories. 2) Only for a socket with cable of type SIM−M12−5... 3) Connect 0 V with positive−switching control signals, 24 V with negative−switching control signals.
  • Page 78 3. Installation Earthing the valve manifold, e.g. via a mounting hole in the end plate Fig. 3/8: Earthing the valve manifold VTIA 3−30 Festo P.BE−VTIA−EN en 1003a...

  • Page 79: Address Assignment Of The Valves

    Solenoid coil 14 occupies the lower−value address Solenoid coil 12 occupies the higher−value address. Addresses of the solenoid coils 12 Addresses of the solenoid coils 14 Fig. 3/9: Sample address allocation for valve manifold VTIA 3−31 Festo P.BE−VTIA−EN en 1003a...
  • Page 80 3. Installation 3−32 Festo P.BE−VTIA−EN en 1003a...
  • Page 81 Comissioning Chapter 4 4−1 Festo P.BE−VTIA−EN en 1003a...
  • Page 82 ........4−13 4.5.2 Operating states of the pneumatic system ....4−14 4−2 Festo P.BE−VTIA−EN en 1003a...

  • Page 83: Comissioning

    Instructions on building up pressure in the overall supply Operating the manual overrides Checking the valves and the valve−actuator combination The assignment of LEDs and manual overrides to the solenoid coils Function impairments Operating states of the pneumatic system 4−3 Festo P.BE−VTIA−EN en 1003a...

  • Page 84: General Information

    Operate the valve manifold with external pilot air corre · sponding to the pressure specified in Appendix A, Fig. A/1 Fig. A/4. Branch the pilot air in front of the safety start−up valve (see fig.). 4−4 Festo P.BE−VTIA−EN en 1003a...
  • Page 85 Externally supplied pilot air, branched upstream of the soft−start valve Soft−start valve (slow build up in pressure of complete supply) Fig. 4/1: Example of valve−cylinder combination with grad ual pressure build−up of the overall supply 4−5 Festo P.BE−VTIA−EN en 1003a...

  • Page 86: Manual Override

    You only need to switch on the compressed air supply. The non−detenting MO is designed such that is automatically reset by spring force after actuation. The assignment of the manual overrides to the solenoid coils is as follows: 4−6 Festo P.BE−VTIA−EN en 1003a...
  • Page 87 4. Comissioning Manual override for solenoid coils 12 Manual override for solenoid coils 14 Fig. 4/2: Position of the manual overrides on the valve manifold VTIA (top view) 4−7 Festo P.BE−VTIA−EN en 1003a...

  • Page 88: Checking The Valves And The Valve/Actuator Combination

    · coils from the relevant connections on the valves. This prevents accidental actuation of the solenoid coils. Proceed as follows: Warning Before testing the valve/actuator combination: make sure that nobody is in the danger zone. 4−8 Festo P.BE−VTIA−EN en 1003a...
  • Page 89 Use a screwdriver (blade width max. 4 mm) to actuate · the manual override. Actuate the manual override with a max. of 25 N only. · 3. Switch off the compressed air supply after testing the valves. 4−9 Festo P.BE−VTIA−EN en 1003a...
  • Page 90 · (the spring resets tion (not with the plunger of the double−solenoid manual override to valve the initial position). (identifier B52 / D52)) Tab. 4/3: Non−detenting actuation of the manual override 4−10 Festo P.BE−VTIA−EN en 1003a...
  • Page 91 Cable with socket type KMEB−...LED LED and manual override for valve so lenoid coil 12 Valve with common connector Type VSVA−B...−R... Fig. 4/3: The assignment of LEDs and manual overrides to the solenoid coils of the valve manifold VTIA 4−11 Festo P.BE−VTIA−EN en 1003a...
  • Page 92 Switching position of the Meaning valve Dark Normal position logical 0 (signal not applied) Lights up Switching position logical 1 (signal is present) yellow Normal position Tab. 4/4: Meaning of the LED display (valve manifold VTIA) 4−12 Festo P.BE−VTIA−EN en 1003a...

  • Page 93: Troubleshooting

    (if necessary set as a factor of the operating pressure, see Chapter 3) Servicing required · Tab. 4/5: Function impairment of the pneumatic system 4−13 Festo P.BE−VTIA−EN en 1003a...

  • Page 94: Operating States Of The Pneumatic System

    If control signals are present, the EMERGENCY STOP pilot air must be applied immediately after being switched on with at least the minimum pressure specified in Appendix A, Fig. A/1 Fig. A/4. Tab. 4/6: Pneumatic operating states 4−14 Festo P.BE−VTIA−EN en 1003a...
  • Page 95 Conversion and maintenance Chapter 5 5−1 Festo P.BE−VTIA−EN en 1003a...
  • Page 96 ........5−18 5−2 Festo P.BE−VTIA−EN en 1003a...

  • Page 97: Conversion And Maintenance

    Dismantling and mounting the manifold sub−bases, inter mediate plate and the end plates. The following activities are also described: Adding pressure zones Converting the valve manifold to ducted pilot and venting air. 5−3 Festo P.BE−VTIA−EN en 1003a...

  • Page 98: General Preventive Action

    Fittings must be mounted free of offset and mechanical · tension. Check the seals for damage (IP 65). · The contact surfaces must be dry and clean (sealing · effect, avoid leakage and contact errors). 5−4 Festo P.BE−VTIA−EN en 1003a...

  • Page 99: Dismantling The Valve Manifold

    Pull the plug out. · Tab. 5/2: Disconnecting the electrical connections Disconnecting the pneumatic connections Chapter 3 describes how to disconnect the pneumatic ports. Dismantling the valve manifold Chapter 2 describes how to dismantle the valve manifold. 5−5 Festo P.BE−VTIA−EN en 1003a...

  • Page 100: Replacing Valve Manifold Components

    · move the components from the manifold sub−base (see fig.). Fig. 5/1: Removing valves or cover plates Mounting Proceed as follows: 1. Make sure the seal is not damaged. Replace seals if they are damaged. 5−6 Festo P.BE−VTIA−EN en 1003a...

  • Page 101: Replacing/Adding Components For Vertical Stacking

    T32C−A, T32H−A, T32U−A) with reversible pressure regula tor plates (identifier R5−..., R6−..., R7−...). If this combination is used, the pneumatic spring of the valves does not func tion. The valves cannot return from the switching position to the neutral position. 5−7 Festo P.BE−VTIA−EN en 1003a...
  • Page 102 The following component sequence is recommended for valve positions with vertical stacking: Valve Optional pressure regulator plate Optional flow control plate Optional vertical pressure shut−off plate Optional vertical pressure supply plate Manifold sub−base Fig. 5/2: Recommended sequence of valve position components 5−8 Festo P.BE−VTIA−EN en 1003a...
  • Page 103 1. Check the seals for damage. Replace the seals if they are damaged. 2. When mounting the valve: Insert the seal between the valve and the vertical stacking component in accordance with the required exhaust air variant (see Section 5.4.1) 5−9 Festo P.BE−VTIA−EN en 1003a...
  • Page 104 1 Hexagon socket wrench 1 Hexagon socket wrench Width across flats 2.5 Width across flats 3 2 Hexagon socket wrench 2 Hexagon socket wrench Width across flats 2 Width across flats 2.5 Tab. 5/3: Vertical stacking 5−10 Festo P.BE−VTIA−EN en 1003a...

  • Page 105: Replacing Manifold Sub−Bases Or End Plates

    (see this Chapter Dismantling the valve manifold VTIA"). 2. Place the valve manifold on a flat working surface. 3. Loosen and remove the screws of the component (mani fold sub−base or end plate) you wish to dismantle (see Fig. 5/3). 5−11 Festo P.BE−VTIA−EN en 1003a...
  • Page 106 2. Set the seal in the recess of the manifold sub−base or the end plate. 3. If necessary set type NSC... isolating discs into the corres− ponding ducts to form pressure zones (see Section 5.4.2). 5−12 Festo P.BE−VTIA−EN en 1003a...
  • Page 107 5. Conversion and maintenance Seal Interlinking blocks Fig. 5/4: Mounting manifold sub−bases Left end plate Seal Manifold sub−base Fig. 5/5: Mounting end plates 5−13 Festo P.BE−VTIA−EN en 1003a...
  • Page 108 5. Mount the valve manifold onto the mounting surface (see Chapter 2 Mounting, Wall mounting" or H−rail mounting"). 6. Then complete the pneumatic ports and electrical connec tions (see Chapter 3 Installation, Connecting the valve manifold VTIA"). 5−14 Festo P.BE−VTIA−EN en 1003a...

  • Page 109: Conversion Of The Valve Manifold Vtia

    2. Use an external hexagon wrench to loosen the retaining screws of all valves. Remove the valves from the manifold sub−bases (see Fig. 5/1). 3. Check the exhaust variant for which the valve manifold VTIA has been pre−assembled. 5−15 Festo P.BE−VTIA−EN en 1003a...
  • Page 110 4. Turn all valve seals according to the desired exhaust vari ant (see Fig. 5/6). Inspection window at control side 12 The seal is visible in the inspection window on control side 14 Designation label Fig. 5/6: Turning the valve seal 5−16 Festo P.BE−VTIA−EN en 1003a...

  • Page 111: Conversion Of The Valve Manifold Vtia To Two Or Three Pressure Zones

    2. Place the valve manifold on a flat working surface. 3. Loosen the manifold sub−base at the point where the isolating discs for duct separation are to be inserted (see Section 5.3.3). Mounting Proceed as follows: 1. Set the seal into the manifold sub−base. 5−17 Festo P.BE−VTIA−EN en 1003a...

  • Page 112: Adding Valve Positions

    (see Chapter 3, Section 3.3). 5.4.3 Adding valve positions You can easily adapt the valve manifold VTIA to the require ments of your machine or systemby adding valve positions. For extension you will require: 5−18 Festo P.BE−VTIA−EN en 1003a...
  • Page 113 3. Mount the valve manifolds onto the mounting surface (see Chapter 2 Mounting, Wall mounting" or H−rail mounting"). 4. Then complete the pneumatic ports and electrical connec tions (see Chapter 3 Installation, Connecting the valve manifold VTIA"). 5−19 Festo P.BE−VTIA−EN en 1003a...
  • Page 114 5. Conversion and maintenance 5−20 Festo P.BE−VTIA−EN en 1003a...
  • Page 115 Technical Appendix Appendix A A−1 Festo P.BE−VTIA−EN en 1003a...
  • Page 116 ..........A−16 A−2 Festo P.BE−VTIA−EN en 1003a...
  • Page 117 −5 ... + 50 Medium −5 ... + 50 Protection class IP 65 per DIN 60 529 (with cable from Festo accessories) NEMA 4 per DIN EN 60529 Relative air humidity 90% at 40 Corrosion protection CRC 0 (per FN940070)
  • Page 118 5 shocks per direction 0.35 mm travel at 10−60 Hz; ±30 g at 11 ms −−−−− 5 g acceleration at 60−150 Hz duration, 5 shocks per direction Tab. A/3: Values for vibration and shock as per DIN/IEC68 A−4 Festo P.BE−VTIA−EN en 1003a...
  • Page 119 320 g Per flow control plate 146 g 201 g Per vertical pressure supply plate 212 g 286 g Per vertical pressure shut−off plate Tab. A/4: General technical data of the valve manifold VTIA (continued) A−5 Festo P.BE−VTIA−EN en 1003a...
  • Page 120 2x3/2−way valves with ID codes: −0.9 10 bar P, Q and R): Pilot pressure at connection 14: see diagram Fig. A/3 or Fig. A/4 Manual override Non−detenting Tab. A/5: Medium and pressure range of valve manifold VTIA A−6 Festo P.BE−VTIA−EN en 1003a...
  • Page 121 Operating pressure at port 1 [bar] Fig. A/2: Diagram: Required pilot air of external control air for 5/2− and 5/3−way valves (ID code J, D, M, O, G, E and B) A−7 Festo P.BE−VTIA−EN en 1003a...
  • Page 122 1 [bar] Fig. A/4: Diagram: Required pilot air of external control air for 5/2− and 5/3 and revers ible 3/2−way valves (ID code J, D, M, O, G, E, B, P, Q and R) A−8 Festo P.BE−VTIA−EN en 1003a...
  • Page 123 (P53C−M) 1000 1400 exhausted/pressurized (P53E−M / 1000 (700) 1400 (1000) P53U−M) 1) Identifier of the valve in the type code 2) Values for the mid−position are quoted in brackets Tab. A/6: Nominal flow rates A−9 Festo P.BE−VTIA−EN en 1003a...
  • Page 124 5/2−way, monostable, mech. spring 26 / B52 / D52 5/2−way, double−solenoid / 18 −−− P53U−M / P53C−M / P53E−M 5/3−way 23 / 20 1) Measuring method 0 − 10%, as per FN 942032 Tab. A/7: Valve switching times A−10 Festo P.BE−VTIA−EN en 1003a...
  • Page 125 6 bar regulator Flow rate Characteristic curve of the 10 bar regulator qn [l/min] Fig. A/6: Diagram: Flow as a factor of the output pressure for P−pressure regulating valve, size 26 mm (identifier R1−...) A−11 Festo P.BE−VTIA−EN en 1003a...
  • Page 126 10 bar regulator qn [l/min] Fig. A/8: Diagram: Flow as a factor of the initial pressure for A, B and AB pressure regulating valve, size 26 mm (identifier R2−..., R3−... and R4−...) A−12 Festo P.BE−VTIA−EN en 1003a...
  • Page 127 6 bar regulator Flow rate Characteristic curve of the 10 bar regulator qn [l/min] Fig. A/10: Diagram: Flow as a factor of the initial pressure for reversible AB−pressure regulating valve, size 26 mm (identifier R5−...) A−13 Festo P.BE−VTIA−EN en 1003a...
  • Page 128 26 mm Rotations of the adjusting screw Characteristic curve of flow control plate, size 18 mm) Fig. A/11: Diagram: Flow as a factor of restriction (throttle plate identifier F1B1) A−14 Festo P.BE−VTIA−EN en 1003a...
  • Page 129 Electromagnetic compatibility (EMC) Emitted interference and resistance to See declaration of conformity (www.festo.com) interference 1) Rated value, protected against incorrect polarity (permitted tolerance) 2) For control voltages of AC 110 V or AC 230 V the protective earth conductor at the connection must be connected to the protective earth.
  • Page 130 A. Technical Appendix Note You can configure the valve manifold with a maximum of 16 valves. The maximum number of controllable sole noid coils is therefore restricted to 32 addresses. Festo accessories www.festo.com/catalogue A−16 Festo P.BE−VTIA−EN en 1003a...
  • Page 131 Supplementary overview of components Appendix B B−1 Festo P.BE−VTIA−EN en 1003a...
  • Page 132 B.1.3 Vertical stacking components ......B−10 B−2 Festo P.BE−VTIA−EN en 1003a...
  • Page 133 ID code: H Function: 2x3/2−way valves Monostable Control side 14 normally closed Control side 12 normally open ID code: N Function: 2x3/2−way valves Monostable 2x normally open Tab. B/1: 2x3/2−way valves (internal pilot air supply) B−3 Festo P.BE−VTIA−EN en 1003a...
  • Page 134 One monostable 5/2−way valve Reset via mechanical spring NOTE: The number of addresses which are occupied by this valve depends on the type of manifold sub− base (see Chapter 3.4). Tab. B/2: 5/2−way valves (internal pilot air supply) B−4 Festo P.BE−VTIA−EN en 1003a...
  • Page 135 5/3−way mid−position valves with internal pilot air supply ID code: R Function: 5/3−way valve Mid−position closed ID code: E Function: 5/3−way valve Mid−position exhausted ID code: B Function: 5/3−way valve Mid−position pressurized Tab. B/3: 5/3−way mid−position valves (internal pilot air supply) B−5 Festo P.BE−VTIA−EN en 1003a...
  • Page 136 ID code: H Function: 2x3/2−way valves Monostable Control side 14 normally closed Control side 12 normally open ID code: N Function: 2 single−solenoid 2x3/2−way valves 2x normally open Tab. B/4: 2x3/2−way valves (external pilot air supply) B−6 Festo P.BE−VTIA−EN en 1003a...
  • Page 137 ID code: Q Function: 2x3/2−way valves Reversible Monostable Normally closed ID code: R Function: 2x3/2−way valves Reversible Monostable Control side 14 normally closed Control side 12 normally open Tab. B/5: 2x3/2−way valves (external pilot air supply) B−7 Festo P.BE−VTIA−EN en 1003a...
  • Page 138 Dominant at control side 14 ID code: M Function: One monostable 5/2−way valve Reset via pneumatic spring ID code: O Function: One monostable 5/2−way valve Reset via mechanical spring Tab. B/6: 5/2−way valves (external pilot air supply) B−8 Festo P.BE−VTIA−EN en 1003a...
  • Page 139 5/3−way mid−position valves with external pilot air supply ID code: G Function: 5/3−way valve Mid−position closed ID code: E Function: 5/3−way valve Mid−position exhausted ID code: B Function: 5/3−way valve Mid−position pressurized Tab. B/7: 5/3−way mid−position valves (external pilot air supply) B−9 Festo P.BE−VTIA−EN en 1003a...
  • Page 140 (ID code H, K and N) Reversible 2x 3/2−way valves (code P, Q and R) must not be operated in a separate pressure zone in combination with these pressure regulat ing valves. Tab. B/8: Pressure regulator plates B−10 Festo P.BE−VTIA−EN en 1003a...
  • Page 141 3/2−way valve for shutting off the operating pressure (duct 1) at the valve position. Blocks duct 14 for the valve position. Supplies the valve position with internal pilot air. Tab. B/10: Vertical pressure supply plate and vertical pressure shut−off plate B−11 Festo P.BE−VTIA−EN en 1003a...
  • Page 142 B. Supplementary overview of components B−12 Festo P.BE−VTIA−EN en 1003a...
