Summary of Contents for tousek ST 80

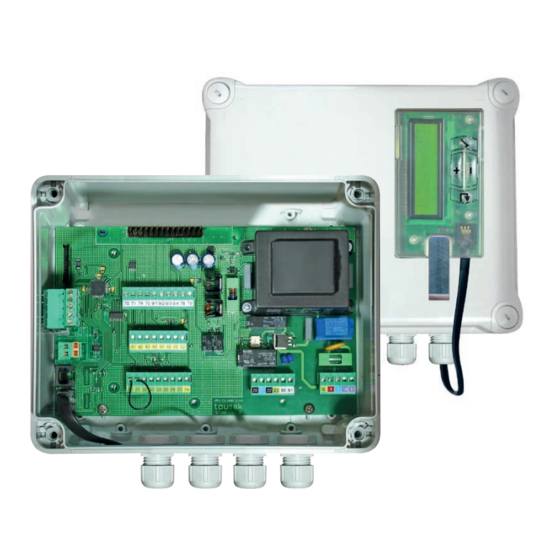

- Page 1 Installation and connection manual Barrier control ST 80, ST 80V Master / Slave combination for double barrier...
-
Page 2: Table Of Contents
Cable plan ..............................26 This manual is the sole property of the TOUSEK Ges.m.b.H. and may not be made available to competitors. All rights reserved. No part of it may be reproduced without our prior written permission. We will not accept liability for any claims resulting from misprints or errors. This edition of the manual replaces all earlier publications of the same. -
Page 3: General Warning And Safety Details
EU and in the individual countries have to be strictly followed. • The TOUSEK Ges.m.b.H. cannot be held liable for any claims resulting from disregards of the laws and standards in force during the installation and operation. -
Page 4: Notes, General Characteristics, Control Board Layout, Technical Data
General Barrier control ST 80, ST 80V / Master-Slave Control board features • for double barrier (Master/Slave) with eletromechanic • Automonitoring of photocell motors 230V and speed sensor • Ouput for Photocells, magnetic clamp, signal lamp and boom • Programming with illuminated LC display in englisch language lamp kit •... -
Page 5: Terminal Assignment
• additional module for status of barrier • induction loop detector • other Optional equipment impulse givers and safety equipment Terminal assignment Barrier control ST 80, ST 80V / Master-Slave Master-control board Terminal assignment Warning • Before taking off the control cover, the mains switch must be turned off! •... - Page 6 • During connection, adjustment and maintenance works please take care, that the electronic circuit board won´t be damaged by moisture (rain). - 6 - tousek / EN_ST-80-M-S_05 / 25. 03. 2020...
- Page 7 Bus system High Master control Slave control Important • max. cable length between the barrier housings is 25m. • Cable type as: PVC control cable YSLY 2 x 1mm2 or equivalent. - 7 - tousek / EN_ST-80-M-S_05 / 25. 03. 2020...
-
Page 8: Programming, Menu Structure
Adjustments - overview Barrier control ST 80, ST 80V / Master-Slave Programming buttons Adjustments - overview • Before starting the programming, please choose the language. Use the buttons to choose menu langu- age and confirm with • language adjustment has to be made in Master- and Slave control . - Page 9 display protocol messages sensor status display sensor At barriers with 6m boom length the settings for speed OPEN/CLOSE must not be more than 90% (= factory setting of ST 80)! ENTER Barrier control ST 80, ST80V / Master-Slave - 9 -...
-
Page 10: Connections And Adjustments
Connections and adjustments Barrier control ST 80, ST 80V / Master-Slave Danger • Before connection works or taking off the housing cover the power supply has to be turned off ! • When connecting control boards, impulse emitters, safety devices and motors as well as when adjusting the... - Page 11 A partial opening impulse in the open position causes the system to change into partial open position (i.e. only the barrier responsible for the partial opening remains open, the other closes). - 11 - tousek / EN_ST-80-M-S_05 / 25. 03. 2020...
-
Page 12: Safety
Photocell Tousek LS 26 transmitter receiver as safety device Important 12/24V 12/24V NC C NO • Jumper J of transmitter and receiver has to be adjusted in the same way. - 12 - tousek / EN_ST-80-M-S_05 / 25. 03. 2020... - Page 13 2 photocells Tousek LS 41 / LS 180 2 photocells Tousek LS 41 / LS 180 as safety as safety device device with SYNC-function activated transmitter 1 receiver 1 transmitter 1 receiver 1 SYNC SYNC receiver 2 transmitter 2 transmitter 2...
- Page 14 • The photocell self-test can only be deactivated by selecting „not active“. • The deactivation of the self-test function is only permitted if the safety installations correspond to the category 3 ! - 14 - tousek / EN_ST-80-M-S_05 / 25. 03. 2020...
-
Page 15: Motor
If the gate is in partial open position and „permanent open in automatic mode“ is selected, so it is possible to adjust permanent partial open for this cycle by giving an impulse via pedestrian button. Permanent partial open can be finished analogous to the above described method. - 15 - tousek / EN_ST-80-M-S_05 / 25. 03. 2020... -
Page 16: Lamps / Lights
• Note: The kit for round booms (Product No. 13710250) must be connected via a specially dimensioned series resistor (R boom lamp) to the control board ST 80 Master/Slave (see figure), the kit for flat booms (Art.Nr. 13710190) without a resistor. -
Page 17: Peripherals
Magnet for boom fixing • The barrier can be equipped with a magnet 24Vd.c., 5W max. for fixing the boom in closed position. This is connected via a series resistor (R magnet) to the controller ST 80 Master/Slave. Connection of magnet •... -
Page 18: Diagnosis
HOURS : MINUTES : SECONDS $$$$$$$$$$$$$$$$ T -00 00:00:00.0 type of event $$$$$$$$$$$$$$$$ Event Status Sensor (control function) Reset / Diagnosis Degree and signal strength of rotation speed sensor is shown on display. - 18 - tousek / EN_ST-80-M-S_05 / 25. 03. 2020... -
Page 19: Induction Loop Detector (Optional)
2 channel induction loop detector ISD 6 ST 80, ST 80V / Master-Slave (optional) Important • The device is for plugging onto a compact control board. The compact control board has to be built into a separate housing with IP54-insulation. -
Page 20: Radio Receiver (Optional)
Connecting the receiver ST 80, ST 80V / Master-Slave (optional) Important • Turn off power supply. • With the use of the 2-channel-receiver the second • Open cover of control unit channel takes over the function of the partial opening •... -
Page 21: Putting Into Operation
Putting into operation Barrier control ST 80, ST 80V / Master-Slave Important: preparation works • Connect control panels, safety devices and motors under consideration of the safety regulations. Attention: if no stop switch is connected then the terminals 31/37 have to be bridged (Master + Slave). - Page 22 $$$$$$$$$$$$$$$$ active confirm $$$$$$$$$$$$$$$$ photocell $$$$$$$$$$$$$$$$ not active change ? YES $$$$$$$$$$$$$$$$ Main safety edge $$$$$$$$$$$$$$$$ Main safety edge $$$$$$$$$$$$$$$$ $$$$$$$$$$$$$$$$ active confirm $$$$$$$$$$$$$$$$ Main safety edge $$$$$$$$$$$$$$$$ not active - 22 - tousek / EN_ST-80-M-S_05 / 25. 03. 2020...
- Page 23 After giving the impulse to automatically program the end positions, no other impulse must be given. Also the safety devices mustn´t be triggered. This would lead to an interruption of the programming process. - 23 - tousek / EN_ST-80-M-S_05 / 25. 03. 2020...
-
Page 24: Error Analysis
Error search Barrier control ST 80, ST 80V / Master-Slave Error possible reason solution Stop-button (Kl. ) connect or bridge Display: „Stop-button triggered“ stop-button not connected or not bridged > use status display for help check correct connection hence re- Display: „Photocell triggered“... -
Page 25: Dimensioned Drawing
Dimensioned drawing of box IP54 Barrier control ST 80, ST 80V / Master-Slave • dimensions in mm depth: 105 We reserve the right to change dimensions and technical specifications without prior notice - 25 - tousek / EN_ST-80-M-S_05 / 25. 03. 2020... -
Page 26: 10. Cable Plan
If special rules require another type of cable, cable must EU standards in their country or as amended. be used in accordance with these regulations. The Tousek Ges.m.b.H. can not be held liable for the disregard of standards during the installation or operation of the facility - 26 -... - Page 28 Buitenheide 2A/ 1 Tel. +32/ 11/ 91 61 60 your service partner: Fax +32/ 11/ 96 87 05 info@tousek.be Tousek Sp. z o.o. Poland PL 43-190 Mikołów (k/Katowic) Gliwicka 67 Tel. +48/ 32/ 738 53 65 Fax +48/ 32/ 738 53 66 info@tousek.pl...
