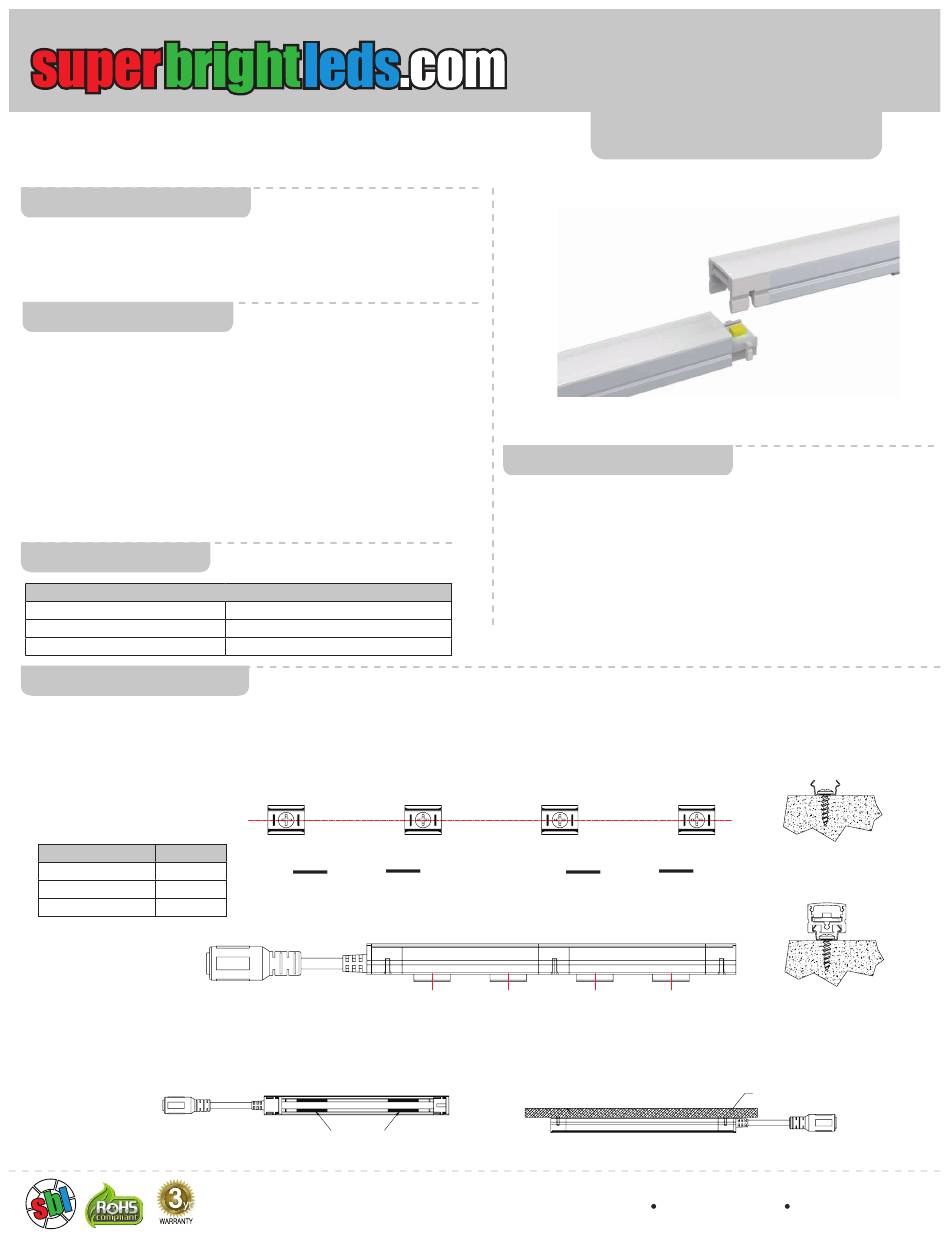

superbrightleds LSLB-NW Series User Manual

Important: Read all instructions prior to installation.
Linkable LED Light Bar
Included Parts

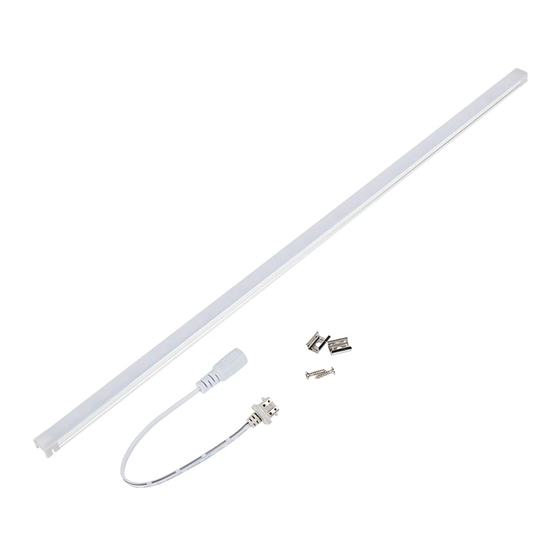

1 - Linkable LED Light Bar
1 - Mounting Clip Kit
1 - DC Connection Cable
1 - Endcap
Optional Accessories
LSLB-NWCC - Cross Connector
LSLB-NWLC - L Connector (left)
LSLB-NWRC - L Connector (right)
LSLB-NWTMC - T Connector (4-way)
LSLB-NWTLC - T Connector (3-way, left)
LSLB-NWTRC - T Connector (3-way, right)
LSLB-I06 - 6" Interconnect Cable
LSLB-I12 - 12" Interconnect Cable
LSLB-I36 - 36" Interconnect Cable
LSLB-MC - Mounting Clip Kit
Specifications
LSLB-NWx-12V
Operating Voltage Range
Maximum Run
IP Rating
Installation / Mounting
Clip Installation
Clip should be installed with a distance equal to approximately 80% of the light bar between each clip.
Model A
LSLB-NW08-12V 6.5 in.
LSLB-NW12-12V 9.5 in.
LSLB-NW20-12V 16 in.
Magnetic Installation
12 VDC
16.4 ft (5 m) or 10 light bars
IP20
|
|
A
Magnets
Rev Date: V0.1 07/23/2019
4400 Earth City Expy, St. Louis, MO 63045
User Manual
LSLB-NWx-12V
Safety and Notes
• Product should be installed in accordance with applicable national,
state, and local building and electrical codes.
• Do not exceed the max run as listed in this manual.
• This product is for use in dry indoor locations only.
• Use only the approved connectors. Do not attempt to modify light bars.
• Do not cover the light or allow the light to be in contact with material
such as cloth which may pose a fire hazard.
• Make certain to terminate each run with the provided endcap
|
A
866-590-3533
|
Ferromagnetic
Metal Surface
superbrightleds.com
