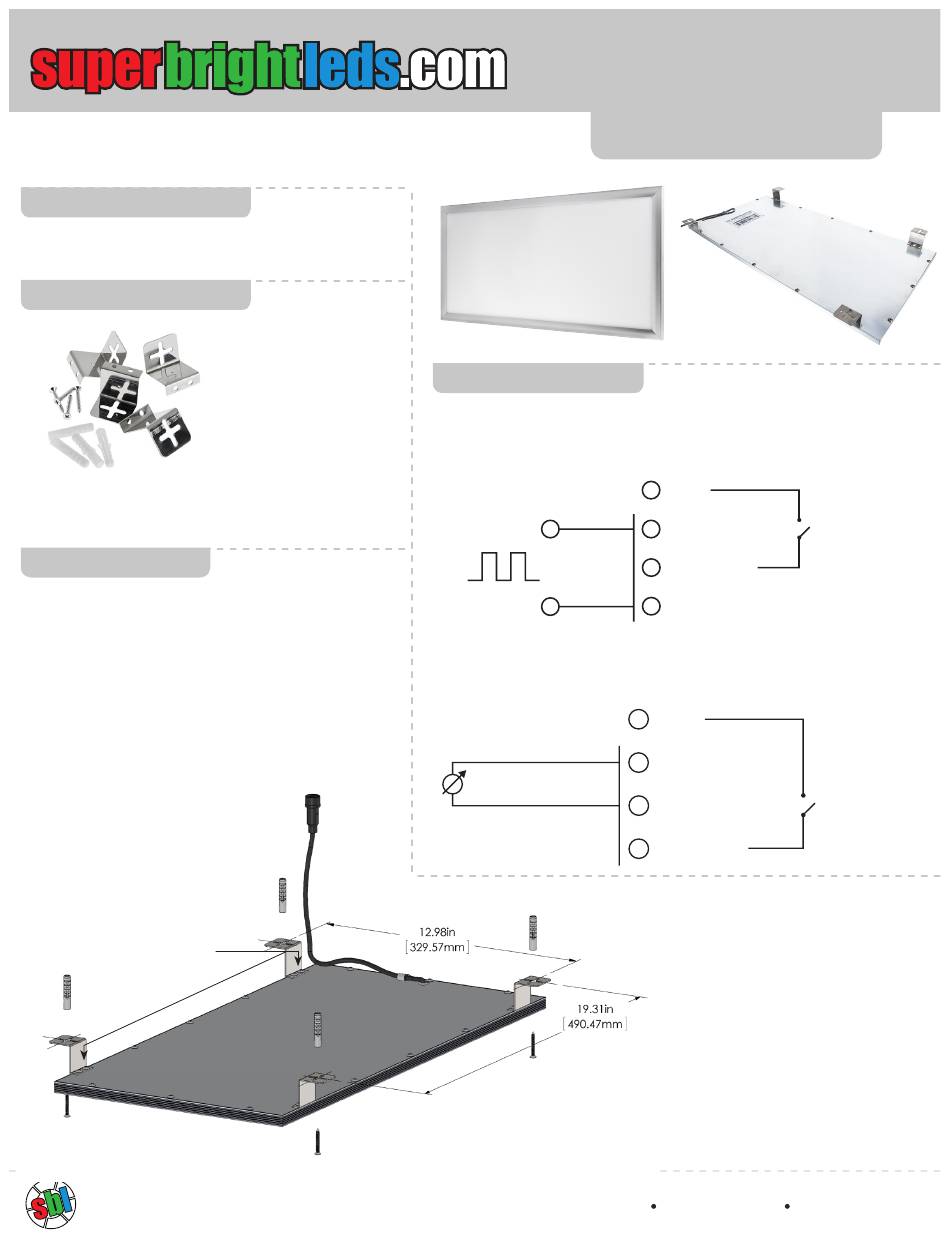

superbrightleds LP-NW3030-35-12V User Manual

Important: Read all instructions prior to installation.

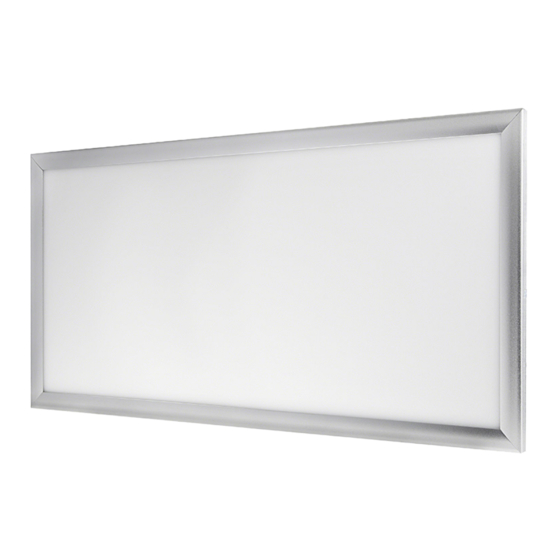

LED Panel Light with Mounting Kit
Included Parts
1 - Even Glow Panel
(LP-NW3030-35-12V, LP-NW6030-35-12V)
4 - Mounting Brackets
4 - Anchors
Mounting Hardware
* Note: LP-SMK-BKT Included
with panel
Installation
1. Use a Phillips screwdriver to remove screws from LED Panel.
(Fig. 1) Use these screws to attach 4 Mounting backets to
the panel. Note: Make sure to orient the Mounting Brackets
correctly (varies by application).
2. Hold Panel against surface where it is to be mounted.Mark
surface with pencil for proper placement of the Panel.
3. While anchors are provided for use in mounting, they are not
appropriate for all applications.
FIG 1
Mounting Screws
Dimming Instructions
Pulse Width Modulation Controls
0%(OFF) - 50%(half dimming) - 100%(full brightness)
The PWM frquency range is 1–10KHz.
Do not exceed 8 VDC on the PWM DIM wire.
PWM Dimming
H
L
H: 2~8VDC
L: )~0.5VDC
Analogue Dimming Controls
As analogue voltage increases, the brightness increases.
0VDC = OFF, 0.25 VDC = minimum brightness, 1.3 VDC = maximum brightness
Do not exceed 8VDC on the Analogue DIM wire.
0.25V~1.3V
8V Max
Rev Date: V0.1 02/27/2019
4400 Earth City Expy, St. Louis, MO 63045
User Manual
LP-NW3030-35-12V
LP-NW6030-40-12V
DIM -
DIM - Remote Switch
On / Off (Optional)
Analog DIM -
PWM DIM -
DIM -
DIM -
Analog DIM - Remote Switch
On / Off (Optional)
PWM DIM -
866-590-3533 superbrightleds.com
