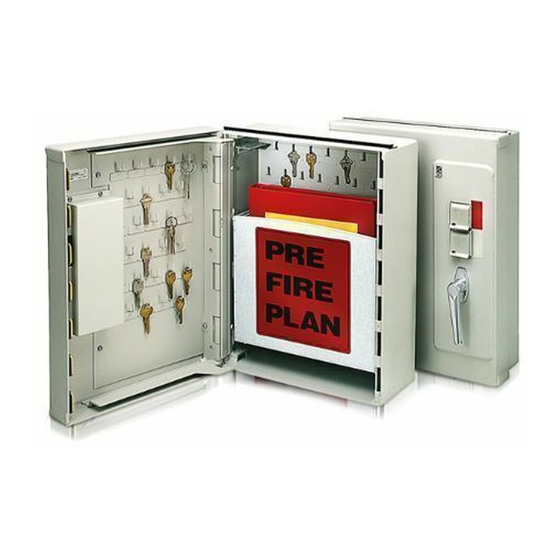

Knox DOCUMENT CABINET Mounting Instructions

Your Knox Document Cabinet is the finest utility vault available. To fully utilize its built-in security features,
we recommend that reasonable care be given to the location and method of mounting.
Expansion Swing Panel
Mounting Brackets
6"
Rear Tamper
Alert hole
Tamper Alert
mounting hole
(2)
Tamper Alert
wire hole
Front View of Back Plate
1601 W. DEER VALLEY ROAD, PHOENIX, AZ 85027
© Knox Company. All rights reserved.
KNOX DOCUMENT CABINET
Tamper
Dust Cover
Alert
6"
2-5/32"
Accessories
Mounting Hole
13/32" TYP.
Mounting Holes
| T. 800-552-5669
MOUNTING INSTRUCTIONS
Each Knox Document Cabinet is coated with a tough TGIC
powder coating and includes a 1/8" thick stainless steel
dust cover to protect the lock. It is always best, however, to
locate the unit in an area which is sheltered from moisture
and possible mechanical damage.
The Knox Document Cabinet itself is an inherently strong
cabinet, but proper mounting is important to achieve
desired security.
Knox Document Cabinets are fully tested and listed by
Underwriters Laboratories as anti-theft devices.
GENERAL MOUNTING INSTRUCTIONS
1. CAUTION! Be extremely careful when handling the
Knox Document Cabinet prior to installation. When not
mounted, the door will be OPEN. Always hold box and
door securely to prevent door closing on fingers and
causing injury.
Tamper Alert: If your Knox Document Cabinet has the
Tamper Alert feature, remove the rear Tamper Alert and
set aside for installation after the cabinet is mounted.
2. Always mount your Knox Document Cabinet to
7/8"
a secure solid wall. The Knox Document Cabinet
should never be mounted with the door facing up.
3. Use a small level to plumb the box square.
4. Use at least eight (8) mounting fasteners (Grade 8
bolts) of 5/16" diameter. Units may also be welded
into place. For best security, bolts should go through
8"
a solid wall with large washers on the opposite side.
5. We strongly recommend that all Tamper Alert
connections and adjustments be carried out by a
qualified alarm technician.
17-5/8" H
8"
ATTENTION:
Installation of this product should be performed only by
individuals skilled in the use of the tools and equipment
necessary for installation. If you have any doubt
concerning your competence or expertise, consult a
qualified expert to perform the installation.
| F. 623-687-2290 | INFO@KNOXBOX.COM | KNOXBOX.COM
OPE-KBSPEC-0015-B
™
