Danner 20370 Instructions

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE
Faulty Power Source
Pump stops
running
Internal Thermal Pro-
OR
tection Device has
Severe decrease in
Tripped
flow rate
occurs.
Slotted Base or Intake is
clogged with debris
Pump Intake is above
water level
Pump is cavitating due to
water level getting too low
Motor runs but does
not pump any
water.
Air Lock is occurring in-
side pump chamber
The 6mm Screws (item 7)
Pump does not start
which fasten the volute to
after replacing the
the housing have been
Rotor / Impeller Ass'y
overtightened.
LIMITED WARRANTY
E.G.Danner Mfg.,Inc. will repair or replace any unit found to be defective within
one year of original purchase. Cutting or altering cord, removing or defacing
product labels voids any warranty consideration. For warranty repair, return only
the part that is defective to our factory. Please include a dated proof of purchase
and $20.00 for postage and handling. Damages or injuries resulting from
negligence, shipping, handling, improper installation, maintenance or misuse of
the product are not covered by the warranty. This warranty gives you specific
legal rights. You nay have other rights which vary from state to state. To validate
this warranty keep your proof of purchase. (Copy of your sales receipt.).
1 year limited warranty does not cover externally attached components
(i.e., slotted base, mounting plate, elbow)
ZG588 Rev B 01/18
SOLUTION
Check all power sources and
connections, GFCI and Circuit
Breakers.
Test pump in a second outlet
or power source.
Unplug and allow the pump to
cool down.
Check inlet for debris and re-
move before re-starting.
Disconnnect power and clean
out debris from around Base or
Impeller Intake Inlet.
Shut off Pump so as not to
overheat and discontinue use
until water level has risen OR
relocate pump to deeper water.
Disconnect power from the
pump. Turn pump upside down
in the water to release any
trapped air pockets within the
chamber and then return pump
to upright position. Reconnect
power and test.
Remove base, loosen flange
nuts, back off screws 1/4 turn.
Re-tighten flange nuts and re-
attach base.
Note: A threadlocker should be
applied to all machine screws.

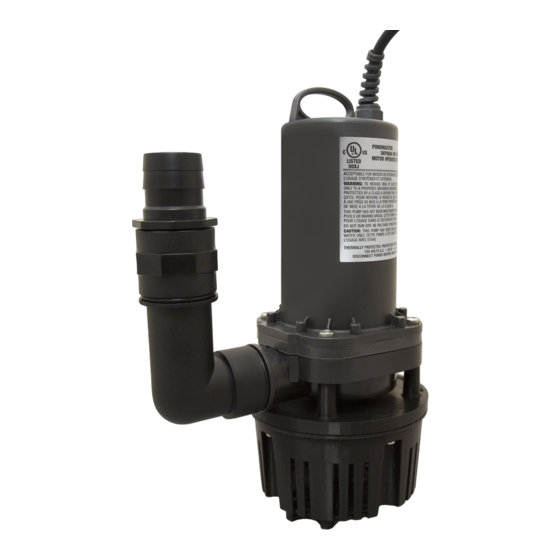

Model # 20370 Utility Pump
Specifications:
POOL MAIN
DRAIN
PUMP SHOWN SEATED
INSIDE POOL MAIN DRAIN
This versatile pump is designed primarily for use in draining in-
ground pools for the purposes of maintenance and liner re-
placements. The slotted "basket-type" base measures less than
5 ½" in diameter. This dimension in conjunction with the (4)
cored reliefs @ 90 degrees apart, allows it to fit inside the drain
and seat itself several inches below the top surface of the main
drain flange, thereby draining ALL the water in the pool. It can
also be used in Irrigation, Pond and any other general watering
or de-watering application.
WARNING : POOLS ARE DANGEROUS TO SMALL CHILDREN.
NEVER LEAVE CHILDREN UNSUPERVISED NEAR A POOL.
Operating Precautions:
• DO NOT USE IN HIGHLY ABRASIVE ENVIRONMENTS OR IN WATER WITH
LARGE , UNDISSOLVED SOLIDS.
• NEVER USE PUMP IN ANY LIQUID OTHER THAN WATER.
• DO NOT RUN PUMP DRY.
General Maintenance:
• RINSE AND FLUSH PUMP THOROUGHLY AFTER USE IN SALTWATER AND
ANY TYPE OF ACID WASH PROCEDURES.
MAX FLOW 5373 GPH - SEE TABLES 1 & 2
RATE
MAX HD HT 32 FEET - SEE TABLES 1 & 2
MIN WATER 2 INCHES DEEP
DRAW
VOLT/FREQ. 120 VOLT / 60Hz
WATTS 593
AMPS 4.9
FITTINGS
ELBOW, COUPLING and
INCLUDED
1 ½" BARBED
