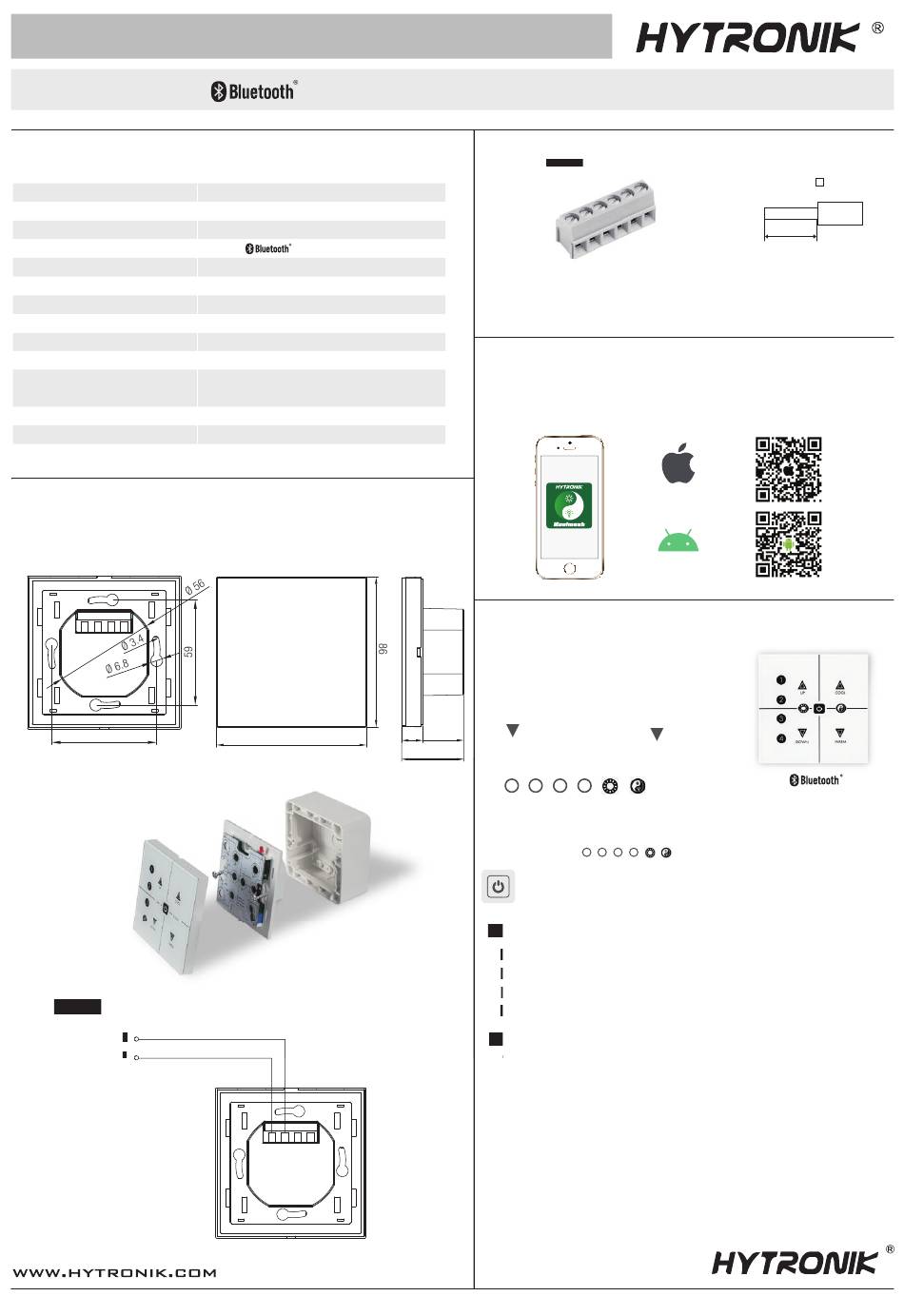

Hytronik HBP01 Installation And Instruction Manual

Installation and Instruction Manual
Touch Panel with
1. Technical Specifications
Operation frequency
Transmission power
Range (Typical indoor)
Protocol
Protocol
Operating voltage
Stand-by power
Operation temperature
Relative humidity
IP rating
EMC standard (EMC)
Safety standard (LVD)
RED
Certification

2. Installation

Mechanical Structure & Dimensions
59
Wiring Diagram Wiring Diagram
N N
L L
5.0 SIG Mesh
2.4 GHz - 2.483 GHz
7 dBm
10~30m
5.0 SIG Mesh
220~240VAC 50/60Hz
<1W
Ta: 0 C ~ +40 C
O O
20% ~ 90%
IP20
EN55015, EN61000, EN61547
EN60669-1/-2-1
AS/NZS60669-1/-2-1
EN300328, EN301489-1/-17
CB, CE , EMC, RED, RCM
L N
HBP01
Wire Preparation Wire Preparation
To make or release the wire from the terminal, use a screwdriver
to push down the button.

3. Download the App

Free App for set-up and commissioning

4. Operation

▲
Brightness
UP
Control
12.1
DOWN
35.6
1 2 3 4
Scenes are simply programmed using the App.
Create and name the scenes using the scenes menu, and then assign the
scenes to buttons scenes to buttons scenes to buttons
1
The ON/OFF button has a configurable response via the App.
1) Permanent OFF (Occupancy sensor disabled). 1) Permanent OFF (Occupancy sensor disabled).
Turning off via the ON/OFF button will suspend the entire system, including Turning off via the ON/OFF button will suspend the entire system, including
occupancy sensor. Pressing this button again will resume the last automatic occupancy sensor. Pressing this button again will resume the last automatic
profile selected, or pressing any other button on the control panel will wake profile selected, or pressing any other button on the control panel will wake
up the system. up the system.
2) Clean Mode 2) Clean Mode
Long press this button for more than 5s to go to clean mode (during this clean mode, the Long press this button for more than 5s to go to clean mode (during this clean mode, the
touch panel screen will be locked and does not respond to any touch), it will quit automatically
after 1min.
Touch Indications
Three methods for successful touch indications:
Vibration / Beeper / LED indicator
User can select any one, two or all of them to indicate successful touch on HBP01 in the App.
Real-time Sustainability
The touch panel HBP01 can keep the time runing for up to 7-8 weeks against power
failure.
0.75 - 1.5mm
Rising clamp terminal.
iOS 10.0 or later
Android 5.0 or later
▲
Tunable
COOL
White
Control
WARM
Scene Recall
from the device settings menu. from the device settings menu. from the device settings menu.
2 3 4
HBP01
8mm
HBP01-20200303-A0
