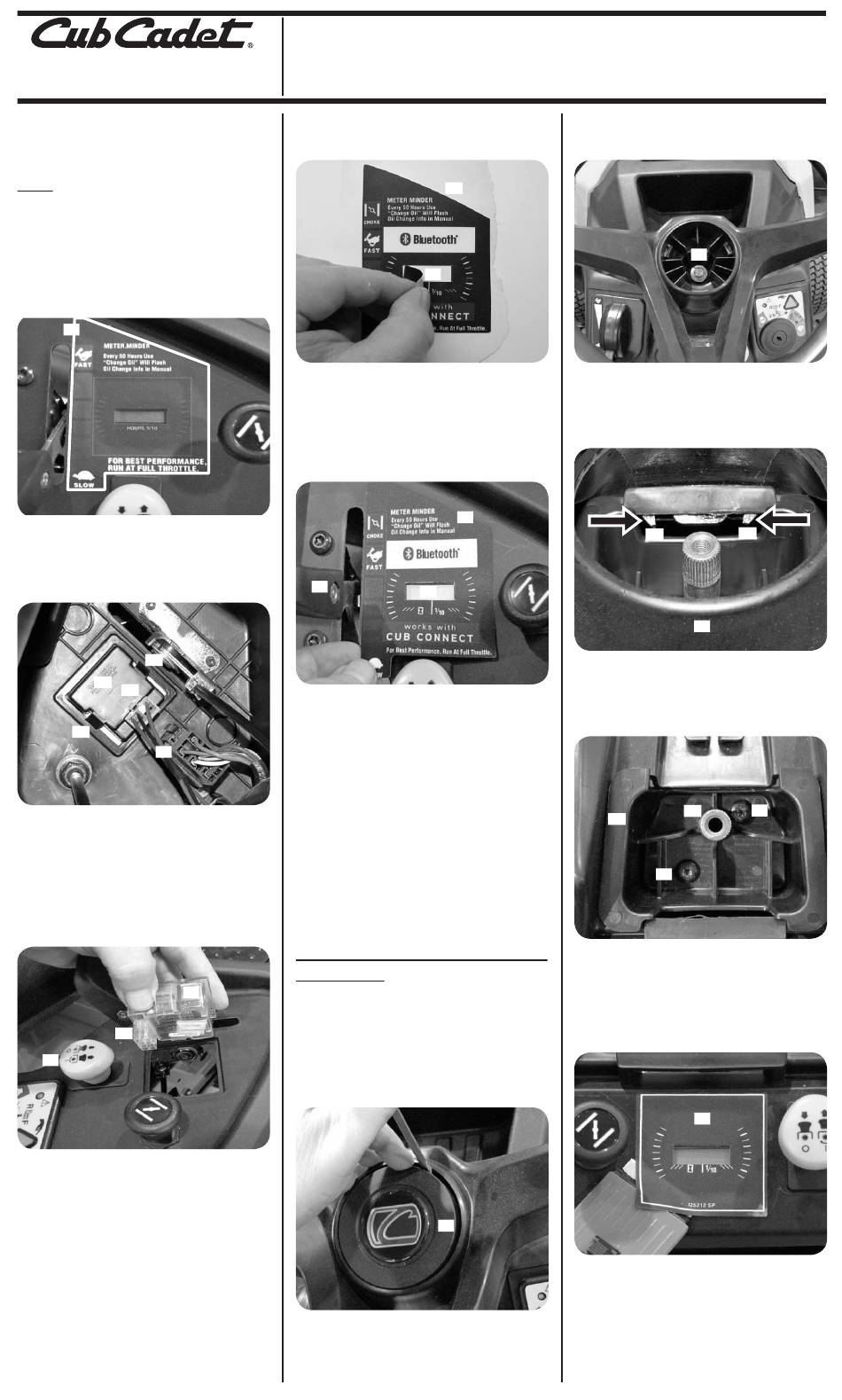

Cub Cadet 490-900-C066 Installation Sheet

I s
nstallatIon
Bluetooth® Hour Meter
NOTE: All references to the left or right side and front
or back of the tractor are from the operating position
only. Exceptions, if any, will be specified.
To install the kit on RZT L/S models proceed below,
for XT1/XT2 Enduro Series models go to :
RZT L/S
1. Park the unit on a flat, level surface. Engage
the parking brake and lower the deck to the
lowest position. Allow the unit to cool before
proceeding.
2. Disconnect the negative battery cable, then
the positive battery cable.
3. Carefully remove the existing maintenance
meter label (a) off the RH pod. See Figure 1.
(a)
Figure 1
4. Reach up inside the RH pod and disconnect
the main wire harness (a) from the maintenace
meter (b). Press the tab (c) on the wire harness (a)
and pull down. See Figure 2.
(d)
(b)
(c)
(d)
(a)
Figure 2
5. Reach up inside the RH pod and squeeze the
two tabs (d) on the maintenance meter (b) and
remove the maintenance meter (b). See Figure
2. Discard the maintenance meter.
6. Make sure the surface of the RH pod is clean of
dirt, label residue, etc. Clean as needed.
7. Install the Bluetooth® Hour Meter (725-06221) (a)
into the opening as shown in Figure 3.
(b)
(c)
Figure 3
NOTE: The terminal block (b) must be at
the bottom and above the PTO switch (c) as
shown in Figure 2.
8. Push the Bluetooth® Hour Meter all the way
into the RH pod until the two tabs click into
place.
Kit Number: 490-900-C066
Kit Contents: One Bluetooth® Hour Meter (Part No. 725-06221), One Rider Maintenance Meter Label (777I25270),
One RZT Maintenance Meter Label (777I25406).
heet
:
Models All 2015 or later XT1, XT2 Enduro Series and RZT L/S Models.
9. Remove the black rectangular section (a) from
the center of the Rider Maintenance Meter
Label (777I25270) (b) and discard. See Figure 4.
10. Install One Rider Maintenance Meter Label
(777I25270) (a). Carefully align the label over
the Bluetooth® Hour Meter so that the open
rectangular section is centered over the silver
rectangular LCD display (b) and the left side
of the label is aligned with the edge of the
throttle/choke control (c). See Figure 5.
(c)
11. Make sure all the air bubbles are removed
from under the label.
12. Reach up inside the RH pod and connect the
wire harness. Make sure the wire harness
snaps into place.
13. Connect the positive and then the negative
battery cable.
14. Turn the key to the on position. The
Bluetooth® Hour Meter should display the
hours.
15. Start the rider and confirm the Bluetooth®
Hour Meter is functioning correctly.
NOTE: Connect the Bluetooth® Hour Meter to
your smartphone by downloading the Cub
Connect™ App for your Bluetooth® capable
Android or iOS device. See the Cub Connect™
Mobile App Bluetooth® Operation Device
Compatibility section for instructions.
XT1/XT2 Enduro Series
(a)
1. Park the unit on a flat, level surface. Engage
the parking brake and lower the deck to the
lowest position. Allow the unit to cool before
proceeding.
2. Disconnect the negative battery cable, then
the positive battery cable.
3. Remove the steering wheel cap (a). See Figure 6.
(b)
(a)
Figure 4
(a)
(b)
Figure 5
(a)
Figure 6
4. Remove the screw (a) that secures the steering
wheel to the steering wheel shaft and remove
the steering wheel. See Figure 7.
(a)
Figure 7
5. Open the hood and remove the dash cap (a)
by squeezing the two tabs (b) together and
then pushing the dash cap (a) towards the
seat. See Figure 8.
(b)
(a)
Figure 8
6. Use a T-30 torx to remove the two shoulder
bolts (a) that secure the steering shaft
bearing (b) to the steering bearing mounting
bracket. See Figure 9.
(c)
(b)
(a)
Figure 9
7. Remove the steering shaft bearing (b) by
lifting up and off the steering shaft (c). See
Figure 9.
8. Carefully remove the existing maintenance
meter label (a) from the upper dash. See
Figure 10.
(a)
Figure 10
