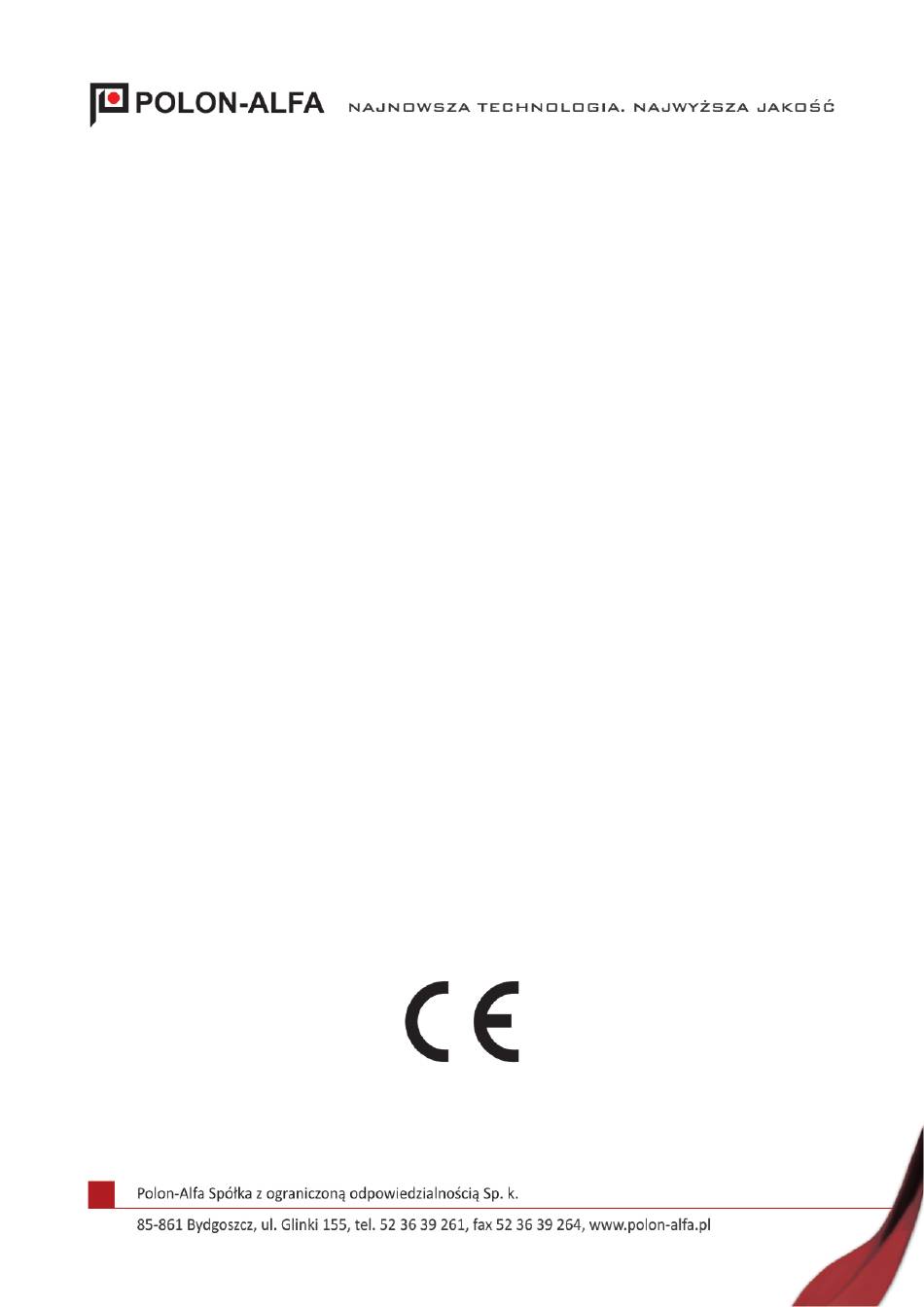

- Page 1 IK-E337-001 FIRE ALARM SYSTEM POLON 6000 INPUT/OUTPUT ELEMENT TYPE EKS-6000 Installation and Maintenance Manual IK-E337-001 Edition ID...
- Page 2 Failure to follow the instructions included in this manual may be dangerous or result in the violation of applicable regulations. As the manufacturer, Polon-Alfa is not liable for any damages resulting from the improper device operation that is not in accordance with this manual.
- Page 3 IK-E337-001 Polon-Alfa Spółka z ograniczoną odpowiedzialnością Sp.k. 85-861 Bydgoszcz, ul. Glinki 155 1438 1438-CPR-0375 I/O element, typeEKS-6000 versions: EKS-6044, EKS-6022, EKS-6040, EKS-6004, EKS-6202, EKS-6400 EN 54-18, EN 54-17 Declaration of Performance no. 1/E337/2014/PL Harmonised technical Product essential characteristic Performance specification...
- Page 4 IK-E337-001 Harmonised technical Product essential characteristic Performance specification EN 54-18:2005 Chapter Durability and operation reliability: electrical stability Properties and resistance to Pass power supply parameter change Resistance to electromagnetic interference Pass 5.12 Harmonised technical specification Product essential characteristic Performance EN 54-17:2005 Chapter Efficiency in fire conditions Reproducibility...
-
Page 5: Table Of Contents
IK-E337-001 Table of contents Design ..........................6 Technical data........................7 Description of the design ....................8 Description of the operation ..................... 10 Operating modes of the I/O element ................12 Operating conditions ......................14 Installation of I/O elements ....................14 Safety conditions ....................... -
Page 6: Design
IK-E337-001 1. Design EKS-6000 universal I/O element is an addressable element intended for the following: control of automatic safety and fire protection devices operation supervision of the devices mentioned above monitoring and supervision of equipment condition. EKS-6000 I/O element is intended for use in addressable detection lines of POLON 6000 fire detection and alarm control panel. -
Page 7: Technical Data
IK-E337-001 2. Technical data I/O element type EKS-6040 EKS-6004 EKS-6022 EKS-6044 EKS-6202 EKS-6400 Detection line supply voltage 16.5 – 24.6 V Current consumption from detection line < 210 µA < 240 µA < 220 µA < 240 µA < 250 µA <... -
Page 8: Description Of The Design
IK-E337-001 3. Description of the design EKS-6000 I/O element is designed in the form of a printed circuit board with electronic components and a connector set, that has been put inside an enclosure. The enclosure has wall mounting holes in the corners. Depending on the type of I/O element, cable glands are located in the enclosure body, along longer sides. - Page 9 IK-E337-001 Figure 2 Dimensions of EKS-6004, EKS-6202, EKS-6400 Figure 3 Dimensions of EKS-6022...
-
Page 10: Description Of The Operation
IK-E337-001 Figure 4 Dimensions of EKS-6044 4. Description of the operation The communication between POLON 6000 control panel and EKS-6000 I/O element is carried out via an addressable two-wire detection line. Unique, fully digital communication protocol enables transferring any information from the control panel to the element and from the element to the control panel. - Page 11 IK-E337-001 Location: reporting using a button Non-volatile memory corruption: erroneous data stored in non-volatile memory The way the I/O element is supposed to operate is determined by the operation mode of this element. The mode of operation of a I/O element is defined by several data bytes, which indicate the mode of operation and behavior of this element.
-
Page 12: Operating Modes Of The I/O Element
IK-E337-001 The same rules apply to IN HV inputs. If the IN HV outputs or inputs are not used, the position of corresponding jumpers is not relevant. 5. Operating modes of the I/O element Based on the type of control output operation, the appropriate number of operating mode parameters must be defined. - Page 13 IK-E337-001 The following table shows the configuration of the I/O element based on the operation mode of the control output: Control input operation mode Parameters to be defined Profile Continuous Profile Group number Triggering delay time Reset delay time – T Pulse Profile Group number...
-
Page 14: Operating Conditions
It is recommended to use a short bent screwdriver, 3,5×0.5 mm, cat. no. WAGO 210- 258 (available for purchase at Polon-Alfa). Connect the cables as described at the connectors. There is a sticker on the enclosure cover that shows the functions of EKS-6000 terminals, depending on the element type, as shown in the drawing: Figure 7. - Page 15 IK-E337-001 It is recommended that EKS-6000 I/O elements to be installed outdoors should be equipped with a "Pressure compensation element". To do this, drill a 12 mm dia. hole at any point on the side wall of the enclosure body (e.g. near the nameplate) and fix the "Pressure compensation element" with a lock nut.
- Page 16 IK-E337-001 Detection line L1– TEST + – ROP-4001 – – L2– SHLD SHLD EKS-6202 TUN-4046 OFF1 – – Controlled Power device – supply 1A (NO1) Detection 12 VDC 1B (COM1) line/loop – 1C (NC1) Controlled Power device supply 2A (NO2) 230 VAC 2B (COM2) 2C (NC2)
- Page 17 IK-E337-001 Figure 7 Enclosure cover with EKS-6000 terminal functions...
-
Page 18: Safety Conditions
Maintenance and periodic inspections must be carried out by personnel that is authorised or trained by Polon-Alfa. All repairs must be carried out by the manufacturer. Polon-Alfa is not responsible for the operation of the equipment maintained and repaired by unauthorized personnel. 8.2. - Page 19 IK-E337-001...
- Page 20 IK-E337-001...
- Page 21 IK-E337-001...
