HVAC & AC Condensate Pan Overflow Alarm

Congratulations on your purchase of a FloodMaster RS-096 plumbing leak detection and

HVAC/AC condensate pan overflow alarm from Reliance Detection Technologies. This product

is designed to alert you if a leak or near overflow condition is detected.

To ensure proper installation and to maximize the performance of your RS-096 water leak

detection system, please read this manual thoroughly before installing or operating the system.

NOTE: This installation and operating manual contains important information about the operation of the

RS-096 system. If this system is being installed for use by a different user, please be sure a copy of this

manual is left with the system for future reference.

www.RelianceDetection.com

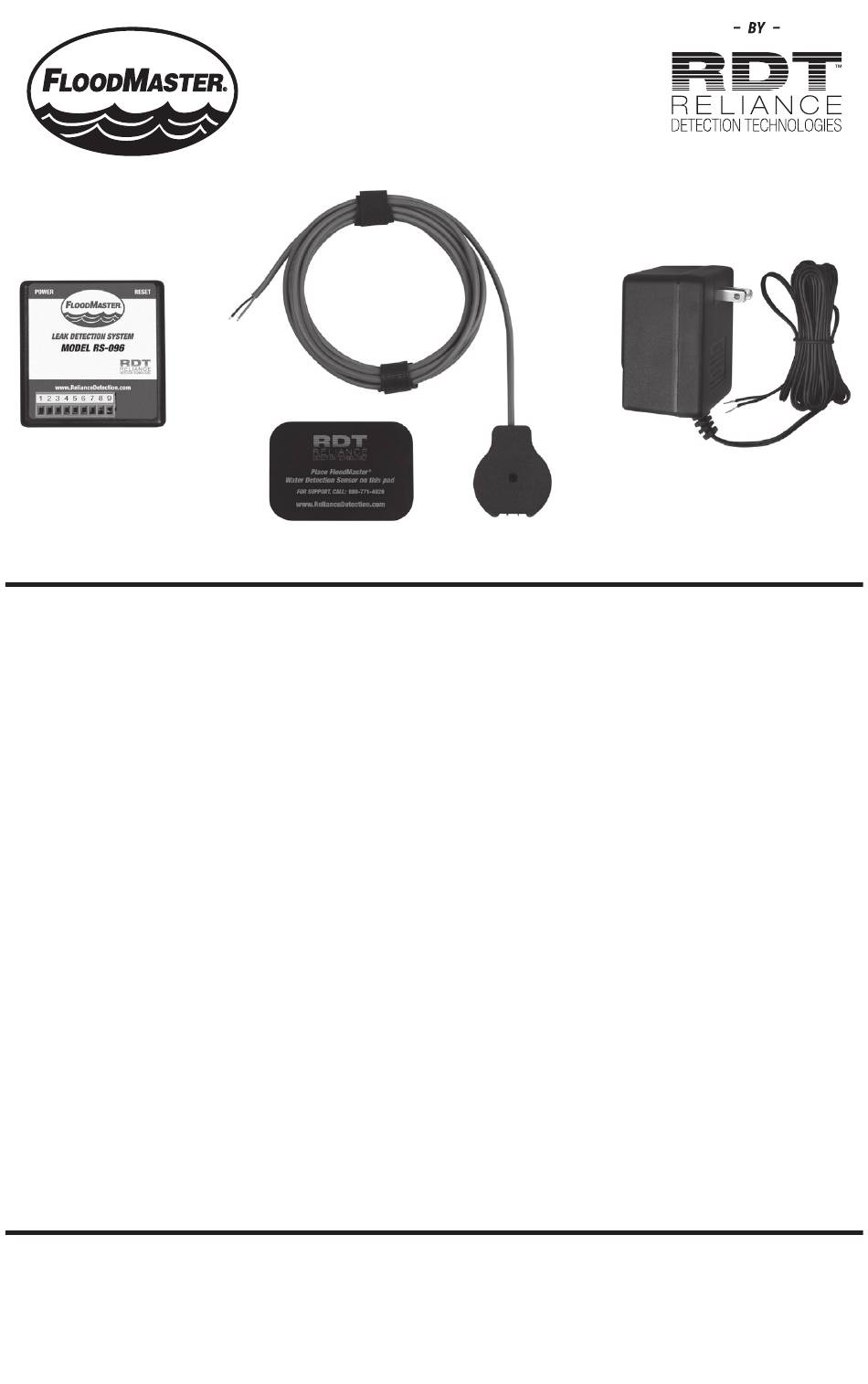

RS-096 System Components (included in kit):

1 – Receiver box

1 – Power supply with 12' lead wire

RS-096

Water Leak Detection /

Toll-Free: 888-771-4929

1 – Water sensor with 8' lead wire

1 – Metal plate for sensor placement

Page 1 Water Leak Detection / HVAC & AC Condensate Pan Overflow Alarm Congratulations on your purchase of a FloodMaster RS-096 plumbing leak detection and HVAC/AC condensate pan overflow alarm from Reliance Detection Technologies. This product is designed to alert you if a leak or near overflow condition is detected.
Page 2 INSTALLATION INSTRUCTIONS 1. Mount the receiver box in the desired location using supplied two-sided tape. 2. Plug the transformer into a 120V AC wall outlet. The green “Power” on/off indicator light on the receiver box will turn on. 3. The receiver connector comes prewired with basic connections to the power supply and the sensor.
Page 3 RS-096 1. Receiver box 5. Water sensor 2. Power LED 6. Metal plate WATER 3. Reset button 7. Power transformer 4. Wiring terminal block ALARM KIT mating slot FRONT VIEW SIDE VIEW 1.08 2.06 2.66 2.65 2.61 1.17 Ø .12 THRU 1.48 1.69 2.56...
Page 4 OPERATION & SYSTEM RESET In the event the system activates, locate the source of the leak or near overflow, remove the sensor from the water and dry the metal contacts. Correct the problem and replace the sensor in the desired leak detection location. If necessary, press and release the “Reset” button on the receiver to reset the system’s NO/NC dry contact outputs.
