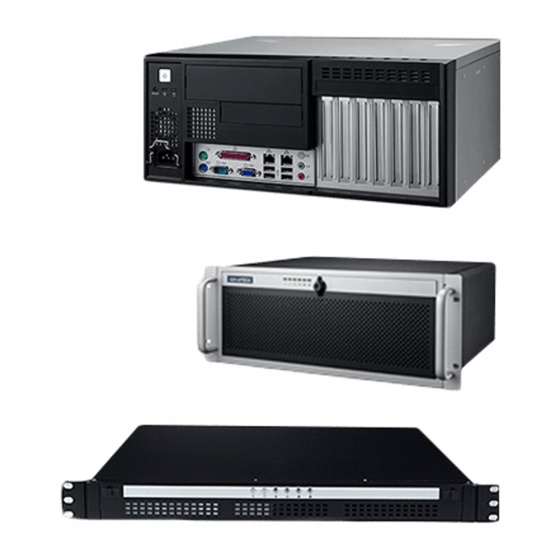

Page 1: A3200 Ipc Intelligent Industrial Pc
A3200 iPC Intelligent Industrial PC HARDWARE MANUAL Revision 2.00... - Page 2 This manual contains proprietary information and may not be reproduced, disclosed, or used in whole or in part without the express written permission of Aerotech, Inc. Product names mentioned herein are used for identification purposes only and may be trademarks of their respective companies.
-
Page 3: Table Of Contents
Agency Approvals Chapter 1: A3200 iPC 1.1. Specifications 1.2. Remote Server Operation 1.3. Dimensions 1.4. AC Power Setting 1.5. DVI Monitor Configuration (-R103, -R402, -DT01 PC Options) 1.6. Environmental Specifications Appendix A: Warranty and Field Service Appendix B: Revision History Index www.aerotech.com... -
Page 4: List Of Figures
List of Tables Table 1-1: Ordering Options Table 1-2: Legacy Hardware Ordering Options Table 1-3: Automation Motion Server Specifications (Control Cabinet / Desktop PC) Table 1-4: Automation Motion Server Specifications (Rack Mount PCs) Table 1-5: BIOS Settings Table 1-6: Environmental Specifications www.aerotech.com... -
Page 5: Eu Declaration Of Conformity
A3200 iPC Hardware Manual EU Declaration of Conformity EU Declaration of Conformity Manufacturer Aerotech, Inc. Address 101 Zeta Drive Pittsburgh, PA 15238-2811 Product A3200 iPC Model/Types Control Cabinet PCs: -CC02, -CC03 Desktop PC: -DT01 1U Rack Mounted PC: -R013 (Legacy: -R102, -R101) 4U Rack Mounted PC: -R402 (Legacy: -R401) - Page 6 IEC 61000-4-3:2008 IEC 61000-4-4:2012 IEC 61000-4-5:2005 IEC 61000-4-6:2013 IEC 61000-4-8:2009 IEC 61000-4-11:2004 Authorized Representative: Simon Smith, European Director Address: Aerotech Ltd The Old Brick Kiln, Ramsdell, Tadley Hampshire RG26 5PR Name / Alex Weibel Position Engineer Verifying Compliance Location Pittsburgh, PA...
-
Page 7: Agency Approvals
A3200 iPC Hardware Manual Agency Approvals Agency Approvals Manufacturer Aerotech, Inc. Address 101 Zeta Drive Pittsburgh, PA 15238-2811 Product A3200 iPC Model/Types Control Cabinet PCs: -CC02, -CC03 Desktop PC: -DT01 1U Rack Mounted PC: -R013 4U Rack Mounted PC: -R402 This is to certify that the aforementioned product(s) is in accordance with the applicable requirements of... - Page 8 Agency Approvals A3200 iPC Hardware Manual This page intentionally left blank. www.aerotech.com...
-
Page 9: Chapter 1: A3200 Ipc
Chapter 1: A3200 iPC IMPORTANT: All specifications and illustrations are for reference only and were complete and accurate as of the release of this manual. To find the newest information about this product, refer to www.aerotech.com. Table 1-1: Ordering Options... -
Page 10: Table 1-2: Legacy Hardware Ordering Options
Line Cord -LC0 No line cord (default) -LC1 US 115 VAC line cord -LC2 US 230 VAC line cord -LC3 UK compatible line cord -LC5 Israel compatible line cord -LC6 India compatible line cord -LC7 Australia compatible line cord www.aerotech.com... -
Page 11: Specifications
180 W 180 W 180 W (1) To avoid machine disruption, Aerotech disables automatic updates on Windows PCs that are shipped from Aerotech. To customize your update settings, refer to Microsoft’s Windows documentation or Aerotech’s User Guide to Windows 10 Updates. -
Page 12: Table 1-4: Automation Motion Server Specifications (Rack Mount Pcs)
260 W 400 W 180 W (1) To avoid machine disruption, Aerotech disables automatic updates on Windows PCs that are shipped from Aerotech. To customize your update settings, refer to Microsoft’s Windows documentation or Aerotech’s User Guide to Windows 10 Updates. -
Page 13: Remote Server Operation
Ethernet ports will be configured for use with the remote server. Refer to the figures below to determine which port you should use for each A3200 iPC hardware configuration. Figure 1-1: -CC02/-CC03 Connector View (typical) Figure 1-2: -DT01 Connector View (typical) www.aerotech.com... -
Page 14: Figure 1-3: -R103 Connector View (Typical)
1.2. Remote Server Operation A3200 iPC Hardware Manual Figure 1-3: -R103 Connector View (typical) Figure 1-4: -R402 Connector View (typical) www.aerotech.com... -
Page 15: Dimensions
IMPORTANT: Aerotech continually improves its product offerings; listed options may be superseded at any time. All drawings and illustrations are for reference only and were complete and accurate as of this manual’s release. Refer to www.aerotech.com for the most up-to-date information. -
Page 16: Figure 1-6: Control Cabinet Dimensions (-Cc02/-Cc03)
1.3. Dimensions A3200 iPC Hardware Manual Figure 1-6: Control Cabinet Dimensions (-CC02/-CC03) www.aerotech.com... -
Page 17: Figure 1-7: 4U Rack Mount Chassis Dimensions (-R402)
A3200 iPC Hardware Manual 1.3. Dimensions Figure 1-7: 4U Rack Mount Chassis Dimensions (-R402) www.aerotech.com... -
Page 18: Figure 1-8: 1U Rack Mount Chassis Dimensions (-R103)
1.3. Dimensions A3200 iPC Hardware Manual Figure 1-8: 1U Rack Mount Chassis Dimensions (-R103) www.aerotech.com... -
Page 19: Figure 1-9: 1U Rack Mount Chassis Dimensions (-R101/-R102)
A3200 iPC Hardware Manual 1.3. Dimensions Legacy Devices: Figure 1-9: 1U Rack Mount Chassis Dimensions (-R101/-R102) www.aerotech.com... -
Page 20: Figure 1-10: 1U Rack Mount Chassis With Slides Dimensions (-R101/-R102)
1.3. Dimensions A3200 iPC Hardware Manual Figure 1-10: 1U Rack Mount Chassis with Slides Dimensions (-R101/-R102) www.aerotech.com... -
Page 21: Figure 1-11: 4U Rack Mount Chassis Dimensions (-R401)
A3200 iPC Hardware Manual 1.3. Dimensions Figure 1-11: 4U Rack Mount Chassis Dimensions (-R401) www.aerotech.com... -
Page 22: Figure 1-12: 4U Rack Mount Chassis With Slides Dimensions (-R401)
1.3. Dimensions A3200 iPC Hardware Manual Figure 1-12: 4U Rack Mount Chassis with Slides Dimensions (-R401) www.aerotech.com... -
Page 23: Ac Power Setting
31°C and decreases linearly to 50% relative humidity at 40°C. Non-condensing 0 m to 2,000 m above sea level. Operating Altitude If you must operate this product above 2,000 m or below sea level, contact Aerotech, Inc. Pollution Degree 2 Pollution Typically only nonconductive pollution occurs. Operation Use only indoors www.aerotech.com... - Page 24 1.6. Environmental Specifications A3200 iPC Hardware Manual This page intentionally left blank. www.aerotech.com...
-
Page 25: Appendix A: Warranty And Field Service
Aerotech’s products are specifically designed and/or manufactured for buyer’s use or purpose. Aerotech’s liability on any claim for loss or damage arising out of the sale, resale, or use of any of its products shall in no event exceed the selling price of the unit. - Page 26 Aerotech's approval. On-site Warranty Repair If an Aerotech product cannot be made functional by telephone assistance or by sending and having the customer install replacement parts, and cannot be returned to the Aerotech service center for repair, and if Aerotech determines the problem could be warranty-related, then the following policy applies:...
-
Page 27: Appendix B: Revision History
Section 1.2. Remote Server Operation Section 1.3. Dimensions Added Section 1.5. DVI Monitor Configuration (-R103, -R402, -DT01 PC Options) 1.06 1.05 1.04 Revision changes have been archived. If you need a copy of this revision, contact Aero- 1.03 techGlobal Technical Support. 1.02 1.01 1.00 www.aerotech.com... - Page 28 Appendix B: Revision History A3200 iPC Hardware Manual This page intentionally left blank. www.aerotech.com...
-
