fluxia SMD5730 Installation Instruction

230V LED STRIP - SMD5730
153.821UK, 153.823UK
Installation instruction

Introduction

Thank you for choosing Fluxia high voltage LED strip as part of your lighting scheme. This strip is designed to provide a
powerful linear lighting source for indoor or outdoor installations. Please read these instructions to help with installation
and ensure correct practice when cutting and joining.
Warning: This product is mains operated and should only be fitted by a qualified electrical installer.

Installation

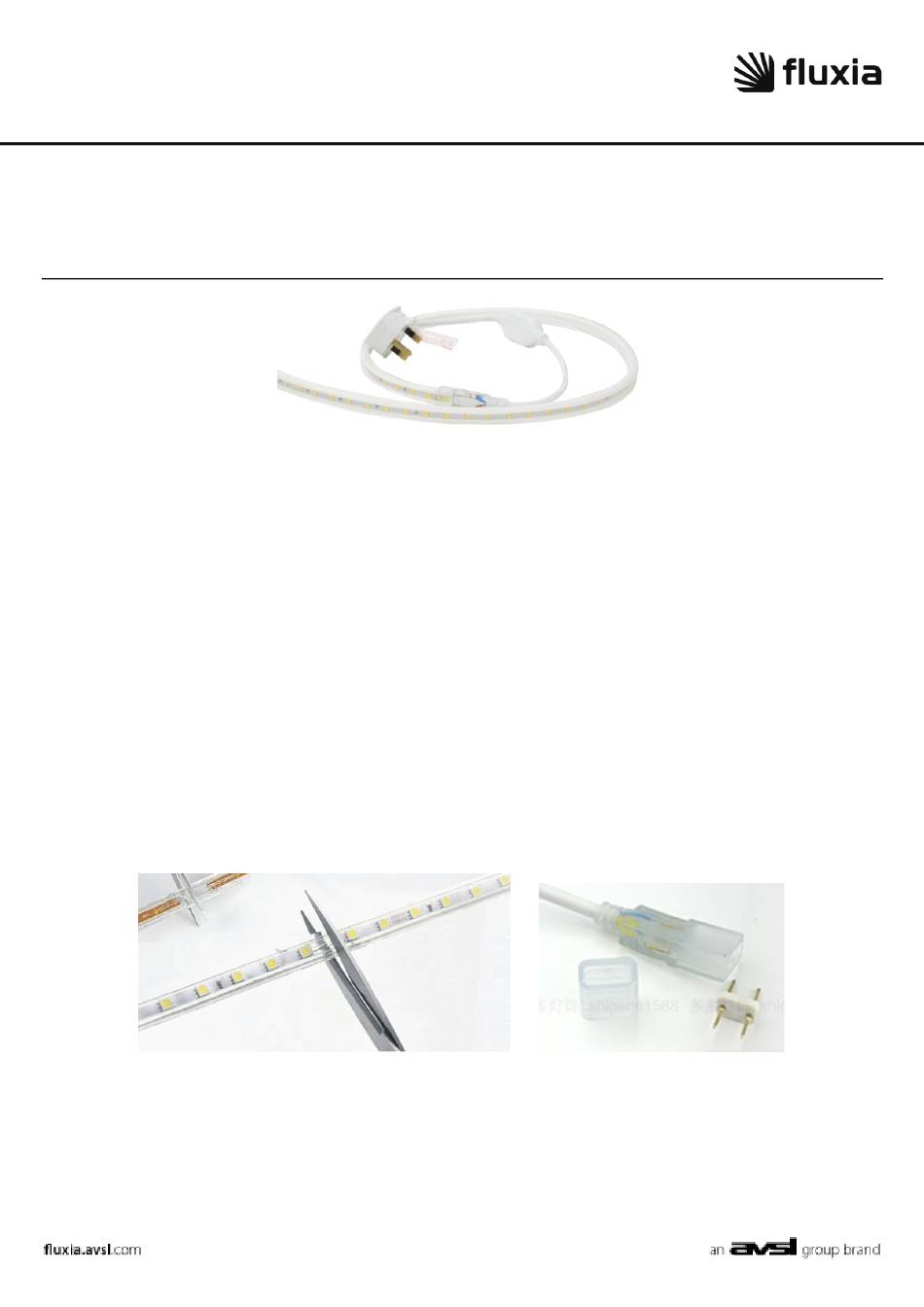

Fluxia 230V LED strip is supplied as a 50m reel with a mains lead connected at one end and terminated with an end-cap
at the other. Straight from the reel, the strip can be plugged into a mains 230Vac outlet and the strip can be situated
indoors or outdoors, thanks to the IP67 containment (the mains lead and plug must be indoors or in a waterproof
housing).
50m is the maximum length that can be powered from a single 230V mains outlet.
The strip can be cut to fit any installation at 1 metre intervals. The strip containment is diffused on all sides with a
transparent centre strip for the bright LED output. Looking at this strip, it is possible to see where the PDB inside is
joined every 1 metre (there is a gap between the ends of the PCB).
Ensure that the strip is not powered before cutting and cut cleanly through the whole containment.
The end of the powered strip will need to be fitted with an end cap (Pack of 10 = 153.853UK), using silicone glue to
secure it. This will also reinstate the waterproof protection to the strip. Fitting shrink-tubing can add additional
weatherproofing and protection.
