Walton 04LEAN0804-V1 Manual

04LEAN0804-V1
Please retain Instructions and label (attached to your building for future reference
See back of instructions
for Combi greenhouse
assembly
Before
commencing assembly
make sure you have a
suitable base ready to
erect your building
Length - 2490mm
Width - 1320mm
Height - 2072mm
Please note that we don't include xings with this product due to wall construction materials varying from house to
house. If you are unsure on the xings you require then we recommend that you consult with your local builders
merchant or a knowledgeable DIY store.
BEFORE YOU START PLEASE READ INSTRUCTIONS CAREFULLY
- Check the pack and make sure you have all the parts listed.
- When you are ready to start, make sure you have the right tools at hand
(not supplied) including a Phillips screwdriver, Stanley knife, wood saw,
step ladder and drill with 2mm bit.
- Ensure there is plenty of space and a clean dry area for assembly.
TIMBER
As with all natural materials, timber can be a ected during various weather
conditions. For the duration of heavy or extended periods of rain, swelling of the
wood panels may occur. Warping of the wood may also occur during excessive
dry spells due to an interior moisture loss. Unfortunately, these processes cannot
be avoided but can be helped. It is suggested that the outdoor building is
sprayed with water during extended periods of warm sunshine and sheltered as
much as possible during rain or snow.
Our buildings are delivered pre-treated with a water based timber treatment
however this only helps to protect during transit of your garden item. To
validate your guarantee and for better protection against weathering it is
ESSENTIAL that you treat the garden building with a wood preserver within 3
months of assembly. This will need to be re-applied annually to ensure longevity
of your building. Care must be taken when constructing the garden building
that it is not touching the ground and is on a suitable base.
BUILDING A BASE
When thinking about where the building and base is going to be constructed: Ensure that there will be access to all sides for maintenance work and
annual treatment.
TYPES OF BASE
- Concrete 75mm laid on top of 75mm hard-core.
- Slabs laid on 50mm of sharp sand.
Ensure the base is level and is built on rm ground, to prevent distortion. Refer to diagrams for the base dimensions, The base should be slightly
smaller than the external measurement of the building, i.e. the cladding should overlap the base, creating a run o for water. It is also recommended
that the oor be at least 25mm above the surrounding ground level to avoid ooding.
Whilst all products manufactured at Walton Garden Buildings Limited are made to the highest standards of Safety and in the case of childrens products
independently tested to EN71 level, Walton Garden Buildings Limited cannot accept responsibility for your safety whilst erecting or using this product.
x2
This building should be erected by
two people.
For ease of assembly, it is advisable to
pilot drill all screw holes and ensure
all screw heads are countersunk.
2mm Drill bit
Winter = High Moisture = Expansion
Summer = Low Moisture = Contraction
For Assistance Please
Contact Customer Care on
01636 880514

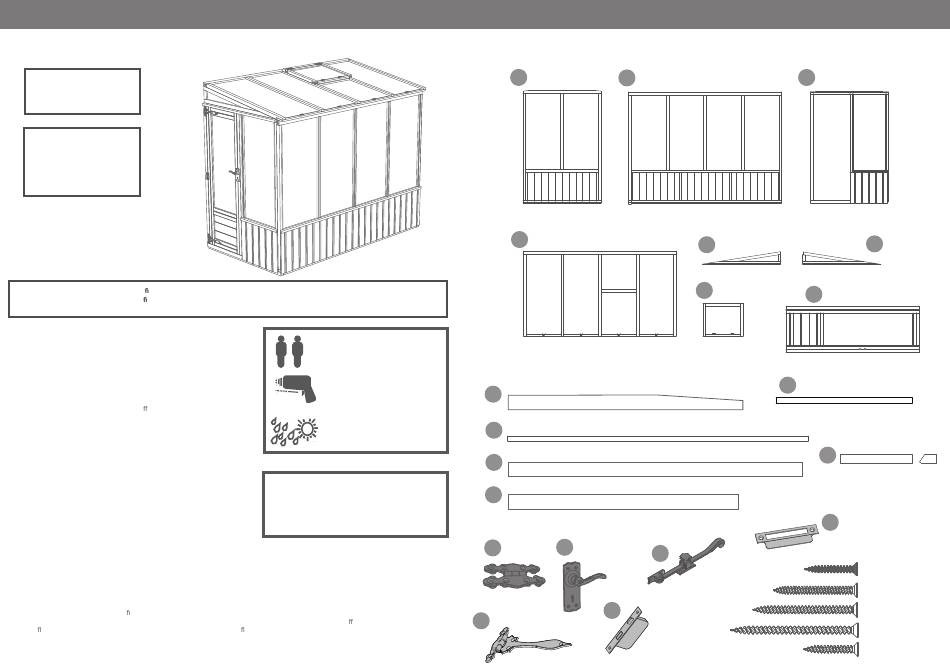

Contents
Side Panels
1 2
Rear panel
4
Roof panel
Fixing Kit
Cover strip -1262mm x2
9
10 Vertical Beading strip -1720mm x2
Large panel joist - 2380mm
11
Small panel joist -1306mm x2
12
Nail Bag & Ironmongery
x3 Small 2x Mortice lock
15 17
hinge
Handle
18
16
x2 Long
hinge
Mortice Lock
3
Lagre side panel Door panel
5
Gable top left Gable top right
7
8
Opening Window
13
Horizontal Beading strip -580mm
14
20
19
Casement Stay
6
Door
Window block- 650mm
Key Plate
30mm Black Screw x47
40mm Screw x10
50mm Screw x20
70mm Screw x40
30mm Screw x 15
