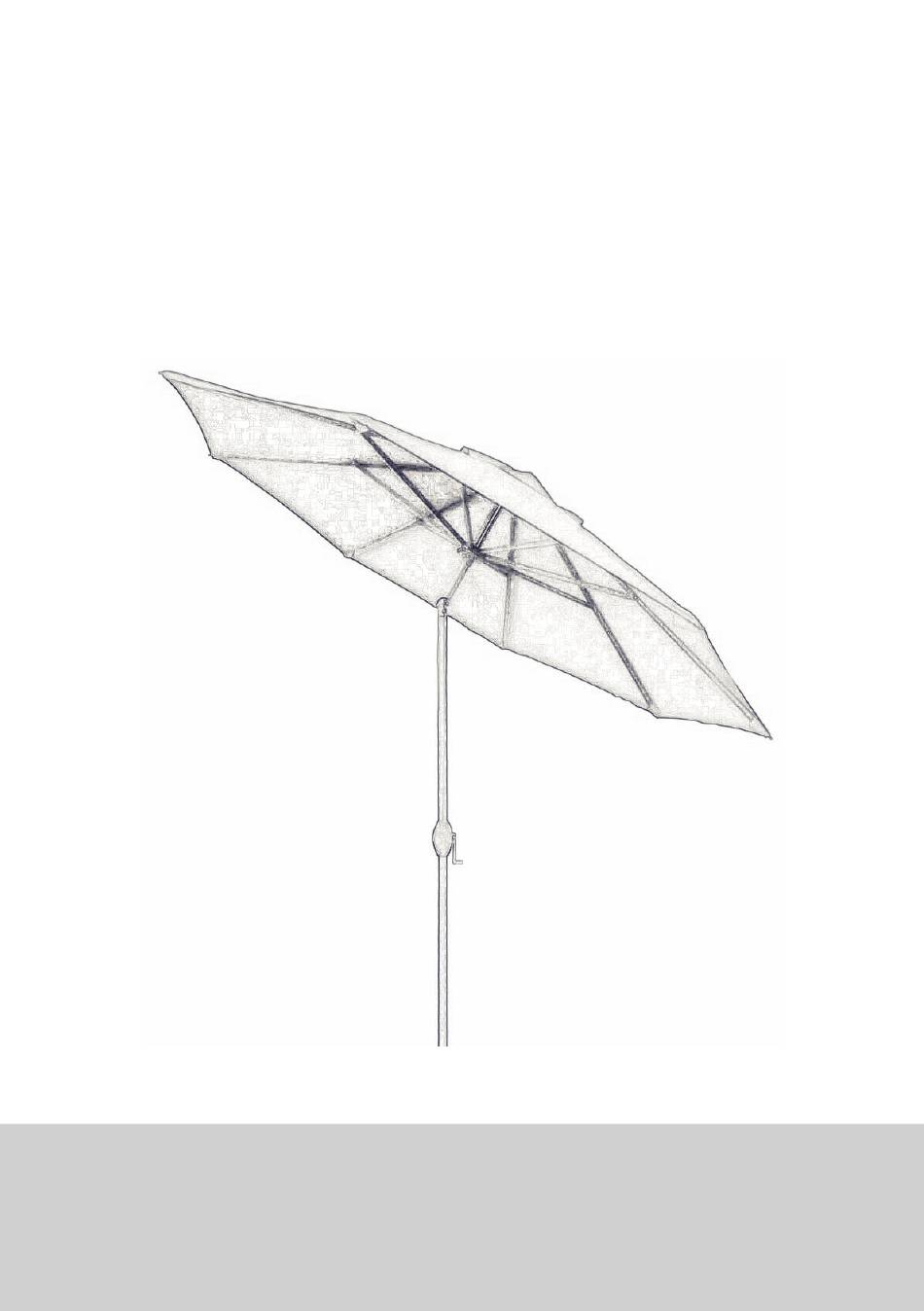

- Page 1 9 Feet Umbrella with Auto Tilt and Crank Installation Manual...
- Page 2 Frame & Ribs Tilt mechanism Upper pole Umbrella supplied is fully assembled. Please read instructions prior to installation. Take all par ts out of the box. If any par ts are missing, please do not return to the place of purchase directly. Please email us. A.
- Page 3 Screw to connect the t wo par ts (A and B)
- Page 4 . To tilt the umbrella, just need to continue to turn the crank handle clockwise till the C part reaches the bot tom. Turn the crank handle anticlockwise in the down direction to close the canopy. To close the umbrella it must be in the upright position.
- Page 5 MINIMUM Base Size Shade Sizs(ft) Positioning Suggestions(Ibs) Thru Table Free Standing The pole diameter is 1.5 inches (38mm)，the base diameter needs to be wider than 1.5 inches. And if you install this umbrella with your table, please make sure the crank handle is higher than your table. 2.62 feet...
