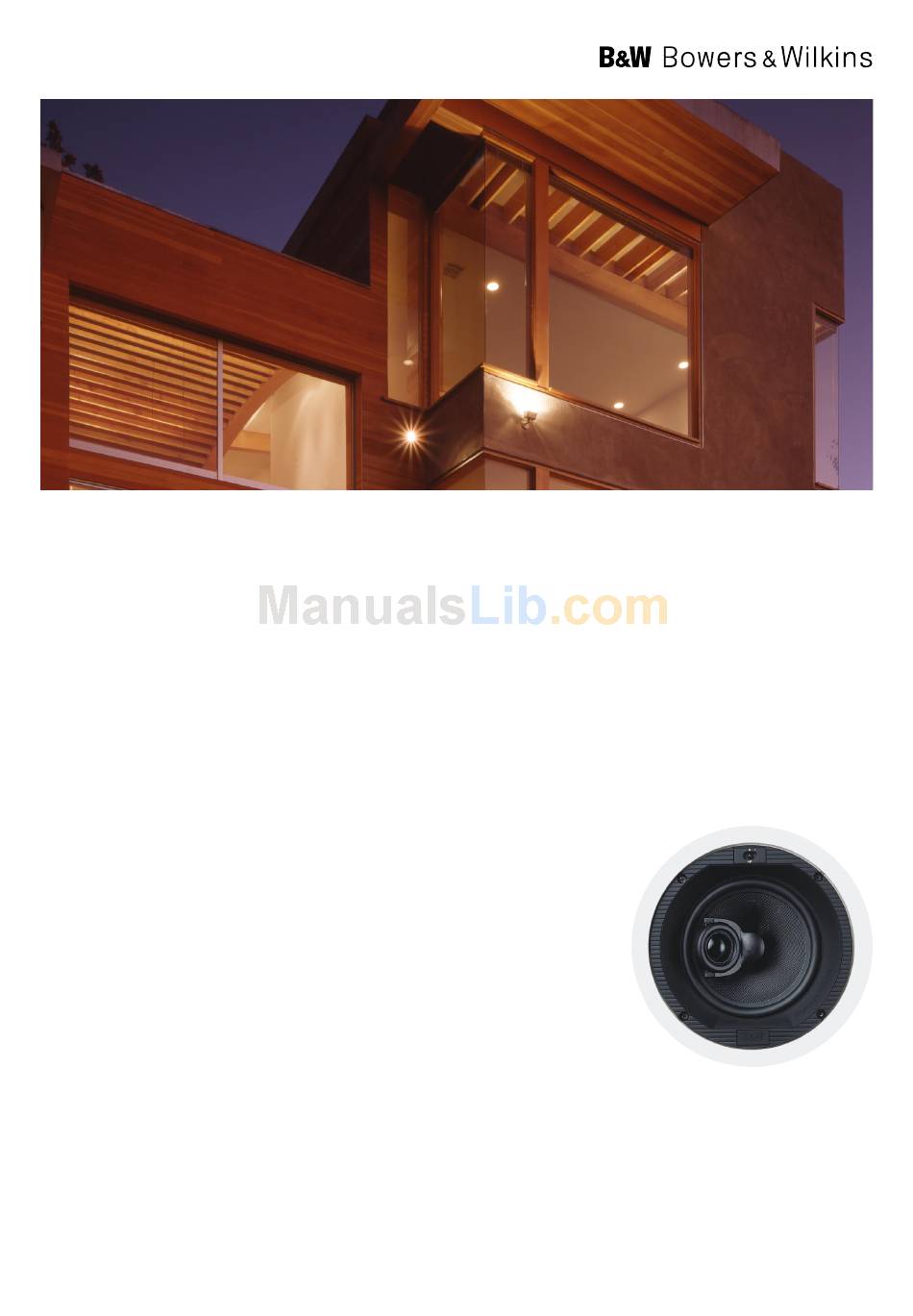

CCM 636
See nothing, hear everything
The CCM 636 is a ceiling speaker distinguished by its adjustable tilt offset 25mm
(1 in) soft dome tweeter. It brings both smoother and more detailed high frequency
performance to a package that also includes a woven glass fibre 165mm (6½ in)
bass/midrange driver and three-position switchable high frequency equalisation.
Installation simplicity is catered for by a simple and effective integrated swing out
dog fixing chassis. CCM 636 is a classically simple and cost effective route to high
quality ceiling mount sound.
Technical Specification
Technical features
Description
Drive units
Frequency range
Frequency response
Sensitivity
Nominal impedance
Crossover frequency
Recommended amplifier power
Frame size
Cut-out size
Min depth req
Net weight
Finish
Accessories
Three-position EQ switch
Adjustable offset tilt soft dome tweeter
Swing-out dog fixings
2-way in-ceiling speaker system
1x ø25mm (1 in) soft dome high-frequency
1x ø165mm (6.5 in) woven fibreglass mid/bass
-6dB at 40Hz and 30kHz
50Hz-22kHz ±3dB on reference axis
89dB spl (2.83V, 1m)
8Ω (minimum 3.0Ω)
3.2kHz
20W - 130W continuous into 8Ω on unclipped programme
Diameter: 232mm (9.1 in)
Diameter: 205mm (8.1 in)
103mm (4.1 in) from ceiling surface
1.5kg (3.3lb)
Semi-matt white suitable for customising or pre-painting
(paint mask included)
Pre-mount kit for new construction (PMK c65)
©2005 B&W Group Ltd.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bowers & Wilkins CCM 636
Summary of Contents for Bowers & Wilkins CCM 636
-
Page 1: Technical Specification
Installation simplicity is catered for by a simple and effective integrated swing out dog fixing chassis. CCM 636 is a classically simple and cost effective route to high quality ceiling mount sound. -
Page 2: Frequency Response
External dimensions shall be 232mm (9.1in) diameter x 107mm (4.2in) depth. Total weight shall be 1.5kg (3.3lb). The loudspeaker system shall be the B&W CCM 636. No other system shall be acceptable unless the above combined performance are equalled or exceeded.
