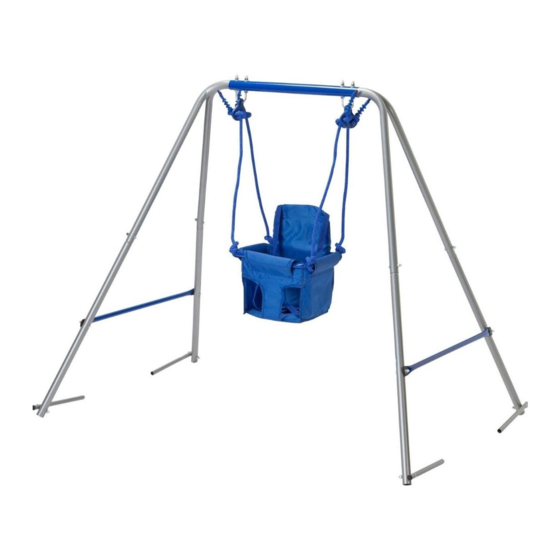

Nursery Swing
Assembly & User Instructions -
Important
Age: 12 – 36
months.
Maximum user
weight: 25kg
Important -
Please read these instructions fully before assembly or use.
These instructions contain important information which will help you get the best from your product and
ensure safe and correct assembly, use and maintenance.
If you need help or have damaged or missing parts, call the Customer Helpline: (+44) 0330 0904 420
Please keep for future reference
Assembly
Tips: It will take around 30
minutes to assemble.
2 Adults required
367/3537
134728347
Advertisement
Related Manuals for Chad Valley Nursery Swing
Summary of Contents for Chad Valley Nursery Swing
- Page 1 Nursery Swing Assembly & User Instructions - Please keep for future reference 367/3537 134728347 Important Assembly Tips: It will take around 30 Age: 12 – 36 months. minutes to assemble. Maximum user 2 Adults required weight: 25kg Important - Please read these instructions fully before assembly or use.
- Page 2 Contents Safety Information Parts Assembly Instructions Care and Maintenance...
- Page 3 Safety Information Important –Please read these instructions fully before assembly or use. 22. Please take note: As an extra precaution, check this toy WARNING regularly for signs of wear and damage. 23. For safety reasons, this swing MUST be anchored into the 1.
- Page 4 Parts call the Customer Helpline: (+44) 0330 0904 420 Beam x 1pcs Rail x 2pcs Leg x 2pcs Nursery seat x 1pcs Leg x 2pcs Anchor x4pcs Leg x 4pcs Plastic Cap x4pcs Note: x4(M6x42mm) x4(M6x38mm) x4(M6x53mm) ( M8 ) ×...
- Page 5 Assembly Instructions Step 1 Insert Legs (2) and (3) into Beam (1) as shown. Please note the order of Legs (2) and (3) need to be inverse on the two sides of the beam.
- Page 6 Assembly Instructions Step 2 Insert leg(4) into leg(2) and leg(3) on both sides. Secure using bolt(B), flat spring(F), spring washer(H) and nuts(J). Step 3 Attach rail(5) to leg(4) on both sides using bolt(D), flat washer(F), spring washer(H) and nuts(J). TIPS: #1 Make sure you insert plastic cap (8) into rail (5) first.
- Page 7 Assembly Instructions Step 4 Loop U-bolt (A) through the plate at the top of the swing and secure it to Beam (1) using E, G and I in the sequence as shown. x 4 x 4...
- Page 8 Assembly Instructions Step 5 Attach anchor(7) to the bottom of leg(4), using bolt(C), flat spring(F),spring washer(H) and nuts(J). IMPORTANT: AFTER COMPLETING ALL THE STEPS, GO OVER THE ENTIRE UNIT AND TIGHTEN ALL BOLTS BEFORE ALLOWING CHILDREN TO USE. x 4pcs x 8pcs x 4pcs x 4pcs...
- Page 9 Assembly Instructions To secure the child in the nursery swing Note : Lock the seat belt tightly over the child. WARNING! ADULT SUPERVISION REQUIRED AT ALL TIMES.
- Page 10 If you need help or have damaged or missing parts,call the Customer Helpline: (+44) 0330 0904 420 Produced for Chad Valley Toys. Argos Ltd. Country of origin: China Address: 489 - 499 Avebury Boulevard, Central Milton Keynes, MK9 2NW. www.argos.co.uk...
