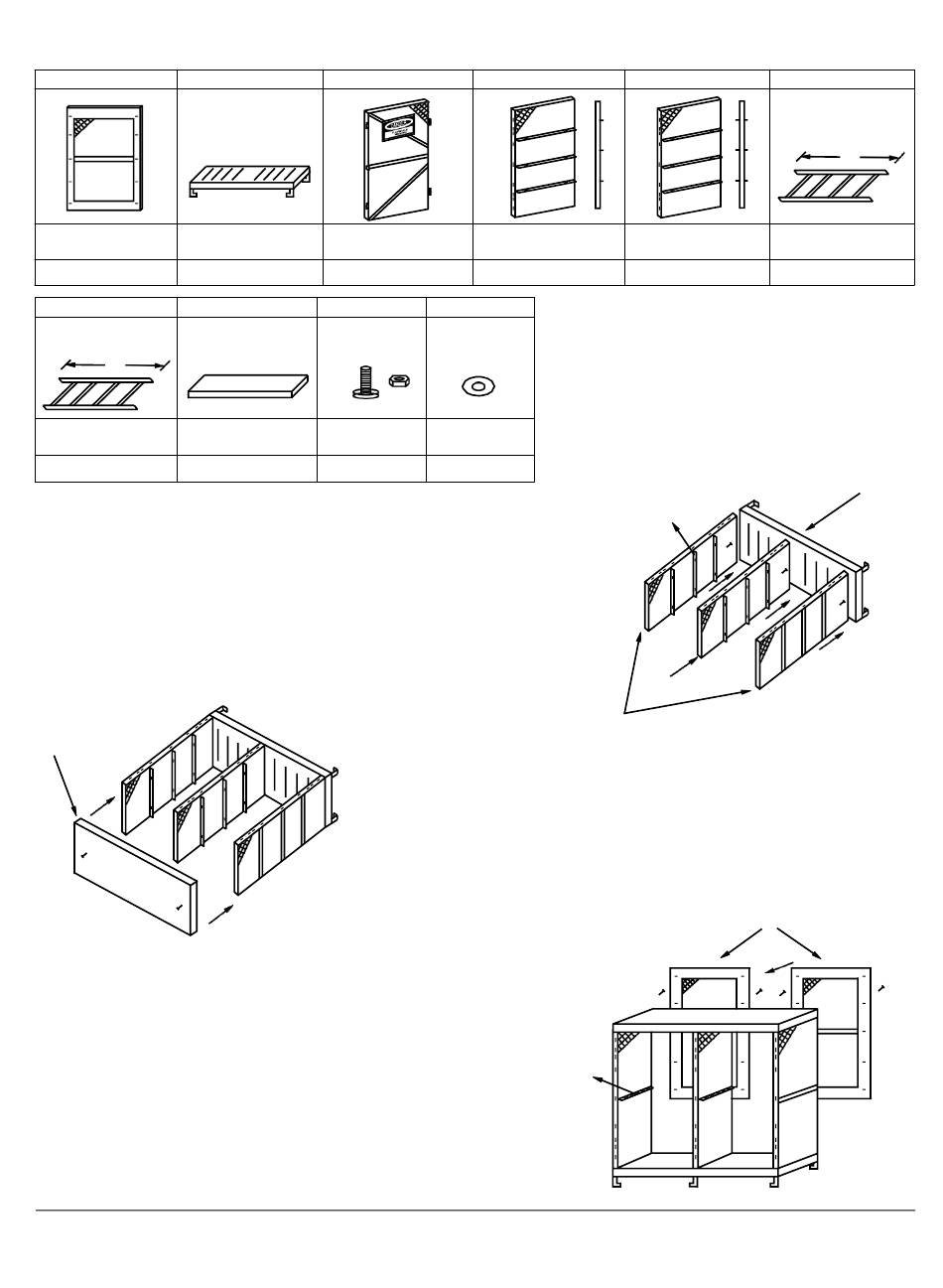

Assembly Instructions
A
Back panel
2 PCS
G
27"
Shelf B
Top panel
3 PCS
*Caution: Two person assembly is recommended.
1. In an open assembly area free of obstructions, place the base (B) upright as
shown. Assemble each side panel (D) and mid-panel (E) by hand-tightening the
bolts, washers and nuts provided (I & J). Panels should be mounted such that
the flat part of shelf support rail will face upward.
H
3. Connect the back panels (A) to side panels (D) and mid-panel (E) using bolts,
washers, and nuts provided (I & J). Ensure the unit remains square and firmly
tighten the nuts. Note: out of square assembly will prevent the door from closing properly.
DR. SAFE
"For A safe Environment!"
B
C
.
.
.
Base
Door
1 PC
2 PCS
H
I
1/4 " × 3/4 "
Bolt and nut
1 PC
65 Pairs
2. Assemble the top panel (H) to the side panels (D) and mid-panel (E). Hand-tighten the
bolts, washers, and nuts provided (I & J). Ensure the unit is square and firmly tighten
the bolts connecting the side and mid panels to the base. Tighten the bolts connecting
the side and mid panels to the top panel. Set unit upright.

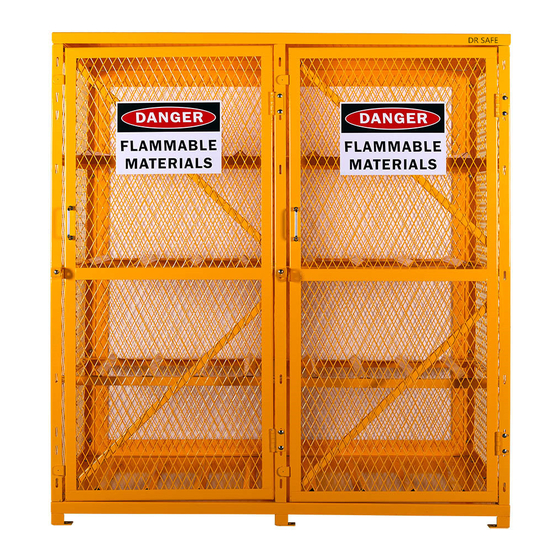

CYLINDER STORAGE CABINET
D
Side panel
2 PCS
J
Washer
65 PCS
Flat edge of rail facing upward
Flat edge of rail facing upward
MODEL: CCH016
E
Mid-panel
1 PC
E
D
A
F
29"
Shelf A
3 PCS
B
Advertisement
Table of Contents
Related Manuals for DR. SAFE CCH016
Summary of Contents for DR. SAFE CCH016
- Page 1 CYLINDER STORAGE CABINET Assembly Instructions MODEL: CCH016 29" Back panel Base Mid-panel Door Side panel Shelf A 2 PCS 1 PC 2 PCS 2 PCS 1 PC 3 PCS 27" 1/4 " × 3/4 " Shelf B Top panel Bolt and nut...
- Page 2 CYLINDER STORAGE CABINET Assembly Instructions MODEL: CCH016 4. Attach the doors (C) to the assembly using bolts, washers, and nuts provided (I & J). Note: that the hinges are configured for a left-hand swing, but mounting hardware can be removed and reversed to a right-hand swing if desired. Hand-tighten nuts, adjust the door's position such that an even gap is maintained on all sides.
