Edge Lighting Cody CPL-6-P Series Installation Instructions

© 2015 Edge Lighting. All Rights Reserved.
Installation Instructions for

IMPORTANT INFORMATION

- This product is ETL listed for indoor location
- This product is wall mounted only.
- This instruction shows a typical installation.
SAVE THESE INSTRUCTIONS!

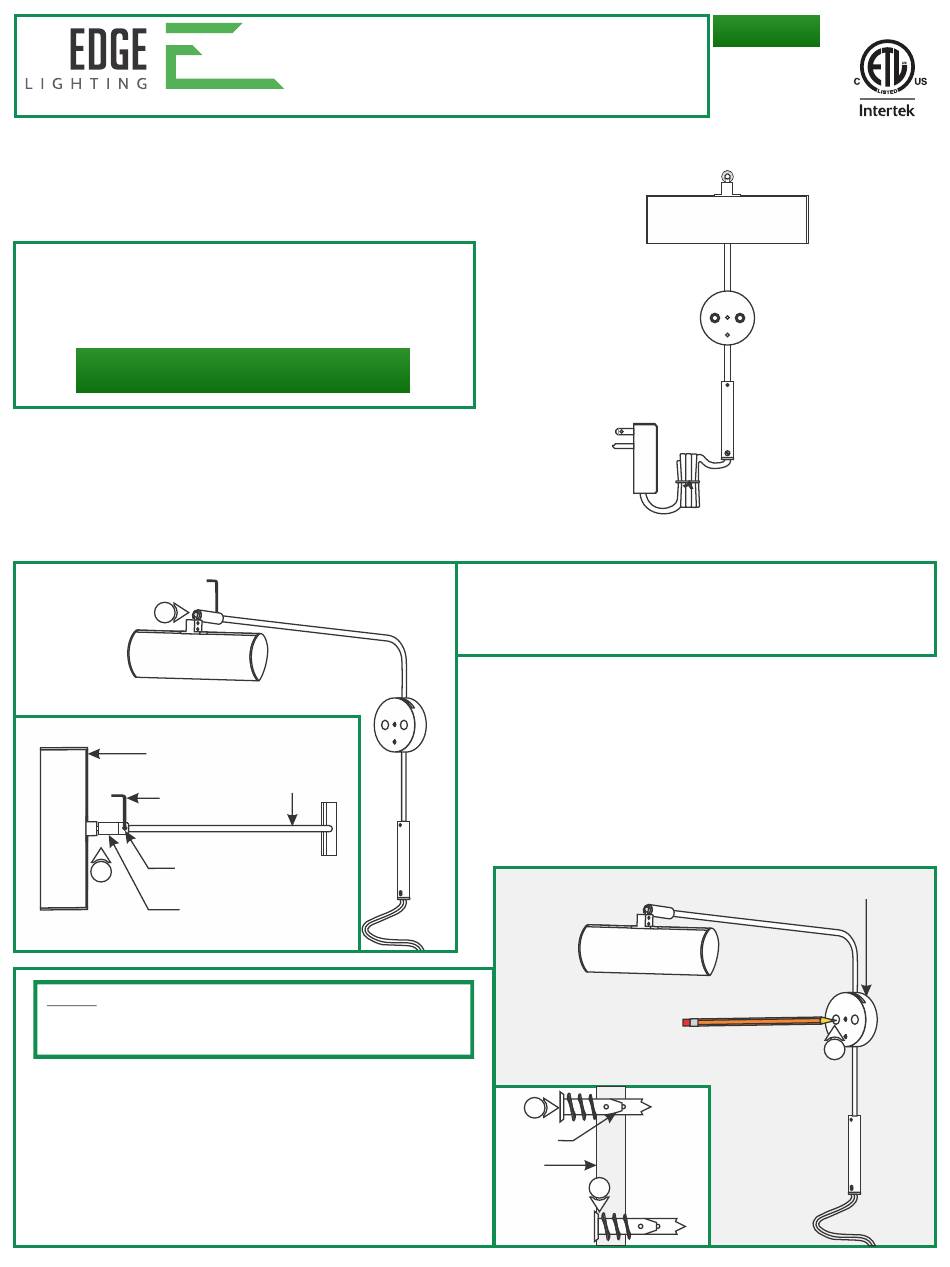

Install the Fixture

A
1
HEAD
1.5MM ALLEN
WRENCH
M3 SET SCREW
1
SWIVEL
CONNECTOR
NOTE: The Cody 6" plug-in comes with 9' of cord and
plug-in power supply. Make sure there is a power outlet
near to where Cody 6" will be mounted.
2: Hold the mounting bracket against the wall where Cody 6"
will be mounted. Level the mounting bracket and mark the
bracket holes on the wall.
3: Tap the anchors onto the marked points into the wall up to
the threaded portion with a hammer.
4: Screw the threaded portion of the anchors in with the a
Phillips screwdriver.
1718 W. Fullerton Ave
Chicago, IL 60614
Tel: 773-770-1195
Fax: 773-935-5613
www.edgelighting.com
info@edgelighting.com

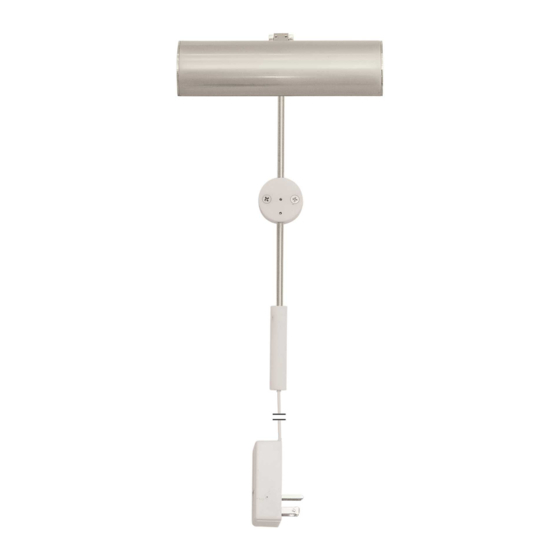

Cody 6" Plug-In Picture Light
