RUD WBPG Series Safety Instructions

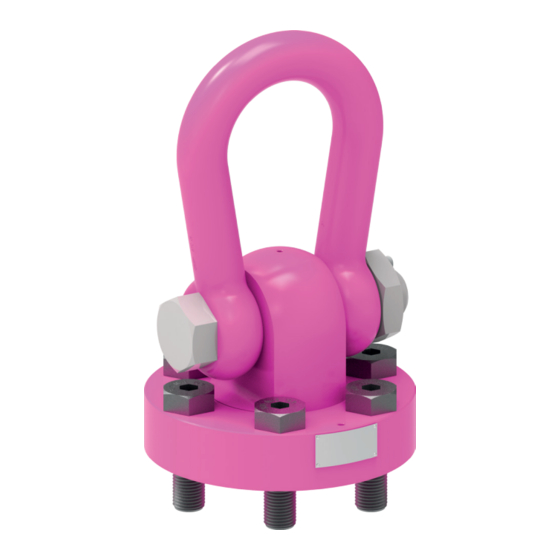

Hoist ring boltable on plate

Hide thumbs

Hoist ring boltable on plate

> WBPG <

Safety instructions

This safety instruction/declaration of the manufacturer has to be kept on

file for the whole lifetime of the product.

– Translation of the Original instructions –

EG-Konformitätserklärung

entsprechend der EG-Maschinenrichtlinie 2006/42/EG, Anhang II A und ihren Änderungen

RUD Ketten

Hersteller:

Rieger & Dietz GmbH u. Co. KG

Friedensinsel

73432 Aalen

Hiermit erklären wir, dass die nachfolgend bezeichnete Maschine aufgrund ihrer Konzipie-

rung und Bauart, sowie in der von uns in Verkehr gebrachten Ausführung, den grundle-

genden Sicherheits- und Gesundheitsanforderungen der EG-Maschinenrichtlinie

2006/42/EG sowie den unten aufgeführten harmonisierten und nationalen Normen sowie

technischen Spezifikationen entspricht.

Bei einer nicht mit uns abgestimmten Änderung der Maschine verliert diese Erklärung ihre

Gültigkeit.

_____________________________________________

Produktbezeichnung:

Wirbelbock WBPG

Folgende harmonisierten Normen wurden angewandt:

_________________

DIN EN 1677-1 : 2009-03

_________________

Folgende nationalen Normen und technische Spezifikationen wurden außerdem angewandt:

_________________

BGR 500, KAP2.8 : 2008-04

_________________

Für die Zusammenstellung der Konformitätsdokumentation bevollmächtigte Person:

Michael Betzler, RUD Ketten, 73432 Aalen

_____________________________________________

Dr.-Ing. Arne Kriegsmann,(Prokurist/QMB)

Aalen, den 26.09.2016

Name, Funktion und Unterschrift Verantwortlicher

RUD Ketten

Rieger & Dietz GmbH u. Co. KG

73428 Aalen/Germany

Tel. +49 7361 504-1370

Fax +49 7361 504-1460

www.rud.com

sling@rud.com

_________________

DIN EN ISO 12100 : 2011-03

_________________

Lifting points bolted

WBPG

EC-Declaration of conformity

According to the EC-Machinery Directive 2006/42/EC, annex II A and amendments

RUD Ketten

Manufacturer:

Rieger & Dietz GmbH u. Co. KG

Friedensinsel

73432 Aalen

We hereby declare that the equipment sold by us because of its design and construction,

as mentioned below, corresponds to the appropriate, basic requirements of safety and

health of the corresponding EC-Machinery Directive 2006/42/EC as well as to the below

mentioned harmonized and national norms as well as technical specifications.

In case of any modification of the equipment, not being agreed upon with us, this declara-

tion becomes invalid.

Product name:

_____________________________________________

Load ring WBPG

The following harmonized norms were applied:

_________________

DIN EN 1677-1 : 2009-03

_________________

The following national norms and technical specifications were applied:

_________________

BGR 500, KAP2.8 : 2008-04

_________________

Authorized person for the configuration of the declaration documents:

Michael Betzler, RUD Ketten, 73432 Aalen

_____________________________________________

Dr.-Ing. Arne Kriegsmann,(Prokurist/QMB)

Aalen, den 26.09.2016

Name, function and signature of the responsible person

_________________

DIN EN ISO 12100 : 2011-03

_________________

WBPG

Table of Contents

Need help?

Do you have a question about the WBPG Series and is the answer not in the manual?

Questions and answers

Summary of Contents for RUD WBPG Series

Page 1 _________________ _________________ _________________ _________________ Für die Zusammenstellung der Konformitätsdokumentation bevollmächtigte Person: Authorized person for the configuration of the declaration documents: Michael Betzler, RUD Ketten, 73432 Aalen Michael Betzler, RUD Ketten, 73432 Aalen _____________________________________________ _____________________________________________ Dr.-Ing. Arne Kriegsmann,(Prokurist/QMB) Dr.-Ing. Arne Kriegsmann,(Prokurist/QMB) Aalen, den 26.09.2016...
Page 2: Safety Instructions
1.25 x M in cast iron (for example GG 25) • Their usage is intended to be used as lifting means. (M = diameter of RUD lifting point bolt, for ex. M 20) • WBPG lifting points are only suitable for loading in the •...
Page 3 For through hole connec- loading at sharp edged. tions RUD bolts with RUD lock nuts must be used. Secure always the boltable connections of the lifting points which stay permanently at the connection point, f.e.
Page 4: Inspection / Repair
• Prior to loading adjust the WBPG lifting point towards Permitted the direction of the load force. loading area WARNUNG WBPG lifting points are only suitable for loading Prohibited in the pivoting direction of the suspension ring. loading area  ...
Page 5: Maintenance & Storage
Maintenance / storage 4.2 Test criteria for the regular visual inspection by the user Lifting points must be stored protected from weather in- • Correct bolt sizes and nut sizes, bolt quality and screw- fluences and agressive materials. in lengths For the regularly maintaining and lubrication of the WBPG •...
Page 6 [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] [mm] pitch 6x RUD - Kombikopf WBPG 85 t/ 6000 60° (multiple head) 7993712 400 mm Standard M48x160 - 10.9 6x RUD - Kombikopf WBPG 100 t/ 6000 60° (multiple head)
