- Page 1 GT-540P-3GWA-OEM2 user’s manual v1.0 GT-540P-3GWA-OEM2 Intelligent 3G Remote Terminal Unit With GPS User’s Manual v1.0 High Quality, Industrial Data Acquisition, and Control Products 2013/10 Ver. 1.0...
- Page 2 GT-540P-3GWA-OEM2 user’s manual v1.0 Warranty All products manufactured by ICP DAS are warranted against defective materials for a period of one year from the date of delivery to the original purchaser. Warning ICP DAS assumes no liability for damages consequent to the use of this product.
-
Page 3: Table Of Contents
LED indicators....................15 Installing GT-540P-3GWA-OEM2..............16 How to reset GT-540P-3GWA-OEM2............17 Charge and discharge of Li-Battery..............17 3. Installing GT-540P-3GWA-OEM2 Utility ..........18 Installing .NET Framework................18 Installing GT-540P-3GWA-OEM2 Utility ............. 20 4. GT-540P-3GWA-OEM2 Utility Operation ..........23 Main menu...................... 24 Operation Language .................. -
Page 4: Introduction

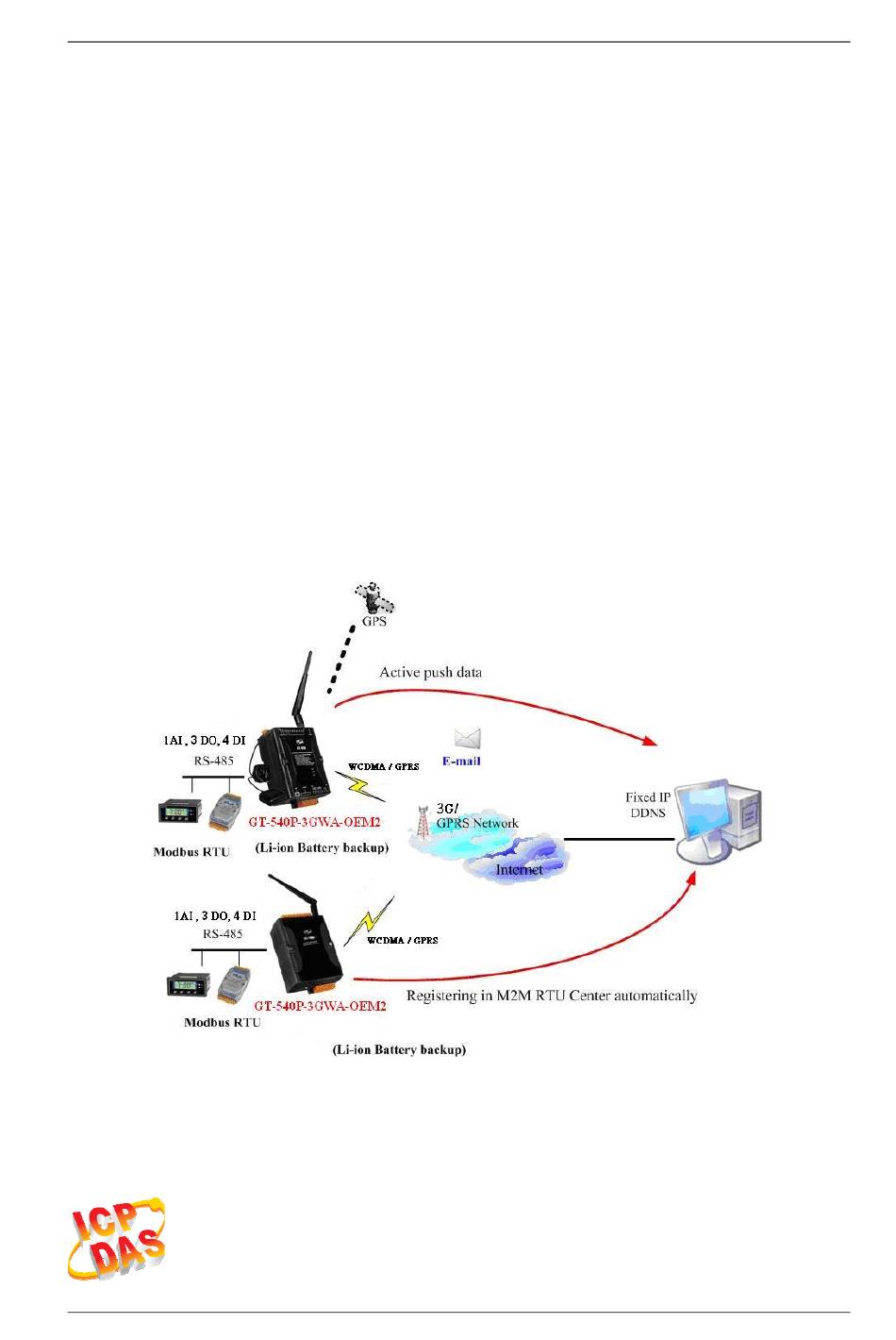

3G/GPRS for users to choose. The simple I/O linkage function of the GT-540P-3GWA-OEM2 can reach the real time control in the local field. It also supports Li-ion battery as another power source when the main power is failed temporarily. - Page 5 Modbus RTU device connectivity The GT-540P-3GWA-OEM2 is built-in Modbus RTU protocol. That can make any Modbus RTU device connect to the GT-540P-3GWA-OEM2. By the way of GT-540P-3GWA-OEM2, Modbus RTU devices can be used in 3G/GPRS remote system. The max Modbus RTU device can be connected to the GT-540P-3GWA-OEM2 is three.
-
Page 6: Features
RTU device by the interface on PC. By using the M2M RTU API tool and M2M RTU center software, any remote monitoring system can be achieved easily and efficiently. For SCADA system, the M2M.OPC server is provided to connect to SCADA by OPC interface. GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 4/53... - Page 7 IO data. For detail information and downloading the software, please refer to: http://ftp.icpdas.com/pub/cd/usbcd/napdos/m2m/rtu/rtu_center GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 5/53...
- Page 8 ICP DAS M2M RTU Library is a software tool package for M2M RTU products. It provides the seamless connection with M2M RTU products (G-4500 RTU, GT-540P-3GWA-OEM2…) of ICP DAS for the user-designed system. With the APIs in this library, programmer can access M2M RTU devices by public software development environments, like VC, VB, BCB, visual studio.Net…...
-
Page 9: Applications
GT-540P-3GWA-OEM2 user’s manual v1.0 Applications Earthquake and Landslide Alarm system Hydrologic monitoring System Vending machine automation system Sewage flow monitoring system Piped water monitoring system Vehicle monitoring system Vehicle monitoring System GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 7/53... - Page 10 GT-540P-3GWA-OEM2 user’s manual v1.0 Hydrologic monitoring System GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 8/53...
-
Page 11: How To Use Gt-540P-3Gwa-Oem2
GT-540P-3GWA-OEM2 user’s manual v1.0 How to use GT-540P-3GWA-OEM2 GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 9/53... -
Page 12: Hardware
3 A @ 250 VAC 100,000 ops Mechanical Life 20,000,000 ops. at no load Analog Input Channels Resolution 12 bit Input Range/Type 0 ~ 20 mA 2G System Quad-band 850/900/1800/1900 MHz GPRS GPRS multi-slot : class 10/8 GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 10/53... - Page 13 91 mm x 132 mm x 52 mm (W x H x D) Installation DIN-Rail Environment Operating Temperature -25 °C ~ +75 °C Storage Temperature -40 °C ~ +80 °C Humidity 5 ~ 95% RH, non-condensing GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 11/53...
-
Page 14: Appearance And Pin Assignments
GT-540P-3GWA-OEM2 user’s manual v1.0 Appearance and pin assignments The GT-540P-3GWA-OEM2 is with the GPS antenna connector and LEDs. The following figure shows the appearance of GT-540P-3GWA-OEM2. DI/DO COM Port & Power Input Terminal Terminal Assignment Assignment Ground for COM RxD1... -
Page 15: Dimensions
GT-540P-3GWA-OEM2 user’s manual v1.0 Dimensions GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 13/53... -
Page 16: Di/Do Internal Structure And Wire Connection
GT-540P-3GWA-OEM2 user’s manual v1.0 DI/DO Internal Structure and Wire Connection (1) DI Wire Connection (2) Relay Wire Connection GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 14/53... -
Page 17: Led Indicators
Modem fail GPRS Blanking per 3 sec Mode WCDMA Blanking (not 3 sec) Twinkling twice per 3 sec Mode STA(Orange)：System LED is to indicate if the GT-540P-3GWA-OEM2 is normal or fail. Condition WCDMA/GPRS Normal PIN code is wrong External power Fail... -
Page 18: Installing Gt-540P-3Gwa-Oem2
GT-540P-3GWA-OEM2 user’s manual v1.0 Installing GT-540P-3GWA-OEM2 It needs to follow these steps to install the GT-540P-3GWA-OEM2 below: 1. Install the 3G/GPRS antenna. GT-540P-3GWA-OEM2 must install GPS antenna additionally. 2. Plug in the normal SIM card (Before apply the SIM card, confirm it is OK by the mobile phone.) -
Page 19: How To Reset Gt-540P-3Gwa-Oem2
GT-540P-3GWA-OEM2, the power supplying to GT-540P-3GWA-OEM2 is from Li-Battery. When the power is only from Li-Battery, the running time of the GT-540P-3GWA-OEM2 is depended on the frequency of transmission and the volume of Li-battery. We suggest users to exchange the Li-Battery every 6 months. -
Page 20: Installing Gt-540P-3Gwa-Oem2 Utility
Installing GT-540P-3GWA-OEM2 Utility It needs the runtime environment with .NET Framework 2.0 or above to execute the GT-540P-3GWA-OEM2 Utility in the PC. If there has .NET Framework 2.0 or above in the PC, the section 3.1 can be omitted. Installing .NET Framework Please download the .NET Framework 2.0 on the Microsoft web site and install it. - Page 21 GT-540P-3GWA-OEM2 user’s manual v1.0 (3) The installation process would be going (4) After finishing the installation, press “Finish＂ to exit the program. GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 19/53...
-
Page 22: Installing Gt-540P-3Gwa-Oem2 Utility
Number) and the installation figure is as follows: (1) Press “Next＂ to start the installation procedure. (2) Select the installation path. The default path is ＂C:\Progrm Files\GT-540P-3GWA-OEM2 Utility＂. Press “Next＂ to the next step. GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 20/53... - Page 23 GT-540P-3GWA-OEM2 user’s manual v1.0 (3) Input the name shown in “All Programs＂. Press “Next＂ to the next step. (4) After finishing the installation procedure, press “OK＂ to the next step GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 21/53...
- Page 24 GT-540P-3GWA-OEM2 user’s manual v1.0 (5) Press ＂Finish＂ to finish the installation procedure. (6) Launch GT-540P-3GWA-OEM2 Utility from the start menu ＂Start All Programs GT-540 Utility GT-540P-3GWA-OEM2 Utility＂. GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 22/53...
-
Page 25: Gt-540P-3Gwa-Oem2 Utility Operation
GT-540P-3GWA-OEM2 user’s manual v1.0 GT-540P-3GWA-OEM2 Utility Operation Before GT-540P-3GWA-OEM2 utility is connected to the PC correctly, please confirm these following steps: 1. The STA LED is blanking. There are 2 kinds of blanking in GT-540P-3GWA-OEM2. STA LED Description Blanking per 1 sec Normal mode The pin code is wrong. -
Page 26: Main Menu
GT-540P-3GWA-OEM2 user’s manual v1.0 Main menu The main menu of GT-540P-3GWA-OEM2 Utility includes the following sections: 1. Tool Menu (1) “COM”: port number connecting GT-540P-3GWA-OEM2. (2) Login/Logout Before operating GT-540P-3GWA-OEM2, users need to login to GT-540P-3GWA-OEM2 Utility. After login the system successfully, the menu item “login”... - Page 27 (2) Device Status: Display these peripheral devices status including microSD, 3G/GPRS, GPS and Modbus RTU. (3) “Device time”: Display or set the RTC time of GT-540P-3GWA-OEM2 in this item. It is also can get the information of the last and next time of the return report in E-mail mode.
-
Page 28: Operation Language
GT-540P-3GWA-OEM2 user’s manual v1.0 Operation Language GT-540P-3GWA-OEM2 Utility only supports English version currently. In the future, the Traditional Chinese and Simplified Chinese will be supported from the “language” menu bar. GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 26/53... -
Page 29: Login
(3) If you are the first time to login, please set the system time of GT-540P-3GWA-OEM2. If the pin code in GT-540P-3GWA-OEM2 is not correct, the STA led would be blanking per 50 ms and GT-540P-3GWA-OEM2 utility would ask for users to input Pin or PUK code. - Page 30 GT-540P-3GWA-OEM2 user’s manual v1.0 GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 28/53...
- Page 31 SIM card would be ineffective forever. Therefore, it is important to input the correct PUK code. If the PIN or PUK code is correct, the STA led would blank per second. Users can operate other function of GT-540P-3GWA-OEM2 in this utility. GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 29/53...
-
Page 32: Main Parameters
SIM card. (Range : 0~20 characters) Mode Operation mode: 1. RTU mode- In this mode, GT-540P-3GWA-OEM2 would transfer I/O data (local I/O, Modbus device and GPS data) to the M2M RTU center by 3G/GPRS connection periodically. 2. E-Mail mode: Transfer I/O data by the e-mail attached file through 3G/GPRS connection periodically. - Page 33 (Range : 0~31 Characters) GPRS User Password The setting is important factor when connecting to a GPRS network. Check with your GPRS service provider for details. (Range : 0~31 Characters) (3) RTU Mode GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 31/53...
- Page 34 Remote OPC Server. (Range: 1 ~ 65535) Data Update Period(sec) Set the report time interval. The GT-540P-3GWA-OEM2 would send the data to M2M RTU Center periodically depending on this update time. The based unit is second. (Range: 0 ~ 999999 sec) Heartbeat Period(sec) Set the heartbeat time interval.
- Page 35 E-mail mode (Range : 1 ~ 51 characters) Max. size of one E-mail file The maximum size of the e-mail. (KB) The suggestion size is 1300 KBytes GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 33/53...
- Page 36 (6) Receiver Address Item Description E-mail Addr. 1~ In E-Mal mode, users can set the e-mail addresses of E-mail Addr. 10 receivers in these fields. (Range : 0 ~ 51 Characters) (7) RS-485 Info GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 34/53...
- Page 37 DI signal for triggering the event. The unit is second. (Range : 0 ~ 65535 sec) Return Hold Time(sec) When the trigger condition is activated, it needs to keep the non-trigger status to be GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 35/53...
- Page 38 If the GT-540P-3GWA-OEM2 disconnect to RTU Center over this time, the operation of duty cycle would be stopped automatically. If it is 0, the GT-540P-3GWA-OEM2 does not stop the operation of duty cycle automatically. (Range : 0 ~ 65535 , Unit : Second) GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10...
- Page 39 The DO channel would keep outputting by this time, when AI alarm is triggered and “DO Off Condition＂ is “time＂. The unit is second. (Range : 0 ~ 65535 sec) DO Off Condition These conditions of the DO terminating GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 37/53...
- Page 40 1. Disable: Disable the DO linkage with AI channel. 2. Time: The DO output would keeping outputting according to the “DO on Time” when AI alarm is triggered. 3. Input Status: The DO channel output would GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 38/53...
- Page 41 GT-540P-3GWA-OEM2 user’s manual v1.0 be kept according to the time of the “Return Hold Time” when the AI returns to the non-trigger status The Conditions of AI Trigger GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 39/53...
- Page 42 The GT-540P-3GWA-OEM2 is allowed to connect to three Modbus RTU devices. Therefore, users can get these data of Modbus devices form the remote site by applying the GT-540P-3GWA-OEM2. The section is shown how to set the settings to connect to the Modbus devices.
- Page 43 The number of AO channels AO Address The start address of reading the AO value AO Format The format of AO value. Custom modbus device only support 16 bits value. AO Type AO type GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 41/53...
- Page 44 2. Export Parameters: This function would export these parameters to the *.par file. When pressing ”Export Parameters” button, the following window would pop-up. After selecting the path and set the file name, press “SAVE” button to finish the process. GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 42/53...
-
Page 45: Device Status
The window would show the status of micro SD card, WCDMA/GPRS connection, GPS and the Modbus devices connected to the GT-540P-3GWA-OEM2. Operation description: Read: Pressing this button would update the status of the GT-540P-3GWA-OEM2. Field instruction: (1) SD Card 1. Status: Shows the status of micro SD card. (OK- normal Error- abnormal) 2. -
Page 46: Device Time
(3) Last E-Mail Report Time: This field show the last time to send the mail when the mail mode is enabled. Operation description: (1) Set as Now: Set the time of the GT-540P-3GWA-OEM2 according to the time of PC. (2) Set: Set the time of the GT-540P-3GWA-OEM2 according to the time of the field. -
Page 47: Counter Value
GT-540P-3GWA-OEM2. If the DI channel is not set as counter, the counter value is 0. (2) Set Value : Change the counter value into GT-540P-3GWA-OEM2 according to the "Set Value" field When the DI channels are set as counter and data logger is enabled, the CIx field would be added in csv files as the figure below. -
Page 48: Do Control/Di Status/Ai Value
(2) DO0 ~ DO2 ON：Set the DO output on (3) DO0 ~ DO2 OFF：Set the DO output off (4) Duty Cycle “START” ： Start the operation of Duty cycle (5) Duty Cycle “STOP” ： Stop the operation of Duty cycle GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 46/53... -
Page 49: Gprs/Gsm Signal Quality
This window can show GSM signal strength. Text field： The strength is divided into 5 sections shown in percentage. And the top-left corner of the window can show the signal type. Operation： (1) Read：Read the WCDMA/GPRS signal strength. GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 47/53... -
Page 50: Version
Press "Version" in tool menu, and the window would show the version of Utility and firmware. Text field: (1) Firmware version: show the version information of GT-540P-3GWA-OEM2’s firmware (2) Utility version: show the version information of GT-540P-3GWA-OEM2’s utility Operation: Read: Read these information from GT-540P-3GWA-OEM2. GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10... -
Page 51: System
“System” menu item has 3 functions. They are recovering factory setting, resetting and debug mode GT-540P-3GWA-OEM2 as the figure below. 4.11.1 Recover to Factory Settings The function is used to recover GT-540P-3GWA-OEM2 as factory settings including password. (1) Make sure the STA led is blanking per 1 sec. - Page 52 (1) Mail Test: In the E-mail mode, click the button to send the E-mail to the defined e-mail address. (2) Monitor: This function can transfer the debug messages from GT-540P-3GWA-OEM2 and show in the Window. (3) Save message: Save the debug messages as files. (4) Clear: Clear the information in the debug filed.
-
Page 53: Data Logger
LOGFILE. In this mode, the timing of changing file name is as follows: 1. At 24 o＇clock every day 2. Change Modbus RTU device connected to GT-540P-3GWA-OEM2. 3. Change the interval time of record. 4. Change DI type as counter 5. -
Page 54: The Data Format Of The Data Logger File
5961 Delete Data Logger File Automatically At 24 o’clock every day , the GT-540P-3GWA-OEM2 would check the free space of micro SD card, if the free space of the micro SD card has less than 50MB, it would delete the oldest data logger files in the path of LOGFILE automatically until the free space has larger than 50MB. -
Page 55: Trouble Shooting
Check the DI setting in Utility is set as counter. This condition shows the SIM card needs STA LED director is flashing PIN/PUK code or PIN/PUK code is wrong. per 50 ms. You can apply Utility to input the correct PIN/PUK code. GT-540P-3GWA-OEM2 user’s manual, Version 1.0, 2013/10 53/53...
