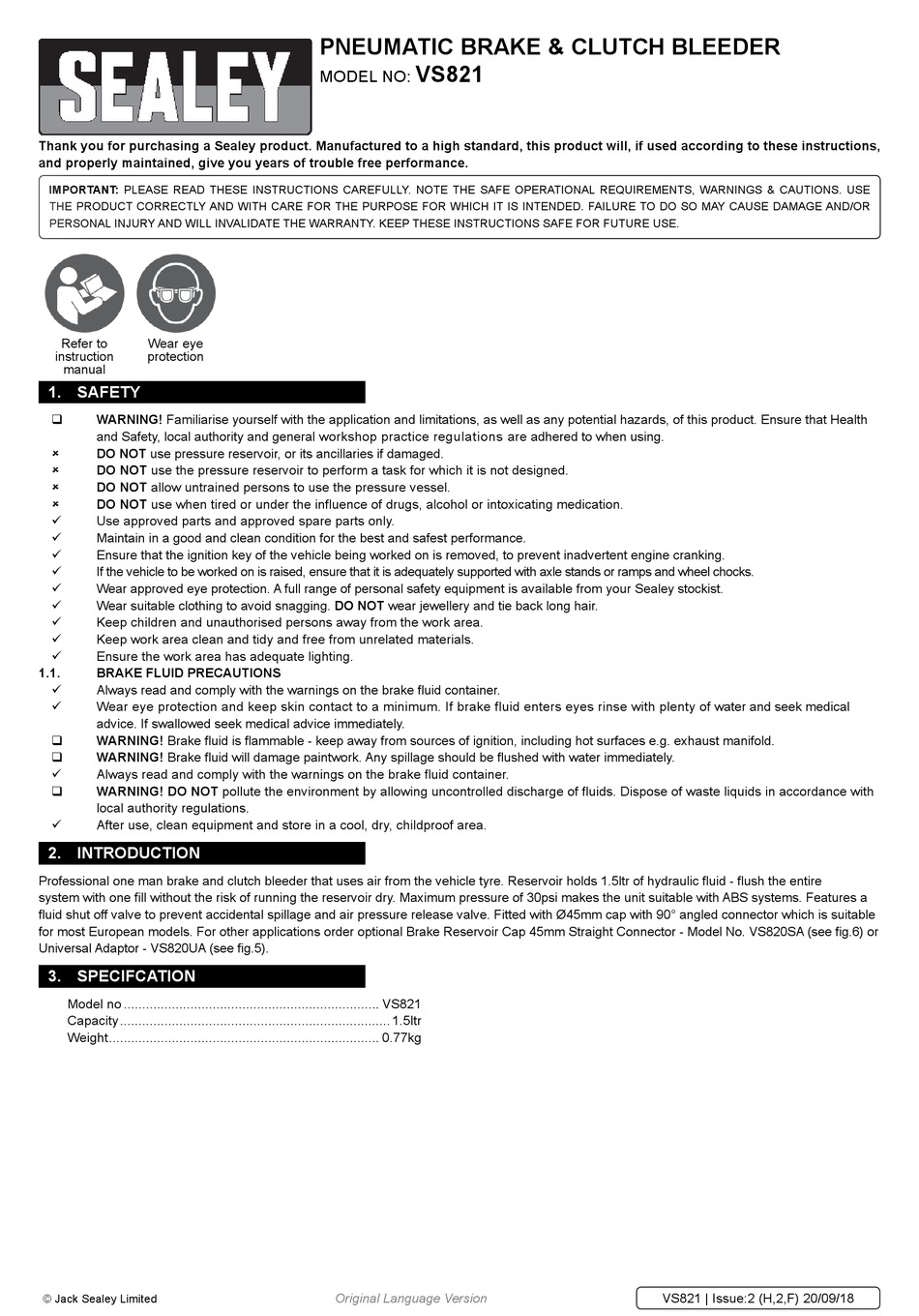

Sealey VS821 Instructions

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Wear eye
instruction protection
manual
1. SAFETY
‰ ‰ WARNING! Familiarise yourself with the application and limitations, as well as any potential hazards, of this product. Ensure that Health
‰
‰
and Safety, local authority and general workshop practice regulations are adhered to when using.
‰ ‰ DO NOT use pressure reservoir, or its ancillaries if damaged.
‰ 8
‰ ‰ DO NOT use the pressure reservoir to perform a task for which it is not designed.
‰ 8
‰ ‰ DO NOT allow untrained persons to use the pressure vessel.
‰ 8
‰ ‰ DO NOT use when tired or under the influence of drugs, alcohol or intoxicating medication.
‰ 8
‰ ‰ Use approved parts and approved spare parts only.
9
‰
‰ ‰ Maintain in a good and clean condition for the best and safest performance.
9
‰
‰ ‰ Ensure that the ignition key of the vehicle being worked on is removed, to prevent inadvertent engine cranking.
9
‰
‰ ‰ If the vehicle to be worked on is raised, ensure that it is adequately supported with axle stands or ramps and wheel chocks.
9
‰
‰ ‰ Wear approved eye protection. A full range of personal safety equipment is available from your Sealey stockist.
9
‰
‰ ‰ Wear suitable clothing to avoid snagging. DO NOT wear jewellery and tie back long hair.
9
‰
‰ ‰ Keep children and unauthorised persons away from the work area.
9
‰
‰ ‰ Keep work area clean and tidy and free from unrelated materials.
9
‰
‰ ‰ Ensure the work area has adequate lighting.
9
‰
1.1. BRAKE FLUID PRECAUTIONS
‰ ‰ Always read and comply with the warnings on the brake fluid container.
9
‰
‰ ‰ Wear eye protection and keep skin contact to a minimum. If brake fluid enters eyes rinse with plenty of water and seek medical
9
‰
advice. If swallowed seek medical advice immediately.
‰ ‰ WARNING! Brake fluid is flammable - keep away from sources of ignition, including hot surfaces e.g. exhaust manifold.
‰
‰
WARNING! Brake fluid will damage paintwork. Any spillage should be flushed with water immediately.
‰
Always read and comply with the warnings on the brake fluid container.
9
WARNING! DO NOT pollute the environment by allowing uncontrolled discharge of fluids. Dispose of waste liquids in accordance with
‰
local authority regulations.
‰ ‰ After use, clean equipment and store in a cool, dry, childproof area.
9
‰
2. INTRODUCTION
Professional one man brake and clutch bleeder that uses air from the vehicle tyre. Reservoir holds 1.5ltr of hydraulic fluid - flush the entire
system with one fill without the risk of running the reservoir dry. Maximum pressure of 30psi makes the unit suitable with ABS systems. Features a
fluid shut off valve to prevent accidental spillage and air pressure release valve. Fitted with Ø45mm cap with 90° angled connector which is suitable
for most European models. For other applications order optional Brake Reservoir Cap 45mm Straight Connector - Model No. VS820SA (see fig.6) or
Universal Adaptor - VS820UA (see fig.5).
3. SPECIFCATION
Model no ..................................................................... VS821
Capacity ......................................................................... 1.5ltr
Weight ......................................................................... 0.77kg
© Jack Sealey Limited
PNEUMATIC BRAKE & CLUTCH BLEEDER
VS821
MODEL NO:
Original Language Version VS821 | Issue:2 (H,2,F) 20/09/18
