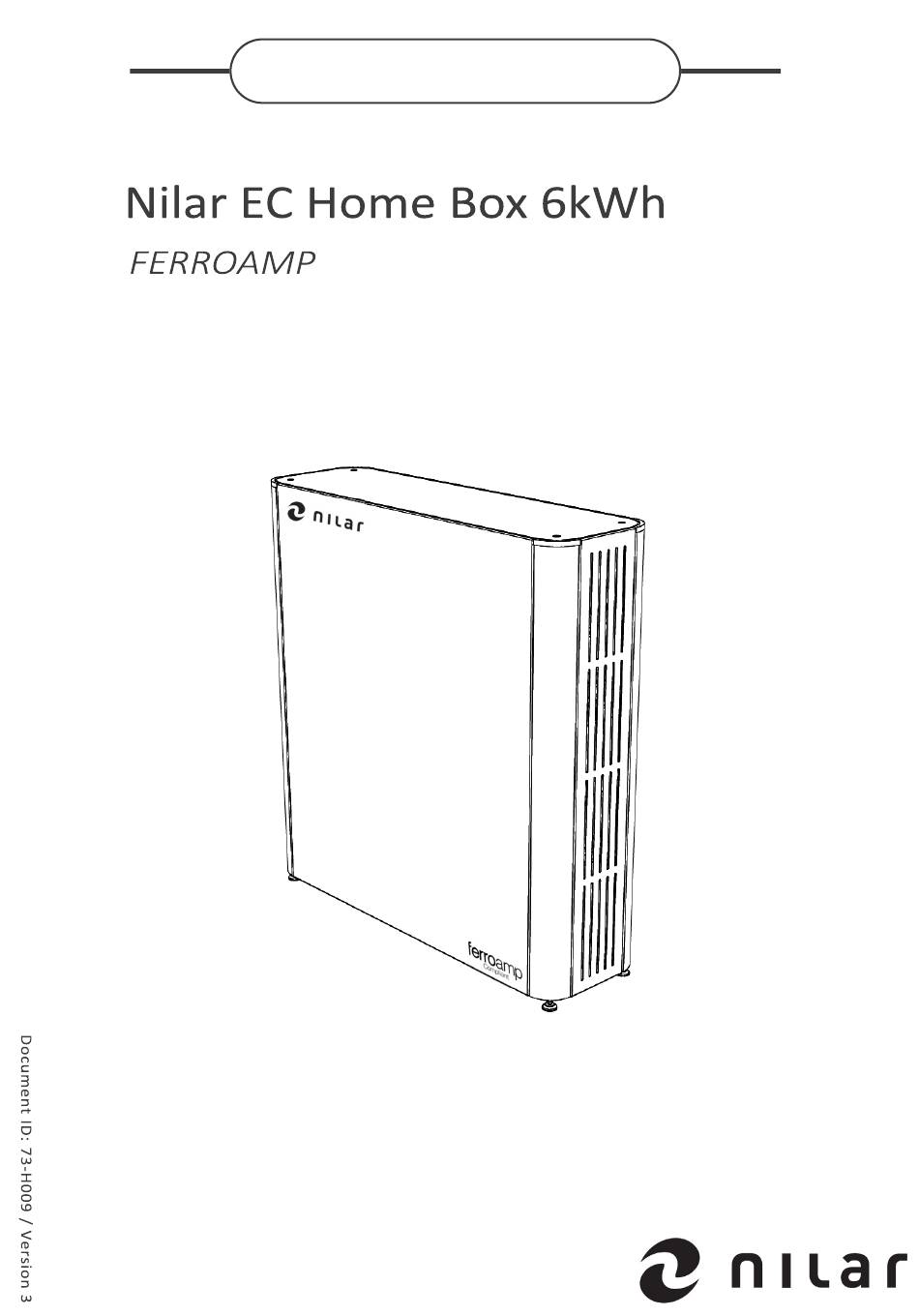

- Page 1 QUICK INSTALLATION GUIDE 21‐0001 & 21‐0002 ...
- Page 2 Important informa on Read carefully Keep this informa on for further reference THIS QUICK GUIDE IS ONLY INTENDED TO BE USED BY INSTALLATION PERSONNEL WITH PREVIOUS INSTALLATION EXPERIENCE AND FULL UNDERSTANDING OF THE PROCEDURE AND SAFETY WARNINGS EXPLAINED AND DESCRIBED IN THE MORE EXTENSIVE INSTRUCTION MANUAL HOME BOX (73‐H006)! IF UNCERTAINTY ARISES, ALWAYS REFER TO INSTRUCTION MANUAL HOME BOX (73‐H006)! THE INSTRUCTION MANUAL CAN BE DOWNLOADED AT : h ps://www.nilar.com/partner‐login/ CAUTION WARNING If a ba ery pack is damaged mechanically, the following may This product contains powerful ba ery packs (NiMH) and is occur: supplied by mul ple hazardous electrical sources. Beware of stored and residual energies. High heat genera on on the surface of the ba ery cells. Electrolyte may escape. ...
-
Page 3: Crush Hazard
TOOLS & PERSONAL PROTECTIVE ACCESSORIES EQUIPMENT (PPE) TXD 2 Torx screwdriver, size 20 Always use PPE during handling and installa on of product. At minimum this includes safety shoes with steel toe, safety glasses, and electrically insulated gloves: HXD 2 Hex screwdriver, size 4 WARNING & CAUTION SYMBOLS The following warning and cau on symbols are used throughout ... - Page 4 1 DO NOT ATTACH THE HOME BOX TO THE WALL UNTIL INSTALLATION HAS REACHED STEP 14 IN THIS INSTALLATION GUIDE Ensure appropriate space for the Home Box. If required, adjust the support legs of the Home Box to level. Unscrew and remove the cover 2 lid. HXD 2 PLEASE READ THE WARNING STICKERS ON THE TOP PLATE 3 BEFORE PROCEEDING Unscrew and remove the corner ...
- Page 5 Slide the side plates upwards to 4 unhook them and li them therea er outwards. Slide the front plate upwards to 5 unhook it and li it therea er outwards. Tilt the top plate upwards a few 6 degrees and therea er li it off. ...
- Page 6 ____________________________ Always install a type B or B+ Re- Type AC sidual Current Device (RCD). If an RCD of another classifica on Type A (type AC, A or F) is already Type F installed, it needs to be repla- ced with a type B or B+ RCD. THE FERROAMP ENERGYHUB SYSTEM MAY STILL PROVIDE 9 HAZARDOUS VOLTAGE AND RESIDUAL ENERGY. ALT‐ HOUGH IT IS SWITCHED OFF OR MAY APPEAR SWITCHED OFF. Route the Ferroamp EnergyHub power cable through the cable entry of Nilar Home Box. ...
- Page 7 CABLES MUST ALWAYS BE EXTERNALLY PROTECTED BY A 10A DC‐FUSE (1000VDC) CONDUCTUR CROSS‐SECTION MAX 6 mm Posi ve (+) wire of power cable connects to the posi ve terminal (+) of the Nilar BMS. THE NEGATIVE (‐) WIRE OF THE INCOMING 11 POWER CABLES MUST ALWAYS BE EXTERNALLY PROTECTED BY A 10A DC‐ FUSE (1000VDC) CONDUCTUR CROSS‐SECTION...
- Page 8 THE HOME BOX MUST ALWAYS BE ATTACHED TO A 14 STABLE WALL. TYPE AND LENGTH OF SCREWS DEPEND ON MATERIAL IN WALL AND THE SCREWS ARE NOT SUPPLIED WITH NILAR HOME BOX. Fixate the Home Box by a aching the moun ng brackets with (2) screws each onto a stab- le wall. NEVER INSTALL BATTERY 15 ...
- Page 9 REMOVE BOTH LIFTING 16 STRAPS FROM THE BATTERY PACKS. ID‐MARKING IN SHELF SLOT OF CABINET MUST MATCH ID ‐MARKING ON BATTERY PACK IT IS RECOMMENDED TO USE LIFTING AIDS Carefully li /slide the ba ery packs into their dedicated shelf slots. Fixate the ba ery packs to the 17 insula on tray with the screws. Repeat for all ba ery packs. TXD 2 TXD 2 18 ...
- Page 10 BE CAREFUL TO CONNECT 19 THE IMU CONNECTORS WITH THE CORRECT ORIENTATION Make sure that the clamping screws/springs for the 24VDC power supply ① and the Current sensor ② are visible on the front side of the connectors and that the cables are poin ng towards the cable entry ③. 20 INSTALL AS DESCRIBED IN INSTALLATION STEP #19 Connect the current sensor cable to ba ery pack ’D’. Connect the pre-routed 21 communica on cable from BMS to ba ery pack ’A’ (RJ45). Connect the interpack communica on cables between ba ery pack ’A’ and ’B’, ...
- Page 11 Connect all the fan cables to all 22 ba ery packs. 23 INSTALL AS DESCRIBED IN INSTALLATION STEP #19 Connect the pre-routed 24VDC power supply cable to each ba ery pack. Connect the ambient 24 temperature sensor cable to ba ery pack ’A’. Install the cover lids back on all the ba ery packs and check that all cables are routed through the cable entry. ...
- Page 12 CHECK THAT THE FUSES ARE NOT ACTIVATED , SE 25 INSTALLATION STEP #31 Connect the pre-routed nega ve (-) power cable (1 : A) into the nega ve (-) chassis connector of ba ery pack ‘A’. DO NOT CONNECT THE 26 POSITIVE (+) AND THE NEGATIVE (‐) TERMINAL ON THE SAME BATTERY PACK (= SHORT‐CIRCUIT!) Connect the posi ve (+) chassis connector of ba ery pack ‘A’ to ...
- Page 13 28 Plug the other end of the pre-routed interpack cable into the nega ve (-) chassis connector of ba ery pack ‘C’. DO NOT CONNECT THE 29 POSITIVE (+) AND THE NEGATIVE (‐) TERMINAL ON THE SAME BATTERY PACK (= SHORT‐CIRCUIT!) Connect the posi ve (+) chassis connector of ba ery pack ‘C’ to the nega ve (-) chassis connector of ba ery pack ‘D’ by using the remaining external interpack power cable. 30 THE TEXT MARKING “LEM” OF THE CURRENT SENSOR MUST POINT TOWARDS THE POSITIVE (+) CHASSIS...
- Page 14 31 Remove the adhesive tape over the fuse box, ac vate the fuses by closing the hatches. 32 ASSEMBLE THE NILAR HOME BOX CABINET IN THE REVERSE ORDER OF HOW IT IS DESCRIBED IN STEP 2 – 7 AND CONTACT FERROAMP FOR FURTHER INSTRUCTIONS BEFORE TAKEN INTO OPERATION ...
- Page 16 Nilar AB Stockholmsvägen 116 B, 6tr SE‐187 30 Täby, Sweden ...
