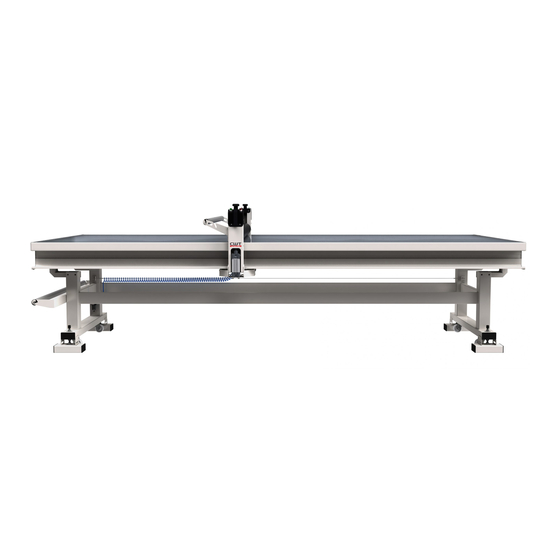

CWT Advantage 1428 Assembly Manual

Lamination table
Hide thumbs Also See for Advantage 1428:

Advertisement

Quick Links

Download this manual
Assembly Guide
Revision
CWT Lamination Table
CWT 1428 Advantage

Advertisement

loading
Need help?

Need help?

Do you have a question about the Advantage 1428 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CWT Advantage 1428

Summary of Contents for CWT Advantage 1428

  • Page 1 Assembly Guide Revision CWT Lamination Table CWT 1428 Advantage...

  • Page 3: Included Parts

    Included parts Table top Package of girders Package of L-plates Package of legs Glide beam Roll and holder for Glide beam Package of end plates Glass White PVC Cutting mat Installation kit (two boxes) Support stand...

  • Page 6: Tools Needed For Assembly

    Tools needed for assembly Metric allen keys: Metric wrenches: M5 -3 M8 -13 M8 - 6 M12 - 19 M12 - 10...
  • Page 7 4 x M8x90 4 x 8,4 washer Lift the girder and tighten the screws...
  • Page 8 8 x M8x90 8 x 8,4 washer Lift the girder and tighten the screws...
  • Page 9 Cross measure the frame. Adjust the frame if the dimension differs more than 1mm. 4 x M8x20 4 x 8,4 washer...
  • Page 10 6 x M12x90 6 x 13 washer 6 x M12 nut...
  • Page 11 6 x M12x30 6 x M12 nut 2 x M8x35 2 x M8 nut Remove: 2 x M12x90 2 x 13 washer 2 x m12 nut...
  • Page 14 Remove: 2 x M12x90 2 x 13 washer 2 x m12 nut...
  • Page 15 Connect the regulator to the hose Connect air to the regulator and rise the roller. Remove the regulator from the hose.
  • Page 16 Make sure that the Glide beam are correctly aligned with the linear guide.
  • Page 17 4 x M12x90 4 x 13 washer 4 x m12 nut...
  • Page 19 2 x M12x90 2 x 13 washer 2 x m12 nut 6 x M12x30 6 x m12 nut 2 x M8x35 2 x M8 nut...
  • Page 20 Dimension are from the wheels up to the table top. 795mm 845mm 895mm...
  • Page 21 To adjust the height of the table top, lower a hole at a time on each side.
  • Page 22 Cross measure the table top. Adjust the table top if the dimension differs more than 2mm.
  • Page 23 2 x M5x16...
  • Page 24 Glass White PVC...
  • Page 25 Mount rubber band all around the glass. A small amount of lubricant like kitchen dish soap Applied on the rubber makes the assembly easier.
  • Page 26 Cutting mat 4 x M5x16...
  • Page 28 Appendix 1 Adjustment order.

  • Page 29: Revision Table

    Revision table Rev Step Description Date...
