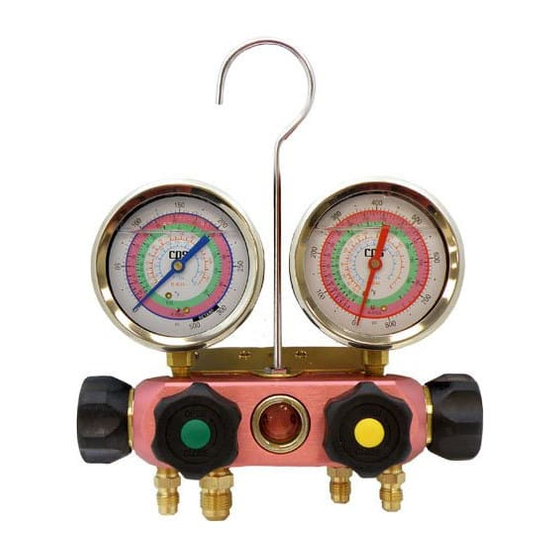

CPS VORTECH MV13H3P5A Manual

None-Flutter Gauge /
Rugged metal housing
Front Calibration
Access Port
Anodized
Aluminum
Block Body
ONLY QUALIFIED SERVICE PERSONNEL SHOULD OPERATE THIS UNIT. MOST STATES, COUNTRIES, ETC
MAY REQUIRE THE USER TO BE LICENSED. PLEASE CHECK WITH YOUR LOCAL GOVERNMENT AGENCY.
Danger-
Avoid breathing refrigerant vapors and lubricant vapor or mist. Breathing high concentration levels
may cause heart arrhythmia, loss of consciousness, or even cause suffocation. Exposure may irritate eyes,
nose, throat, and skin. Please read the manufacturers Material Safety Data Sheet for further safety informa-
tion on refrigerants and lubricants.
Danger- EXPLOSION RISK
this manifold with Oxygen.
Danger- EXPLOSION/RUPTURE RISK.
ide or other very high pressure gasses. Unregulated gasses can cause components in a refrigeration system
to rupture. Severe Injury or Death can occur.
Caution-
all hoses may contain liquid refrigerant under pressure. Contact with refrigerant may cause frost-
bite or other related injuries. Wear proper personal protective equipment such as safety goggles and gloves.
When disconnecting any hose, please use extreme caution.
1. The right end knob (red) will control the flow through the right end port.
2. The left end knob (blue) will control the flow through the left end port.
3. The front right hand knob (yellow) will control the flow through the right middle port port.
4. The front left side hand knob (green) will control the flow through the left middle port.
5. Low Pressure gauge measures pressure on the left end port with the left side valve closed.
6. High Pressure gauge measures pressure on the right end port with the right side valve closed.
VORTECH
OPEN
CLOSE
GENERAL SAFETY INSTRUCTIONS
. Use extreme caution when working with flammable refrigerants. Never use
DO NOT use this manifold with unregulated nitrogen, carbon diox-
4 WAY MANIFOLD FUNCTION
4 VALVE
™
MANIFOLD
OPEN
CLOSE
Protective Rubber
Gauge Boot
Large
Easy-to-Grab
Knobs
Sightglass
