CPS BlackMax Operating Instructions

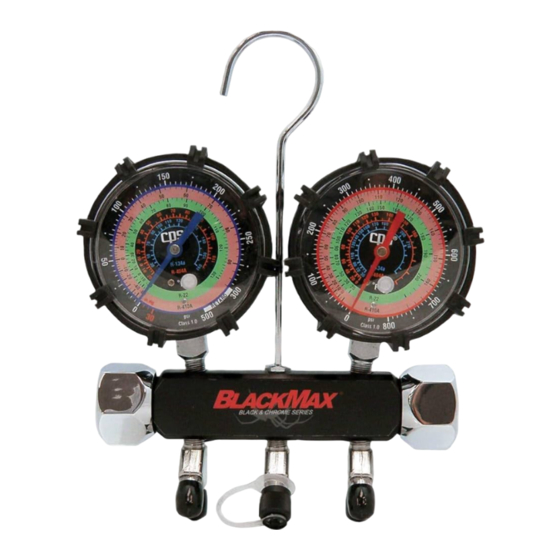

BlackMax™ 2-Valve Piston Manifold
<<<WARNING>>>
Follow good safety practices when working with
refrigerants and refrigerant equipment. Safety goggles
should be worn at all times. Refrigerant and lubricant
vapor or mist may cause injury, frostbite, irritate eyes,
nose and throat. Avoid breathing or contact with skin.
Always point hose away from you and anybody near or
around you. Remove hoses with care as they may be
under high pressure with refrigerants. Improper proce-
dures can cause refrigerant gas under pressure to
explode violently. This equipment is intended for use by
experienced professional service technicians in the
refrigeration and or air-conditioning who are familiar
with the equipment they are servicing. Review the
material safety data sheet (MSDS) provided by the
refrigerant manufacturer for safe and proper handling
information as well as instructions as to what to do if
an emergency should arise.
2-WAY MANIFOLD FUNCTION
1. The right side hand knob (red high side) will control
the flow of ports on that side to the center port and
the port on the left side (blue low side) providing the
low side hand knob is in the open position.
2. Should the flow be needed only through the center
port (yellow line) close the low side blue label hand
knob.
3. The low (blue) side operates in the same manner as
on the high (red) side.
4. Pressure gauges and compound gauges are color
coded accordingly.
5. The gauges will indicate either vacuum or pressure
whether the hand knobs are in the open or closed
positions, (if the hoses are connected to either a
refrigerant supply tank, recovery unit, A/C system or
vacuum pump etc).
EVACUATING PROCEDURE
1. Remove all refrigerant from the system. NOTE: It is
unlawful to discharge or exhaust refrigerants into
the atmosphere. CPS strongly recommends the
practice of recovery or recycling.
2. Connect a vacuum pump to the center yellow
charging hose.
3. Connect the high side service valve of the system to
the right side red charging hose.
4. Connect the low side service valve of the system to
the left side blue hose.
5. Fully open the high and low side hand knobs.
6. Start the vacuum pump.
7. Evacuate the system according to the manufactuer's
specifications; close the high and low side hand
knobs.
8. Turn off the vacuum pump.
9. Disconnect the yellow charging hose at the vacuum
pump end and connect it to the refrigerant supply
tank. (Make sure to turn shut off valve, off before
disconnecting).
Manifold Operating Instructions
10. Slightly open the valve on the refrigerant supply
1. Follow the manufacturer's recommended specifica
2. When the proper charge has been achieved, open
3. Run the compressor as per the manufacturer's
4. Close the high and low side service valve of the
WARNING: Remove all hoses with care as they may
contain refrigerant.
Anodized aluminum
tank and purge the air from the yellow hose at the
manifold by loosening the yellow hose fitting, the
close fitting and container valve.
CHARGING PROCEDURE
tion for the amount of refrigerant to charge in that
system. Should it specify to charge the system on
that high side, close the low side service valve.
Open the refrigerant supply container valve, then
open the high side (red label) hand knob of the
manifold. After the proper amount of refrigerant has
been transferred, close the high red label hand knob
of the manifold; also close the refrigerant supply
container valve.
the low side service valve on the system.
specifications and observe the pressure gauge
reading and compare to the manufacturer's
specifications to determine that the system is
operating correctly. If no adjustments need to be
made, then read step 4. If not, follow proper
procedures to repair or adjust the system.
system before removing the charging hoses from
the system. Follow all safety practice procedures.

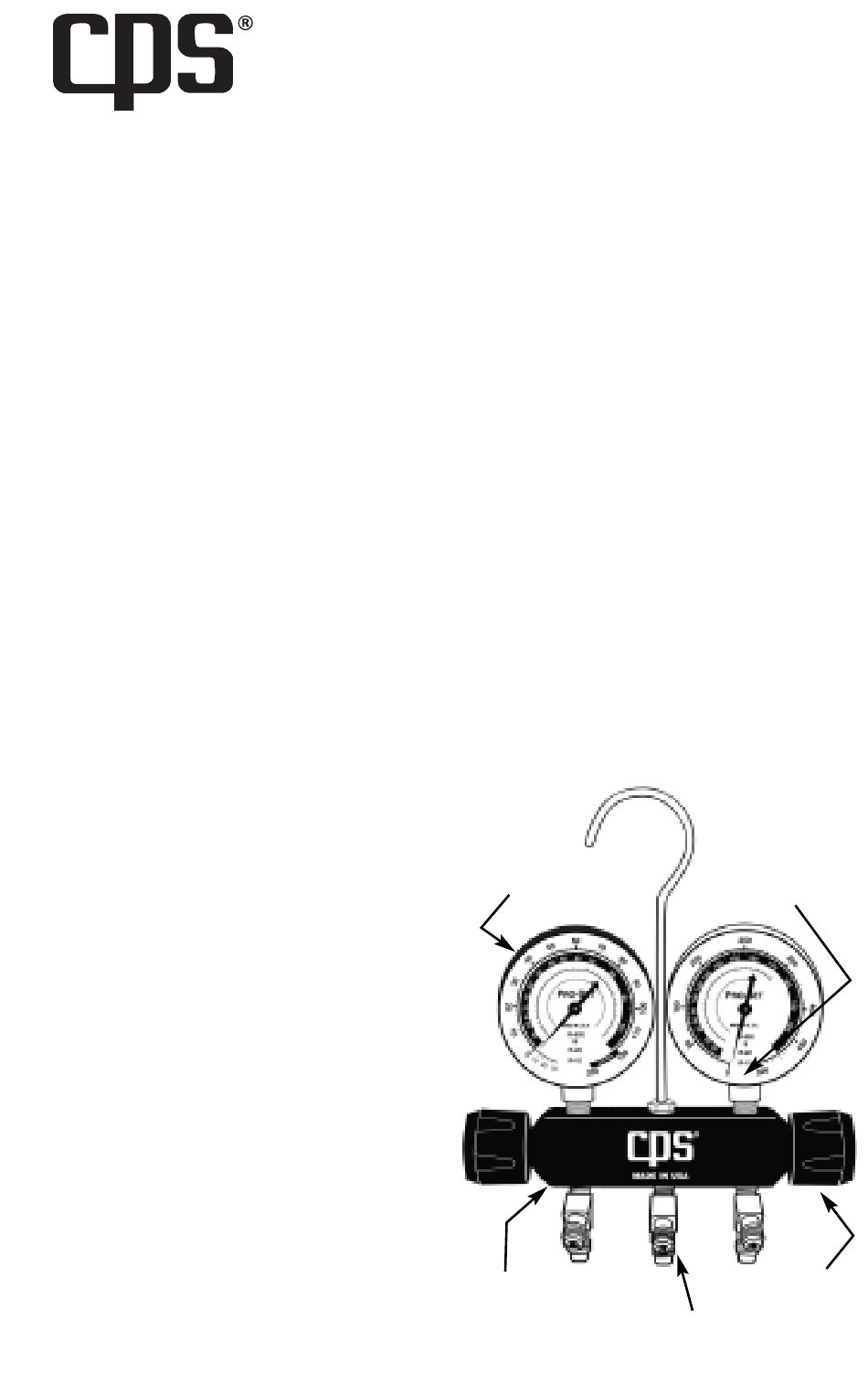

None-Flutter Gauge
/rugged metal housing
block body
45° Fittings used for
proper storage of hoses
when not in use and
for vacuum gauge
Front calibration
access port
Large
Easy-To-Grab
knobs
