Summary of Contents for Topdon ArtiLink300

  • Page 1 If you have any questions or doubts, please contact us via Hotline (+86)0755-23576169 Email support@topdondiagnostics.com Website www.topdondiagnostics.com Facebook @TopdonOfficial Twitter @TopdonOfficial...

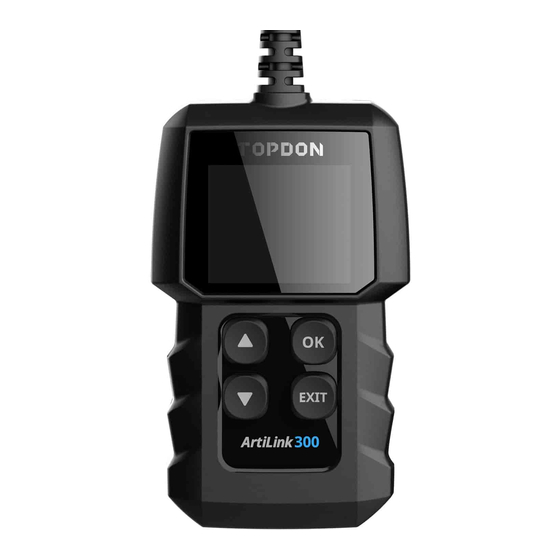

  • Page 2 ArtiLink300 Code Reader USER MANUAL...
  • Page 3: Table Of Contents

    Content Welcome ..................1 About .................... 1 Package List ................1 Compatibility ................1 Notice ................... 1 General Information of OBDII (On-Board Diagnostics II) ..2 Diagnostic Trouble Codes (DTCs) ..........2 Features ..................3 Operation Introduction ..............4 Technical Specification .............17 Warranty ...................17 Warnings ..................18 Cautions ..................18...
  • Page 4: Welcome

    ArtiLink300 Code Reader User Manual Welcome Thank you for purchasing TOPDON OBD2 scan tool ArtiLink 300. Please patiently read and understand this User Manual before operating this product. About As designed to work with all OBDII compliant vehicles, including Controller Area Network (CAN), TOPDON ArtiLink 300 supports all 10 modes of OBDII test for a complete diagnosis.
  • Page 5: General Information Of Obdii (On-Board Diagnostics Ii)

    ArtiLink300 Code Reader User Manual General Information of OBDII (On-Board Diagnostics II) The OBDII system is designed to monitor emission control systems and key engine components by performing either continuous or periodic tests of specific components and vehicle conditions, which will offer three pieces of such valuable information: 1.
  • Page 6: Features

    ArtiLink300 Code Reader User Manual Features 1. LCD - Show test results. 2. OK - To confirm the current operation. 3. EXIT - Back to the previous page. ▼ - Move down for selection. Or skip to the next page when more than one page is displayed.
  • Page 7: Operation Introduction

    ArtiLink300 Code Reader User Manual Operation Introduction 1. Preparation & Connection 1. Turn the ignition off. 2. Locate the vehicle’s DLC socket. 3. Plug the diagnostic cable into the vehicle’s DLC socket.
  • Page 8 ArtiLink300 Code Reader User Manual 4. Turn the ignition on. The engine can be off or running. 5. ArtiLink 300 will start initializing and enter the main menu. *Note: Don’t connect or disconnect any test equipment with ignition on or engine running.
  • Page 9 ArtiLink300 Code Reader User Manual *Note: Never replace a part based only on the DTC definition. Always refer to the vehicle’s service manual for detailed testing instructions. 2.2. Erase Codes This option erases the codes from the vehicle after retrieving codes from the vehicle, and certain repairs have been carried out.
  • Page 10 ArtiLink300 Code Reader User Manual The result will be displayed on screen. *Note: Be sure the vehicle’s ignition key is in the ON position with the engine off. 2.3 I/M Readiness This option checks whether or not the various emissions- related systems on the vehicle are operating properly, and are ready for Inspection and Maintenance testing.
  • Page 11 ArtiLink300 Code Reader User Manual The result will be displayed on screen. *Explanation of terms: • CAT_RDY - Catalyst Monitor Ready? • HCAT_RDY - Heated Catalyst Monitor Ready? • EGR_RDY - EGR System Monitor Ready? 2.4 Data Stream This option retrieves and displays live data and parameters from the vehicle’s ECU.
  • Page 12 ArtiLink300 Code Reader User Manual The result will be displayed on screen. 2.5 View Freeze Frame This option takes the snapshot of the operating conditions when an emission-related fault occurs. Select [Freeze Frame] and press [OK]. The result will be displayed on screen.
  • Page 13 ArtiLink300 Code Reader User Manual 2.6 O2 Sensor Test This option retrieves O2 sensor monitor test results of the most recently completed tests from your vehicle’s on-board computer. Select [O2 Sensor Test] and press [OK]. Select an option, and press [OK].
  • Page 14 ArtiLink300 Code Reader User Manual 2.7 On-Board Monitor Test This option retrieves test results for emission-related powertrain components and systems that are not continuously monitored. The tests available are determined by the vehicle manufacturer. Select [On-Board Monitoring] and press [OK].
  • Page 15 ArtiLink300 Code Reader User Manual 2.8 EVAP System Test This option initiates a leak test for the vehicle’s EVAP system. Select [EVAP System (mode$8)] and press [OK]. If the vehicle doesn’t support mode$8, the following result will be displayed on screen.
  • Page 16 ArtiLink300 Code Reader User Manual 2.9 Vehicle Info This option retrieves a list of information (provided by the vehicle manufacturer) from the vehicle’s on-board computer. This information may include: • VIN (Vehicle identification Number). • CID (Calibration ID). • CVN (Calibration Verification Number).
  • Page 17 ArtiLink300 Code Reader User Manual 3. DTC Lookup This function enables you to view the detailed definition of the retrieved DTC. Select [DTC Lookup] in the Main Menu and press [OK], the following screen will appear: After you input the DTC, press [OK] to view its detailed definition.
  • Page 18 ArtiLink300 Code Reader User Manual 4. Settings Select [Tool Setup] in the Main menu and press [OK], the system will enter the tool setup screen. • Language This option enables you to set the user interface language. • Unit of Measure This option allows you to set measurement unit.
  • Page 19 ArtiLink300 Code Reader User Manual 5. Help This function enables you to view the tool information and the OBD introduction. Select [Help] in the Main menu and then press [OK]. The following options will be displayed on screen. • About OBD - Relevant introduction information about OBD.
  • Page 20: Technical Specification

    TOPDONOne Year Limited Warranty The TOPDON Company warrants to its original purchaser that TOPDON products will be free from defects in material and workmanship for 12 months from the date of purchase (Warranty Period). For the defects reported during the...
  • Page 21: Warnings

    ArtiLink300 Code Reader User Manual Warnings Always perform automotive testing in a safe environment. DO NOT smoke near the vehicle during testing. DO NOT place the code reader near the engine or exhaust pipe to avoid damage from high temperatures.
  • Page 22: Faq

    ArtiLink300 Code Reader User Manual Q: System halts when reading data stream. What is the reason? A: It may be caused by a slackened connector. Please turn off the tool, firmly connect the connector, and switch it on again. Q: Screen of main unit flashes at engine ignition start.
