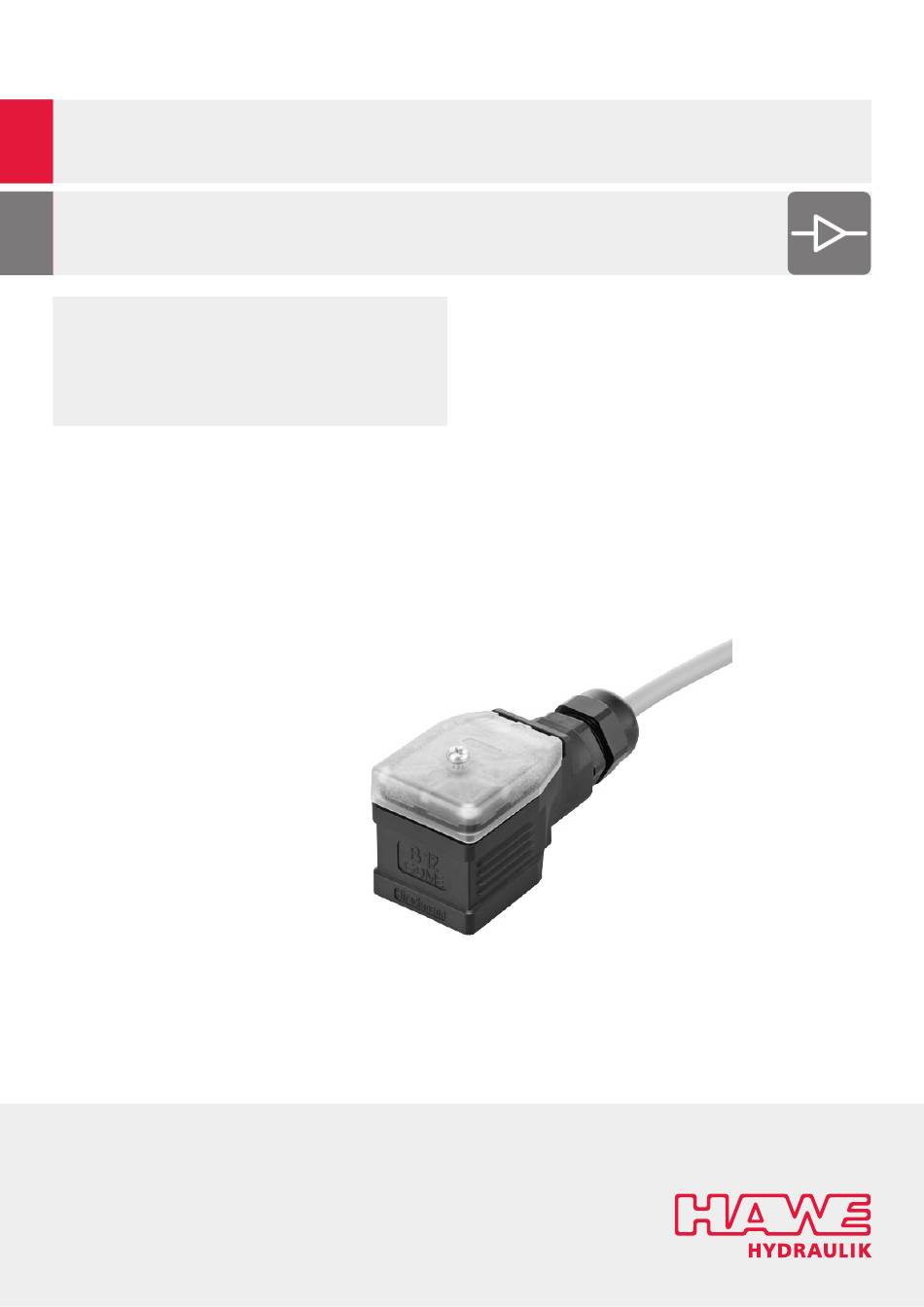

Electronic amplifier type EV2S-CAN
Product documentation
Line connector
Supply voltage U
:
8...32 V DC
B
Output current I
:
max. 2 A
A
D 7818/1
09-2015-1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EV2S-CAN Series and is the answer not in the manual?

Questions and answers

Related Manuals for HAWE Hydraulik EV2S-CAN Series

Summary of Contents for HAWE Hydraulik EV2S-CAN Series

  • Page 1 Electronic amplifier type EV2S-CAN Product documentation Line connector Supply voltage U 8...32 V DC Output current I max. 2 A D 7818/1 09-2015-1.0...
  • Page 2 © by HAWE Hydraulik SE. The forwarding and reproduction of this document, as well as the use and communication of its contents, are forbidden unless expresse- ly permitted. Any breach or infringement will result in liability for damages. All rights reserved concerning patent or utility model registrations.

  • Page 3: Table Of Contents

    Contents Overview of type EV2S-CAN electronic amplifier....................4 Available versions, main data..........................5 Parameters............................... 6 General data..............................6 Electrical parameters............................7 Communication..............................8 Electromagnetic compatibility..........................8 Dimensions..............................9 ..................................9 Installation, operation and maintenance information..................11 Electrical connection............................11 Operating instructions............................12 Instructions for adjustment with buttons......................15 Initial operation (quick start)..........................

  • Page 4: Overview Of Type Ev2S-Can Electronic Amplifier

    Overview of type EV2S-CAN electronic amplifier Proportional amplifiers actuate proportional solenoid valves by converting an input signal into a corresponding control current. The EV2S-CAN proportional amplifier is available for direct mounting onto a solenoid valve as a plug amplifier. It is suitable for controlling proportional single-action and twin solenoids. The influences of temperature and power supply are compensated for by the feedback measurement at the valve outputs, enabling the valve to behave consistently accurately.

  • Page 5: Available Versions, Main Data

    Available versions, main data - CAN - L3K Interface option Table 2: Interface option Plug type Table 1: Plug type Target value input Model Number of solenoid outputs Basic type Table 1: Plug type Marking Description Connector for single-action and twin solenoids with socket according to DIN EN 175 301-803 A 2 x connectors for 2 single-action solenoids with socket according to DIN EN 175 301-803 A Table 2: Interface option Marking...

  • Page 6: Parameters

    Parameters 3.1 General data Nomenclature Electronic amplifier Design line connector Connection leads • 3m cable 5 x 0,5mm • M12, 5 pin Fastening On socket to DIN EN 175 301-803 A Installation position Weight Approx. 70 g Type of protect DIN VDE 0470, EN 60529 or IP65 (mounted) IEC 529 Ambient temperature...

  • Page 7: Electrical Parameters

    3.2 Electrical parameters Supply voltage 8 to 32 V DC, pole-protected Output voltage – 0.5 V, pulse-width modulated Unregulated output current max. 0 to 2 A, short-circuit proof, temperature-dependent Regulated output current max. 0 to 1.6 A, short-circuit proof, temperature-dependent (see diagram 1) Adjustment areas 0 to 1 A 0 to 2A...

  • Page 8: Communication

    Temperature-dependent power during continuous operation Figure 2: °C ambient temperature; I current (mA) 12 V systems 24V systems 3.3 Communication CAN bus CAN protocol CANopen, J1939 CAN baud rate 10, 20, 50, 100, 125, 250, 400, 500, 800, 1,000 (all units in kBaud) CAN ID 1 to 127 (Default D = 126) 3.4 Electromagnetic compatibility...

  • Page 9: Dimensions

    Dimensions All dimensions in mm, subject to change! 4.1 Board Connection Button - UP Button - DOWN Button - OK / Back Display LED - Power (green) LED - A-side (green) LED - B-side (orange) LED - Error (red) 4.2 Plug type EV 2 S - CAN - G - L3K 4.3 Plug type EV 2 S - CAN - G - M www.hawe.de | 2015 09-2015-1.0 - D 7818/1 - EV2S-CAN...
  • Page 10 4.4 Plug type EV 2 S - CAN - DG - L3K 09-2015-1.0 - D 7818/1 - EV2S-CAN www.hawe.de | 2015...

  • Page 11: Installation, Operation And Maintenance Information

    Installation, operation and maintenance information 5.1 Electrical connection Connection pattern (magnet-side) 3-pole IP 65 (IEC 60529) EV 2 S - CAN - G - ... Twin solenoid Single-action solenoid EV 2 S - CAN - DG - L3K 2 single-action solenoids Layout plan Signal ..

  • Page 12: Operating Instructions

    5.2 Operating instructions CAN communication In a CAN network with 11-bit identifier protocol, the type EV2S-CAN proportional amplifier can be connected according to CAN 2.0A; with 29-bit identifier protocol, it can be connected according to CAN 2.0B. Target values sent by a master can be converted into a valve current. An analogue sensor can also be read and the values sent to the master via CAN bus.
  • Page 13 Display The two-digit seven-character display shows the abbreviation for the selected menu item or the value of the selected user parameter within the menu structure. Values ranging from -9,999 to +99,999 may be shown. User parameters with values ranging from 0 to 99 are shown directly in the character display. In order to be able to display values greater than 99, the values are shown individually in thousands, hundreds, tens and unit blocks.
  • Page 14 LED displays Four LEDs are built into the board to enable simple status monitoring. All the LEDs light up once when the plug amplifier is started up. Position Colour Description Green Solenoid output A, active: Lights up when the output for the A side is active Error: Light for when an error is detected Orange...

  • Page 15: Instructions For Adjustment With Buttons

    5.3 Instructions for adjustment with buttons The plug can be parameterised using three buttons and a two-digit seven-segment display. All values can be selected, requested and modified via the menu items using the three buttons. The designation of the selected parameter and the current values are shown in the display.
  • Page 16 Menu Press any button to access data in the parameter menu. Press the OK button to navigate further into the menu structure (change from main menu to submenu 1). Table: Main menu and submenu 1: Main menu Display Submenu 1 Display Configuration Password...
  • Page 17 Table: User parameter data: Submenu 1 User parameters Display Minimum Maximum Description value value Temperature Actual value display Temperature in °C (tE) Supply voltage Actual value display Supply voltage in mV (Ub) Time (rt) Runtime Actual value display Runtime since last reset in h/min/sec (rr) Total runtime...
  • Page 18 Table: User parameter output 1: User parameters Display Minimum Maximum Description value value Actual current 1 Actual value display Actual current at the valve in mA (AC) Minimum current 1 1,000 Minimum current at actual value 0.1% (IL) Maximum current 1 2,000 Maximum current at actual value 100% (Ih)
  • Page 19 Table: User parameter input 1: User parameters Display Minimum Maximum Description value value Raw value 1 Actual value display (rA) Calculated value 1 Actual value display (CA) Ramp positive, up 1 30,000 In 1/100 sec (PU) Ramp positive, down 1 30,000 In 1/100 sec (Pd)
  • Page 20 Table: User parameter input 2: User parameters Display Minimum Maximum Description value value Raw value 2 Actual value display (rA) Calculated value 2 Actual value display (CA) Ramp positive, up 2 30,000 In 1/100 sec (PU) Ramp positive, down 2 30,000 In 1/100 sec (Pd)
  • Page 21 Table of configuration / configuration CAN: Submenu 1 User parameters Display Minimum Maximum Description value value Valve type Device type according to table (Cd) CAN (Cc) CAN baud rate 1,000 CAN baud rate (Cb) CAN ID CAN ID (Default 126) (CI) Reset Press the UP and DOWN buttons...

  • Page 22: Initial Operation (Quick Start)

    5.4 Initial operation (quick start) 1. Connect power supply (litz wire/pin 1 and litz wire/pin 2) 2. Switch on power supply → Display shows 3. Select number of solenoids Single-action, twin and 2 single-action solenoids can be selected. Display Description No selection, invalid input (C-) One single-action solenoid...
  • Page 23 4. Select operating mode The correct definition of the input signal is crucial for faultless operation. The common variants have been pre-defined. Display Input signal Connection No selection, invalid input (t-) 0 to 10 V DC Analogue input 1 (t0) 4 to 20mA Analogue input 1 (t1)
  • Page 24 5. Select supply voltage Display Description No selection, invalid input (U-) 12 VDC supply voltage (12) 24 VDC supply voltage (24) Operating mode using the UP and DOWN buttons Confirm the selected operating mode with OK → Display shows 09-2015-1.0 - D 7818/1 - EV2S-CAN www.hawe.de | 2015...
  • Page 25 6. Select valve type Valve-specific settings, such as minimum current, maximum current, dither amplitude and dither frequency are crucial for ensuring that operation is as accurate as possible. Basic settings have been pre-defined for the common valves. Display Valve type Minimum current Maximum current Dither amplitude...

  • Page 26: Instructions For Setting Up With Software

    5.5 Instructions for setting up with software The parametrisation and creation of easier, more logical processes for the EV2S-CAN plug type amplifier can be carried out using the HAWE visual tool parameterisation software via the CAN interface. A CAN USB dongle is required for this. The software can be downloaded from this link: http://downloads.hawe.com/E/Hawe_Visual_Tool_Beta.zip A detailed description of the software and setting options is available in the document EV2S-CAN manual.

  • Page 27: Error Management

    5.6 Error management The error code display consists of two displays. Firstly, the text "Er" is displayed, then the display changes to the error number. The error number is composed of a group and an error. For example, the group represents the analogue input 1 or the temperature error. The following groups are stored Group number Designation...

  • Page 28: Typical Circuits

    Typical circuits Example A Operation with an external target value potentiometer at analogue input 1 Example B Operation with two external target value potentiometers at analogue input 1 and 2 Example C Operation in the CAN bus network Example D Operation in the CAN bus network and reading of a sensor Example E...

  • Page 29: Additional Version And Use

    ■ Directional spool valve type NSWP 2: D 7451 N HAWE Hydraulik SE Streitfeldstraße 25 | 81673 München | Postfach 80 08 04 | 81608 München | Germany Tel +49 89 379100-1000 | Fax +49 89 379100-9100 | info@hawe.de | www.hawe.com...

This manual is also suitable for:

Ev2 s-can-g-l3kEv2 s-can-g-mEv2 s-can-dg-l3k
