Summary of Contents for DiamondBoxx XL2

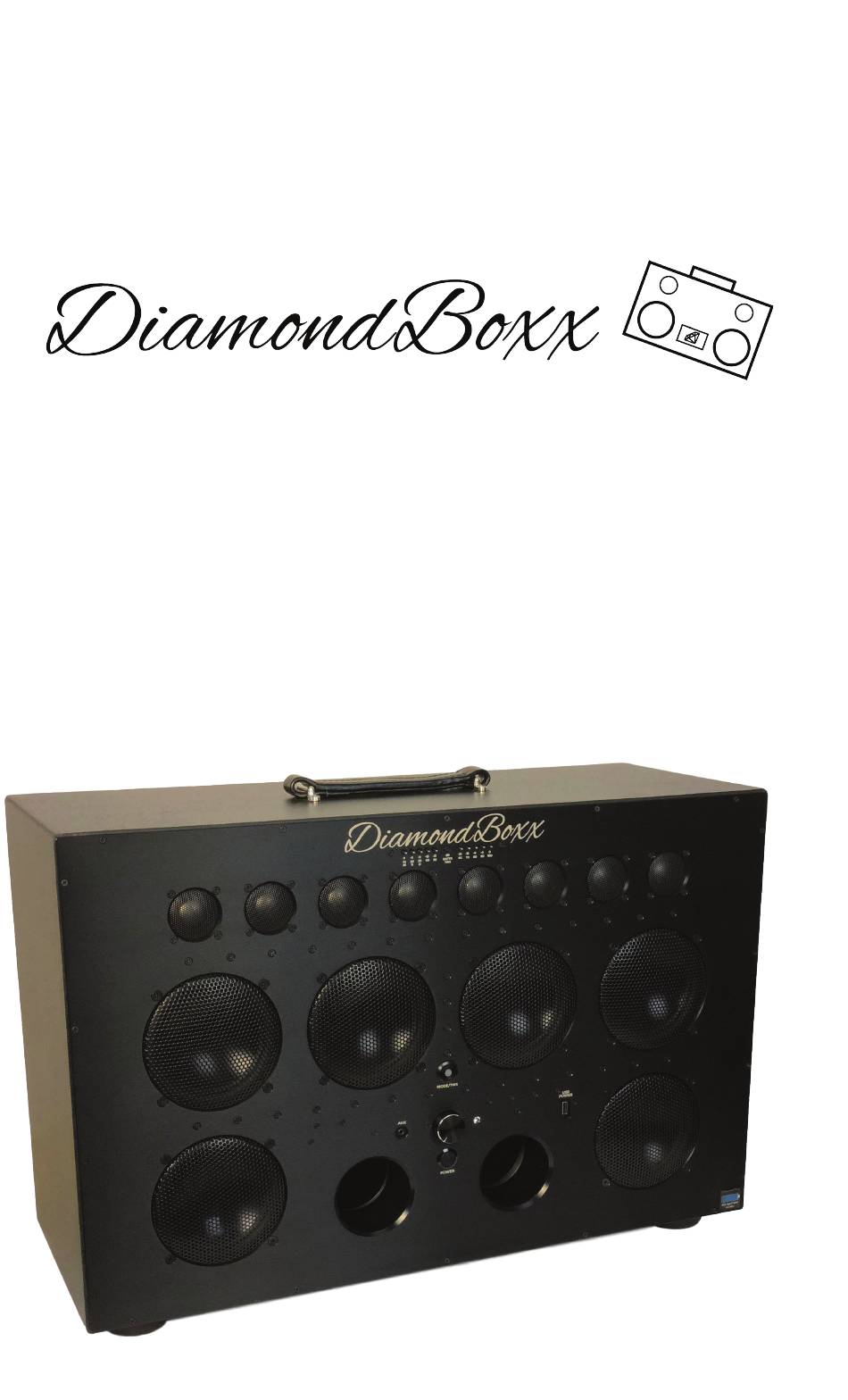

- Page 1 Model XL2...
- Page 3 (mode dependent) with active crossovers and DSP for the best sound possible in the lightest package with the longest battery life. Your DiamondBoxx was hand-built, cared for properly it should provide you with many years of listening pleasure. Happy Listening!
-
Page 4: The Power Button
2. The output volume level relative to maxium output 3. The TWS (True Wireless Stereo) setting mode When the DiamondBoxx is first turned on the LED display will display the battery level for about 5 seconds. After this the LED bar will become a stereo output volume level indicator. - Page 5 2. Connect the Bluetooth device to it 3. Power on the DiamondBoxx that will be SECONDARY unit 4. Press and hold the TWS button on Main DiamondBoxx until the LED under the letter “M” blinks rapidly, then release button. 5. Press and hold the TWS button on the Secondary DiamondBoxx until the LED under the letter “S”...
- Page 6 1. Make sure nothing else / nobody else is connected to it. 2. Power off DiamondBoxx for 30 seconds, then power on and look for DiamondBoxx XL2 to pop up on your mobile device, tap to connect. 3. Make sure you are within 50 feet line of sight, closer if objects,...
- Page 7 If the item you want to plug in doesn't have the right jack, your local electronics store will have an adapter. Note: If using the DiamondBoxx as an audio amplifier for a video source, (watching movies and etc.) the AUX jack should be used...
-
Page 8: Rear Panel
This is where you plug in the included charger to recharge your DiamondBoxx. USE ONLY THE INCLUDED CHARGER OR MAJOR DAMAGE CAN OCCUR, THE MODEL XL and XL2 USE A 7A 4 PIN CHARGER THAT IS DIFFERENT THAN MODEL M AND MODEL L CHARGERS. - Page 9 The Handle The handle was designed to make the DiamondBoxx portable while feeling good in your hand. It can lock in 2 positions. As with anything leather, it is a little stiff at first. A good pull on it should lock it in the upright position.
-
Page 10: Items Included
Lithium Ion 462 Wh Max Voltage 16.8V Battery Life Over 1000 recharge cycles Time to full recharge About 6 hours depending on volume level and music type Items Included DiamondBoxx Model XL2 Lithium Ion Battery Charger 3.5 mm stereo audio cable This manual... -
Page 11: Limited Warranty
Limited Warranty DiamondBoxx warranties this product to be free of defects in materials and workmanship for a period of two years from the original purchase date. This warranty is not transferrable and applies only to the original purchaser from an authorized DiamondBoxx dealer. - Page 12 Model XL2 Owner’s Manual, Revision 2 Spring 2020 Camarillo, CA 93012...
