- Page 1 ACH1000 Installation Guide Version 2.1 Part Number: 100260...
-
Page 2: Notice
Blue Sky Network NOTICE This guide is published and copyrighted by Blue Sky Network (BSN). All information and specifications in this document are subject to change without notice. Nothing in this document is intended to create addi- tional or separate warranties or guarantees. -
Page 3: Revision History
Warranty Section 10/10/2011 Tim Rudge 100258 Updated wiring harness diagrams from engineering revisions. 07/22/2014 Mathew Pearson 100258 Added reference to ACH1000 HELINK supplemental Install Guide 100271 (HELINK switching and QPos). Updated ACH1000 wiring diagram. Updated styling. 100258 ACH1000 Page 3... -
Page 4: Table Of Contents
July 2014 Blue Sky Network TABLE OF CONTENTS NOTICE ................................. 2 REVISION HISTORY ..............................3 INTRODUCTION ..............................6 ................................6 PPLICATION ..................................6 VERVIEW SYSTEM DESCRIPTION & OPERATION........................6 ..............................6 YSTEM ESCRIPTION General ................................. 6 ACH1000 F ..............................8 EATURES FAA/JAA APPROVAL .............................. - Page 5 DISCLAIMERS AND LIMITATION OF LIABILITY ......................18 WIRING ................................20 D1000A/C (DB9F – DB25M) ................... 20 ACH1000 ARNESS ACH1000 P ............................. 22 OWER ABLE ACH1000 ..........................23 POWER ABLE IAGRAM ACH1000 AND HAWKEYE LINK ..........................24 ADDITIONAL SUPPORT ............................25 100258 ACH1000 Page 5...
-
Page 6: Introduction

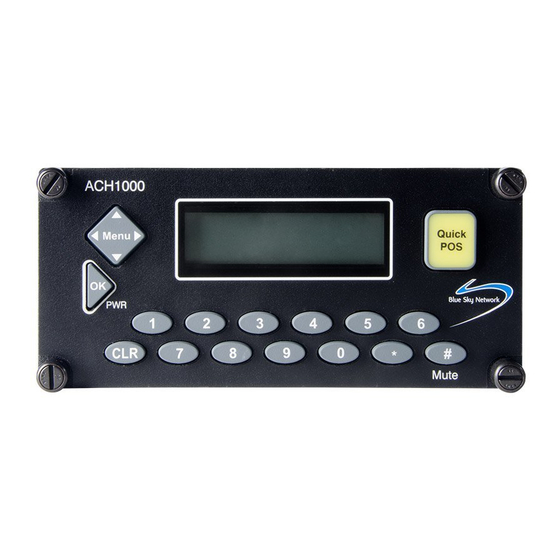

BLUE SKY NETWORK ACH1000 Control Head for Voice/Data Communication. Information, drawings and wiring diagrams contained in this manual are intended as a reference for engineering planning only. - Page 7 July 2014 Blue Sky Network All data services are managed by the customer through our asset management portal SkyRouter (www.skyrouter.com). SkyRouter offers global asset tracking and two-way messaging to and from any computer connected to the Internet. It also offers account management features, such as user and fleet management, and billing information.
-
Page 8: Ach1000 Features
Diagram ACH1000 FEATURES - System Status: the ACH1000 provides the GPS and Iridium signal strengths, Iridium network registration and D1000C synchronization information. - Voice Communication (PHONE): this option allows the pilot to use either the “Speed Dial” mode to call one of the pre-stored numbers or “Standard Dial”... -
Page 9: Faa/Jaa Approval
14 CFR (Code of Federal Regulations), Parts 23 and 25. See the Blue Sky Network website (www.blueskynetwork.com) for information on FAA Supplemental Type Certificates (STCs) that are held by Blue Sky Network, and EASA STCs that known to Blue Sky Network. - Page 10 July 2014 Blue Sky Network 100258 ACH1000 Page 10...
-
Page 11: Installation & Wiring
The ACH1000 Control Head has no licensing requirements. COOLING AIR REQUIREMENTS The ACH1000 has very low power usage so forced air cooling is not required for any of the components. However, units should be kept away from heat sources. AIRCRAFT INTERFACES The ACH1000 operates independent of aircraft navigation systems. -
Page 12: Wire Harness Fabrication & Installation Considerations
POWER WIRING To assure that the ACH1000 will operate properly down to its rated minimum input voltage, ensure that power wires of at least the recommended size are connected in accordance with the installation drawings. -
Page 13: Optional Visual/Audio Alert Feature
OPTIONAL VISUAL/AUDIO ALERT FEATURE A 5V ringer (examples: Mallory SC307N and SNP2) or a 5V LED can be connected to the ACH1000 DB9 connector (between pins 3 and 7) in order to signal incoming calls or messages (see next page’s Wiring Diagram). -
Page 14: Wiring Diagram
1, 2 and 6 of the DB9M Power Connector of the ACH1000, as the unit will use DB25F pin 5 as the ground reference (ACH1000 has only one ground plane, the common ground). By disconnecting these wires, the installer could eliminate the potential noise source (“ground loop”). -
Page 15: Ach1000 Installation
The exact location of the ACH1000 is at the option of the installer, but its DZUS mount compatibility makes it best suited for cockpit panel placement. It is important that the ACH1000 is located in front of the pilot in order to allow easy access and visualization. -
Page 16: Service Activations
Blue Sky Network SERVICE ACTIVATIONS Blue Sky Network handles all activation requests. An activation request can be submitted through our website, the link is shown below. You should receive an immediate email confirmation that your request has been submitted and another email once the requested services have been activated. Please make sure your contact details are accurate, this is how we contact you if there are any problems processing your request. -
Page 17: Product Warranty
LIMITATIONS ON YOUR RIGHTS USE AND INSTALLATION The ACH1000 is intended to be used and installed on aircraft only. Installation of this Product and any of its component parts and any other work performed on the airframe during installation must be performed in accordance with federal aviation administration (“FAA”) regulations and all other applicable regulations and may... -
Page 18: How To Get Warranty Service
Warranty service is available by contacting Blue Sky at the following telephone number (during business hours) or email address or by returning the Warranted Components to Blue Sky at the following address: Blue Sky Network, LLC. 1298 Prospect St. – Suite 1D... - Page 19 July 2014 Blue Sky Network Some states do not allow the exclusion or limitation of incidental or consequential damages and some states do not allow limitations on how long an implied warranty may last; therefore, the above limitations or exclusions may not apply to you.
-
Page 20: Wiring
July 2014 Blue Sky Network WIRING WIRE HARNESS ACH1000 TO D1000A/C (DB9F – DB25M) 100258 ACH1000 Page 20... - Page 21 July 2014 Blue Sky Network 100258 ACH1000 Page 21...
-
Page 22: Ach1000 Power Cable
ACH1000 POWER CABLE If the power harness between the circuit breaker and the ACH1000 is less than 10’, there is no need to connect two PWR wires and two GND wires to the D-Sub connector (the diagram below shows the case scenario for a long wiring scheme –... -
Page 23: Ach1000 Power Cable Diagram
July 2014 Blue Sky Network ACH1000 POWER CABLE DIAGRAM 100258 ACH1000 Page 23... -
Page 24: Ach1000 And Hawkeye Link
ACH1000 AND HAWKEYE LINK An ACH1000 which has had the HawkEye Link rework and is running firmware version 2.02 or greater will allow the user to freely switch between ACH1000 and Hawkeye Link (if installed) via the Settings menu on ACH1000, while being able to use the QPOS button on the ACH1000 at all times. -
Page 25: Additional Support
July 2014 Blue Sky Network ADDITIONAL SUPPORT If additional support is needed, please don’t hesitate to contact Blue Sky Network Technical Support using the details shown below. Blue Sky Network, 5333 Mission Center Rd. Suite 220, San Diego, CA 92108 Phone: +1 858 551 3894 | Fax: +1 858 225 0794 E: support@blueskynetwork.com | W: www.blueskynetwork.com...
