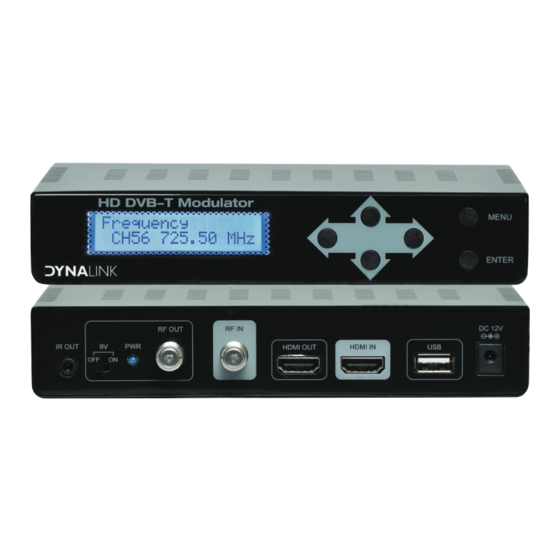

HDMI RF Digital DVB-T Modulator
with 1080p HDMI input
Operating Instructions
Features
• 1080p modulated resolution
• HDMI loop through
• 1080 HDMI input
• H.264 video compression
• 30dB MER (typical)
• 100BuV ±5 output level
• RF TV antenna input
• 38-56kHz IR frequency
• 9V IR pass over RF
• Includes power supply
Package Contents
1 x HDMI DVB-T Modulator
1 x IR Emitter
1 x IR Receiving Eye
1 x 12V Power adapter
1 x User Manual
A 1127A
Advertisement
Table of Contents
Related Manuals for Dynalink A 1127A
Summary of Contents for Dynalink A 1127A

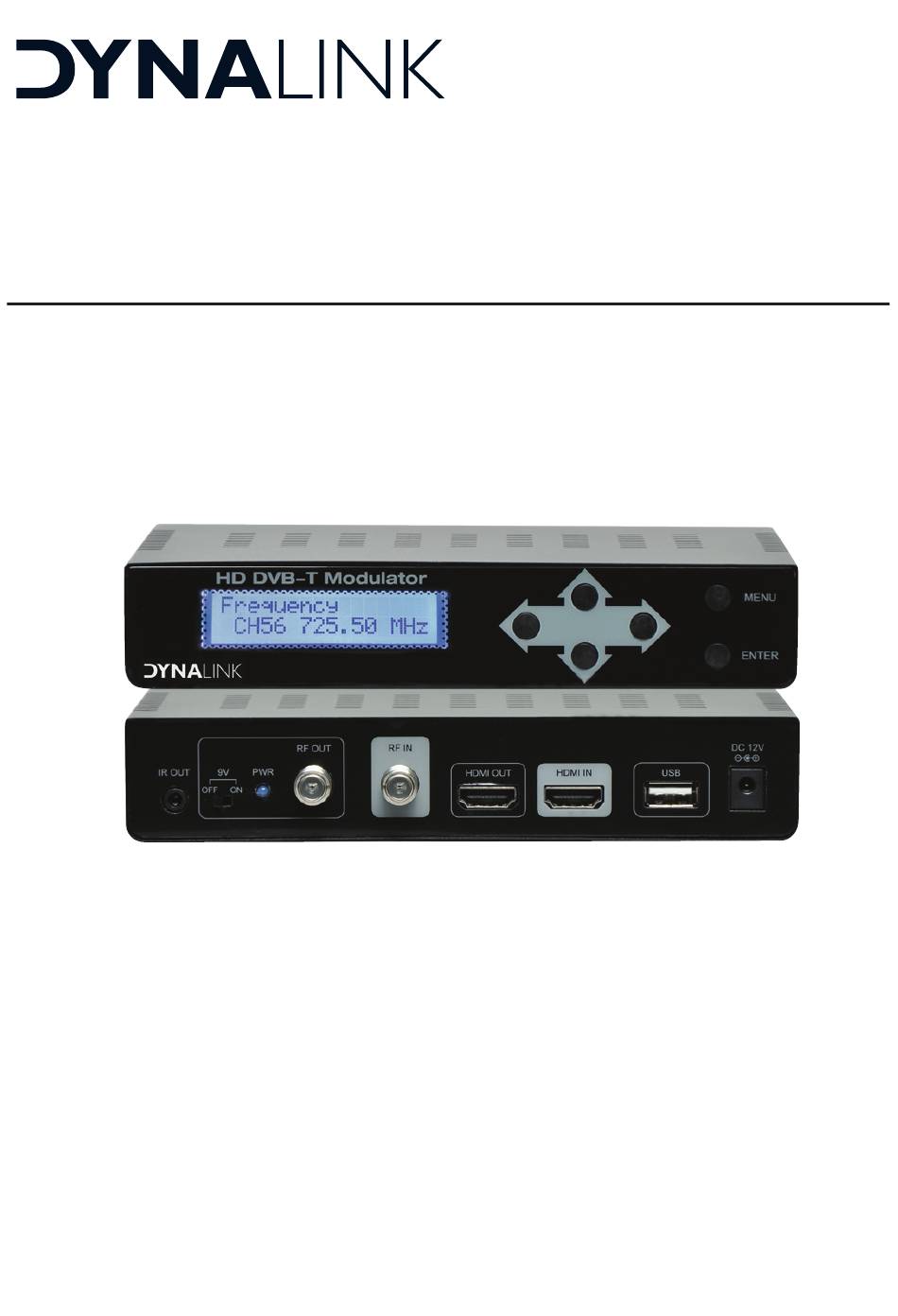

- Page 1 A 1127A HDMI RF Digital DVB-T Modulator with 1080p HDMI input Operating Instructions Features Package Contents • 1080p modulated resolution 1 x HDMI DVB-T Modulator • HDMI loop through 1 x IR Emitter • 1080 HDMI input 1 x IR Receiving Eye •...
-
Page 2: Specifications
A 1127A HDMI RF Digital DVB-T Modulator Overview A high performance HD modulator for HDMI sources with IR return path and HDMI loop through. This modulator allows you to distribute any HD device signals (Foxtel, DVD etc) in HD around the home or business with ease. - Page 3 A 1127A HDMI RF Digital DVB-T Modulator Specifications Connections: HDMI IN HDMI IN HDMI OUT HDMI Pass Through RF Output RF output (providing accessory power supply 9 volts DC for IR pass) DC Switch Power supply 9 volts DC for IR Pass...
-
Page 4: Installation
A 1127A HDMI RF Digital DVB-T Modulator Installation Using the Power Supply To start using it, connect the external power supply to the 230V mains and the 12V to the instrument input. Once connected to power, the device turns on and it takes about 18 seconds to be operational. Then the message “... -
Page 5: Product Overview
A 1127A HDMI RF Digital DVB-T Modulator Product Overview 1. Display (LCD) 2. Menu navigation keys 3. IR Output 4. 9V DC Switch 5. LED (9V DC Indicator) 6. TV COFDM Output (IR Return with 9V DC) 7. RF IN 8. -
Page 6: Configuration Menu
A 1127A HDMI RF Digital DVB-T Modulator Configuration menu 1. Frequency: It sets the frequency value for the output signal. Important: Check that the selected frequency is not already being used by a current television distribution channel. 2. RF Level Adj: It adjusts the power level of the output signal, in dB units. - Page 7 A 1127A HDMI RF Digital DVB-T Modulator Configuration menu...
- Page 8 A 1127A HDMI RF Digital DVB-T Modulator Altronic Distributors warrants this product for one year from date of purchase from Altronics or its resellers to the consumer. If this item is part of an installation or another product, please contact the installer or supplier for your warranty.
