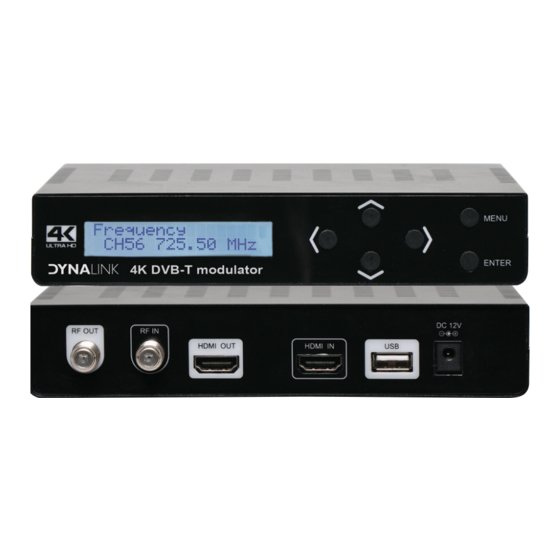

HDMI RF Digital DVB-T Modulator
Operating Instructions
Features
• 1080p modulated resolution
• HDMI 4K pass through
• H.264 video compression
• 30dB MER (typical)
• 100dB output level
• RF TV antenna input
• 177-858MHz frequency
• Includes power supply
with 4K Loop Output
Package Contents
1 x HDMI DVB-T Modulator
1 x 12V Power adapter
1 x User Manual
A 1129A
Advertisement
Table of Contents
Related Manuals for Dynalink A 1129A
Summary of Contents for Dynalink A 1129A

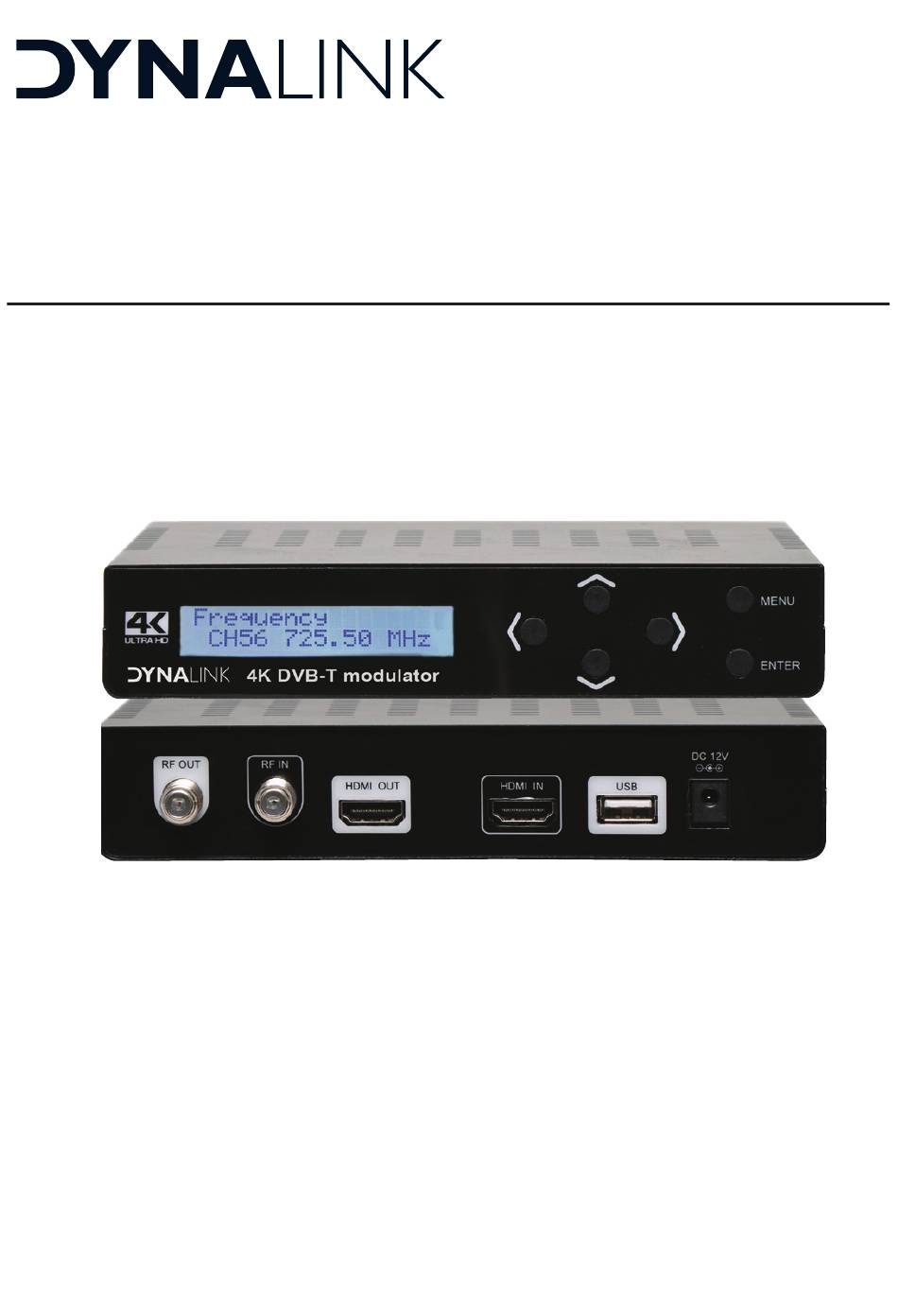

- Page 1 A 1129A HDMI RF Digital DVB-T Modulator with 4K Loop Output Operating Instructions Features Package Contents • 1080p modulated resolution 1 x HDMI DVB-T Modulator • HDMI 4K pass through 1 x 12V Power adapter • H.264 video compression 1 x User Manual •...
- Page 2 A 1129A HDMI RF Digital DVB-T Modulator Overview A high performance HD modulator module able to generate a signal in DVB-T format (Digital Terrestrial Television) from HDMI input. This mod- ulator allows you to distribute any HD device signals (Foxtel, DVD etc) in HD around the home or business with ease.
- Page 3 A 1129A HDMI RF Digital DVB-T Modulator Specifications Source Input: Input Channel Video HDMI Video System 480i/p, 576i/p, 720p, 1080i/p, 4K(3840x2160 or 4096x2160) Audio System HDMI Compression: Video Video Resolution 1080p 25 / 30 Max Video Bit rate 12Mbps MAX...
- Page 4 A 1129A HDMI RF Digital DVB-T Modulator Installation 1. Power Supply: Connect the external power supply to the 100~230V mains and the 12V to the DC input. Once connected to power, the device turns on and it takes about 30 seconds to be operational.
- Page 5 A 1129A HDMI RF Digital DVB-T Modulator Product Diagram 1. Display (LCD) 2. Menu navigation keys: • ENTER Key : Select parameter, or menu • L / R Keys : Move menu, or characters • Up / down : Select value of the figure, or field •...
- Page 6 A 1129A HDMI RF Digital DVB-T Modulator Starting 1. After connecting the power to the instrument, the message “Initial….” “Please Wait...” appears for 37 seconds. 2. Then the message “Keyboard Locked” appears. To access to the configuration menus the user has to enter a password.
- Page 7 A 1129A HDMI RF Digital DVB-T Modulator Configuration menu 21. NIT Version: Network Information Table version. In some countries it should match with other tables version received from the receiver. 22. Information: It shows the firmware version installed in the modulator.
- Page 8 A 1129A HDMI RF Digital DVB-T Modulator...
