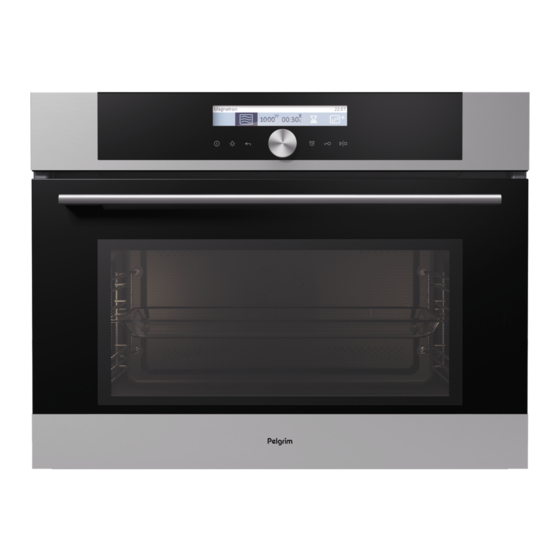

Pelgrim MAG624RVS Instructions For Use Manual
  1. Manuals
  2. Brands
  3. Pelgrim Manuals
  4. Microwave Oven
  5. MAG624RVS
  6. Instructions for use manual

Pelgrim MAG624RVS Instructions For Use Manual

Hide thumbs Also See for MAG624RVS:
Table of Contents

Advertisement

Quick Links

Download this manual
MAG624RVS
MAG624MAT
Instructions for use
Microwave

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAG624RVS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pelgrim MAG624RVS

Summary of Contents for Pelgrim MAG624RVS

  • Page 1 MAG624RVS MAG624MAT Instructions for use Microwave...
  • Page 2 Instructions for use EN 3 - EN 29 Pictograms used Important information...

  • Page 3: Table Of Contents

    CONTENTS Your microwave Introduction Control panel Description Guide rails/Telescopic guide rails Accessories Door switches Cooling fan Controls First use First use Using the microwave ‘Auto’ and ‘Quick recipes’ mode Microwave mode Microwave use Multiphase cooking (cooking step by step) Start the program End the program My mode (favourite recipes) Extra (selection of additional functions)

  • Page 4: Your Microwave

    YOUR MICROWAVE Introduction Congratulations on your choice of this Pelgrim microwave. This product was designed with simple operation and optimum comfort in mind. With the extensive setting options, you can always select the right method of preparation. This manual describes the best way to work with this microwave. In addition to information on operation, you will also find background information that may come in handy when using the appliance.

  • Page 5: Control Panel

    YOUR MICROWAVE Control panel Auto 12:07 1. On/Off key 2. Lighting on/off 3. ‘Back’ key - Brief touch: return to previous menu level - Long touch: return to starting menu 4. Multi function selector - Setting is selected by turning the button - By pressing the button the setting is confirmed 5.

  • Page 6: Description

    YOUR MICROWAVE Description Level 4 Level 3 Level 2 Level 1 1. Control panel 2. Guide levels 3. Door 4. Door handle Guide rails/Telescopic guide rails • The oven has four or five guide rails (Level 1 to 4/5), depending on the model.

  • Page 7: Accessories

    Accessories Your appliance is accompanied by a range of accessories, depending on the model. Only use original accessories; they are specially suited to your appliance. Be sure that all the accessories that are being used are able to withstand the temperature settings of the chosen oven function.

  • Page 8: Controls

    YOUR MICROWAVE Controls On/off key (01) • To turn on and off the appliance. Illumination key (02) • The illumination is turned on automatically when you open the door or when you switch on the appliance. The light switches off automatically after approximately 1 minute.
  • Page 9 YOUR MICROWAVE Minute minder key (05) • The minute minder can be used independently of the appliance operation. The longest possible setting is 10 hours. After the set time expires an acoustic signal will be heard which you may turn off by pressing any key or wait to be switched off automatically after approximately 3 minutes.

  • Page 10: First Use

    FIRST USE First use • Remove all equipment, accessories, and utensils from the cavity and clean them with warm water and regular detergent. Do not use any abrasive cleaners. • When the appliance heats up for the first time, the characteristic smell of a new appliance will be emitted.
  • Page 11 FIRST USE Setting the Language Language 12:07 English Ceski In case you are not comfortable with the language in which text is displayed, you may select another language. • Default setting is ‘English’. 1. Turn the ‘Multi-function selector’ and select your preferred language from the displayed list.

  • Page 12: Use

    Using the microwave You may control your baking/roasting in several different modes. Rotate the ‘Multi-function selector’ and select the symbol. The symbol turns white. The name of the selected menu appears at the top. Confirm the setting by pressing the ‘Multi-function selector’. ‘Auto’...
  • Page 13 5. Select the type of food followed by selecting the appropriate dish with the ‘Multi-function selector’. 6. Confirm by pressing the ‘Multi-function selector’. Preset options appear on the display. 7. You may change them by turning the ‘Multi-function selector’, and confirming your selection by pressing the ‘Multi-function selector’.

  • Page 14: Microwave Mode

    Microwave mode Microwaves are high - frequency electromagnetic waves; the energy released enables food to be cooked or reheated without changing either the form or the colour. Cooking Principle 1. The microwaves generated by the microwave are distributed uniformly by using a stirrer distribution system. The food is thus cooked evenly.
  • Page 15 Microwave Cookware Remarks safe Aluminium foil Can be used in small quantities to prevent certain parts of the food from overcooking. Arcing can occur if the foil is too close to the oven wall or if too much foil is used. Porcelain and earthenware Porcelain, earthenware, glazed earthenware and ivory porcelain are usually suitable, unless they have...

  • Page 16: Microwave Use

    Microwave use Do not use metal cookware or utensils. See ‘Microwave cookware guide’. 1. Place the dish in the microwave. 2. Turn the ‘Multi-function selector’ to select ‘Microwave’ mode’. Microwave 12:07 3. Confirm by pressing the ‘Multi-function selector’. Microwave 22:36 ▷...

  • Page 17: Multiphase Cooking (Cooking Step By Step)

    7. Turn the ‘Multi-function selector’ to choose the cooking time. Microwave 22:36 8. Press the ‘Multi-function selector’ to select the cooking time. 9. Turn the ‘Multi-function selector’ to set the cooking time. 10. Confirm the setting by pressing the ‘Multi-function selector’. End of operation indicated on the display is calculated according to your setting.

  • Page 18: Start The Program

    5. Set the different steps according to your wishes and confirm by selecting the ‘Check mark’ with the ‘Multi-function selector’. The display shows the the total cooking time and the end time. 6. Press the ‘Start/stop’ key. The appliance starts to operate according to Step 1 (this step is flashing in the display).

  • Page 19: My Mode (Favourite Recipes)

    My mode (favourite recipes) Saving selected settings 1. Select ‘Add to my mode’ at the end of the cooking process with the ‘Multi-function selector’. 2. Confirm by pressing the ‘Multi-function selector’. Add to my mode 12:07 3. Select a number with the ‘Multi-function selector’ and confirm by pressing the ‘Multi-function selector’.

  • Page 20: Settings (General Settings)

    Cleaning With the cleaning function and a damp cloth, you can easily remove grease and dirt from the oven walls (see chapter ‘Cleaning’). Extra l Cleaning 12:07 Defrost This function uses microwaves. Dishes are defrosted quickly and efficiently. Use this function for slow defrosting of frozen dishes (cakes, biscuits, cookies, bread, bread rolls and frozen fruit).
  • Page 21 Move around the menu by turning the ‘Multi function selector’. Confirm each selection by pressing the ‘Multi function selector’. Language Select the language in which you would like the messages to be written on the display. Settings 12:07 Language Time Time Actual time of day must be set when the appliance is switched on for the first time, or when the appliance was disconnected from the power...
  • Page 22 Other settings • Factory settings After power failure or after the appliance is switched off all personal settings are saved and remain active. EN 22...

  • Page 23: Cleaning

    CLEANING Cleaning the appliance Clean the appliance regularly to prevent fat and food particles from accumulating, especially on the surfaces of the interior and the exterior, the door and the seal. • Activate the child lock (to prevent that the appliance is switched on accidentally).

  • Page 24: Removing And Cleaning The Wire Guides

    CLEANING Removing and cleaning the wire guides Only use conventional cleaners to clean the guides. • Remove the screw using a screwdriver. • Remove the guides from the holes in the back wall. Make sure the spacers fitted on the wire guides are not lost. Replace the spacers after cleaning;...

  • Page 25: Replacing The Oven Light Bulb

    CLEANING Replacing the oven light bulb The lamp in this household appliance is only suitable for illumination of this appliance. The lamp is not suitable for household room illumination. The light bulb (halogen G9, 230 V, 25 W) is a consumer item and therefore not covered by warranty.

  • Page 26: Troubleshooting

    TROUBLESHOOTING General If you have problems with your appliance, try the solutions suggested below. They may save you the time and inconvenience of an unnecessary service call. Food remains uncooked • Ensure cook time has been set correctly and the ‘Start’ key is pressed.
  • Page 27 Repairs should only be made by a qualified service technician. If the appliance requires servicing, unplug the appliance and contact Pelgrim Customer Service. When calling, please have the following information ready: • The model number and serial number (can be found inside the door) •...

  • Page 28: Your Oven And The Environment

    YOUR OVEN AND THE ENVIRONMENT Disposing of the appliance and the packaging This product is made from sustainable materials. However, it must be disposed of in a responsible manner at the end of its useful life. The government can provide you with information about this. The packaging of the appliance can be recycled.

  • Page 29: Cooking Test

    COOKING TEST Food tested in compliance with the EN 60705-2 standard MAG624 Microwave cooking Dish Equipment Guide (from Power (W) Cooking time System the bottom) (min) Egg custard, 1000 g Glass container, dimension 23-28 25x25 cm, uncovered + glass baking tray Sponge cake Round glass container, 22-25...
  • Page 30 EN 30...
  • Page 31 EN 31...
  • Page 32 The appliance identification card is located on the inside of the appliance. When contacting the service department, have the complete type number to hand. You will find the addresses and phone numbers of the service organisation on the guarantee card. *596511* 596511...
