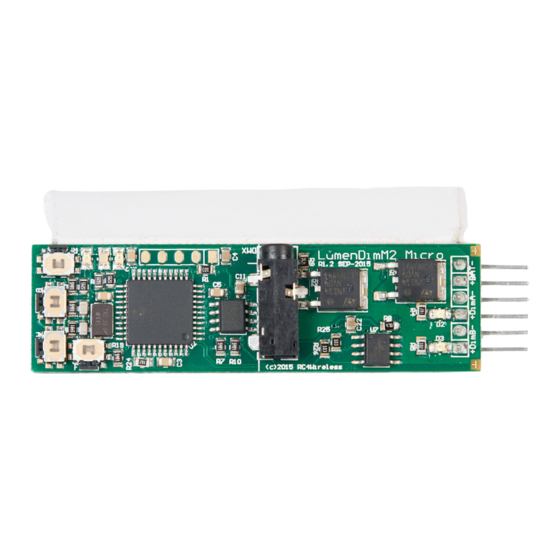

Related Manuals for RC4 Wireless LumenDimM2micro
Summary of Contents for RC4 Wireless LumenDimM2micro
- Page 1 Wireless Dimming | Wireless DMX | Wireless Motion Since 1991 W i r e l e s s LumenDimM2micro Quick Start Guide Rev. 1.0...
- Page 2 22 AWG wire, Amp connector P/N 3-641190-6. Numerous alternatives are available, each with different P/Ns. Use the correct shell for the wire you are using. Amp also supplies crimping tools for these connectors. One 22 AWG connector assembly is incuded with each LumenDimM2micro. Additional cable assemblies are available from RC4 Wireless.
-
Page 3: Registering Your Product
LumenDimM2micro Quick Start Guide LumenDimM2micro System Components To use your LumenDimM2micro wireless dimmer you will need: This guide will get you started using your RC4 LumenDimM2micro. Most • A DMX lighting console. LumenDimM2micro users will find all the information they need right here. -
Page 4: Performing A Factory Reset
SetA button, then release Func. Four indicators will Func RF Conn blink to confirm that factory settings are restored. When the RF Connect LED is off, the LumenDimM2micro is ready to be linked DMX Data DMX Data to your transmitter. -
Page 5: Setting The Dmx Address
The blue RF Connect LEDs on both the LumenDimIO and the LumenDimM2micro will flash for several seconds and then remain steady, The DimA and DimB LED indicators on the side of the LumenDimM2micro indicating that they are linked. are directly connected to dimmer outputs: they show you exactly what the dimmers are doing. - Page 6 Non-Sequential Channel Assignment DMX Data DMX Data * The LumenDimM2micro can control a variety of devices including solenoids, relays, servo motors, and much more. Dimmers don’t have to be sequential. You can use RC4 OneTouch™ with the Set buttons for...
- Page 7 The illustration on the previous page shows a 2-color LED device. There are The LumenDimM2micro default is the ISL dimmer curve, which is best for LEDs. 3 wires: one for the 12V common positive (+), and two wires for the unique This is also the curve that is selected with RC4 OneTouch™...
-
Page 8: Advanced Features
Failure caused by static • Using a small adaptor cable, the LumenDimM2micro can be used as a damage is not covered under warranty. wireless data receiver to deliver DMX to other devices. It can also be used •... - Page 9 North Carolina, USA, Local +44 (0)20 3289 8765 London, UK 1-866-237-6641 Toll Free Fax, North America Email: support@theatrewireless.com Website: www.rc4wireless.com Knowledge Base: http://rc4.info We’re here to help you at any time. James David Smith President and Chief Product Designer RC4 Wireless...
