Product Description
The NET-100 is an Ethernet adapter to the SCB-100 Serial Control Board for Da-Lite motorized screens and projector lifts. This Ethernet
adapter allows remote control of a screen or lift through a TCP/IP connection.
The NET-100 is classified as a serial device server, which by definition means that it makes available to client computers the Da-Lite
screen or lift as a serial device (enabled by the SCB-100). The NET-100 supports the suite of RS-232 commands developed under the
SCB-100, and allows those commands to be issued by an Ethernet enabled computer or third party controller.
Installation

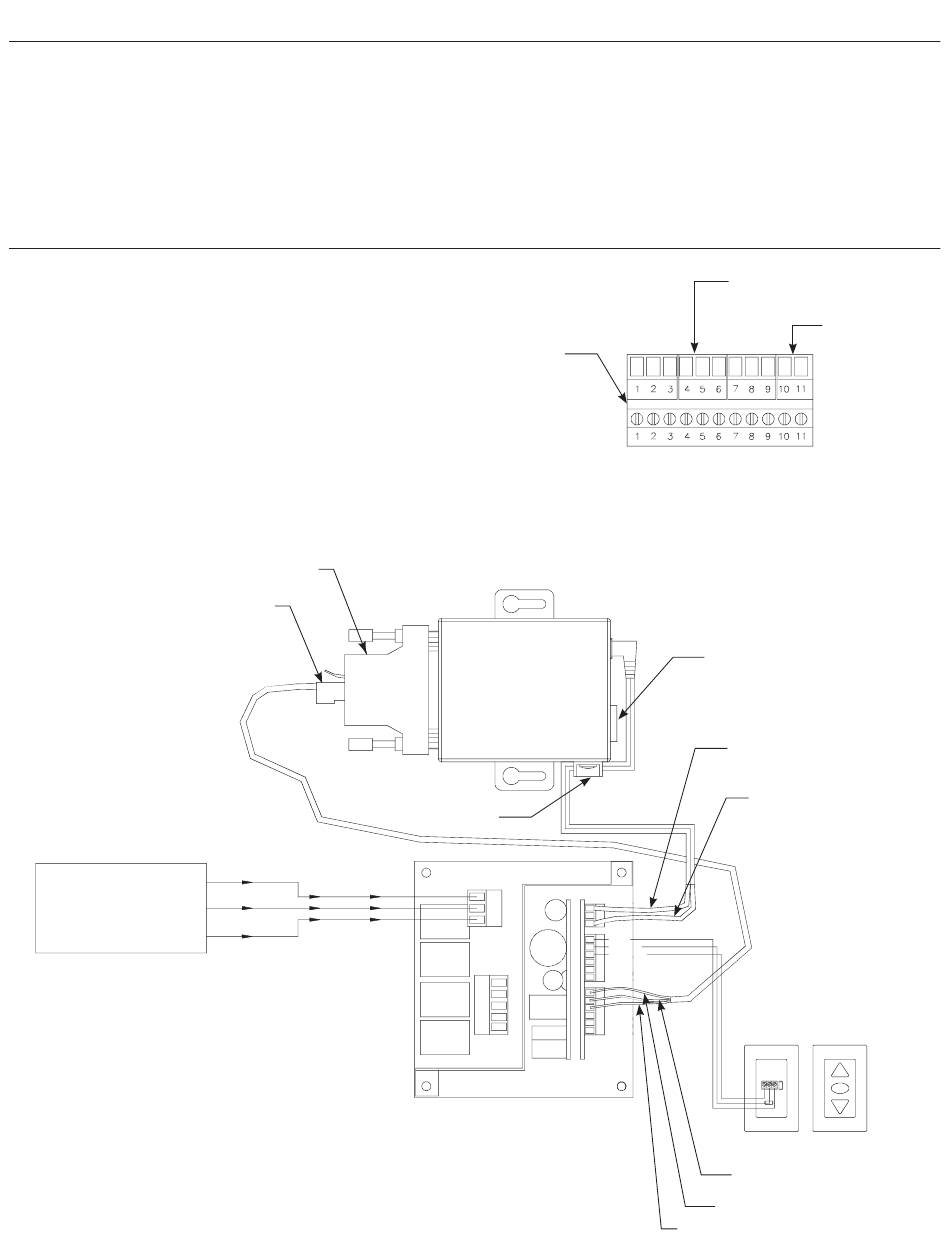

When connecting the NET-100, there are three connections that
must be made to the SCB-100 for proper operation: Power
+12Vdc, RS-232 Communication and Ethernet.
NOTE: If you ordered your screen with a built-in SCB-100 it will
come equipped with a 11-pin phoenix connector. The NET-100 will
be equipped with a 2-pin plug and 3-pin plug for connection. The
2-pin plug will plug into #10 and #11 and the 3-pin plug will plug
into #4, #5 and #6. (See Fig. 1)
If you did not order your screen with a built-in SCB-100, remove the 2-pin and 3-pin connectors from the NET-100. Refer to (Fig. 2)
RJ-45 Connector
RJ-45 PINOUT
PIN - 3 RX
PIN - 4 TX
PIN - 5 GR
PIN - 6 NOT USED
Power II IPut
120VAC / 60Hz
Once these connections have been made and power
is supplied to the SCB-100, the NET-100 will be
powered from the SCB-100.
Upon a successful connection, the power LED and
the status LED will turn on solid green. The green
10/100 Mb Link LED indicates the presence of
communication between the NET-100 and
one or more nodes on the network.
2
DB-25 to RJ-45
Adaptor
Black (Hot)
Black (Hot)
Green (Ground)
Green (Ground)
White (Common)
White (Common)
Terminal
Block
Strain Relief
NOTE: 20-24AWG Wire
Recommended For Connecting
Wall Switch To The SCB-100
Controller
Figure 2
3-Pin Plug
RS-232 Communication
Figure 1
RJ-45 Ethernet
Connection
Black With White
Stripe 12VDC+
Black Solid
12VDC -
+ 120 VDC OUT
- 120 VDC OUT
Red Up
Black (Down)
White (Common)
Red (Up)
Black (Down)
White (Common)
Rx - Data In
G - Ground
Back Of
TX - Data Out
RX - Data In
Wall Switch
G - Ground
Tx - Data Out
WBR
Green (Ground)
Black (Rx)
Red (Tx)
2-Pin Plug
+12VDC Output
Front Of
Wall Switch
Up
Stop
Down
