Sri PeakSimple 202 Quick Start Installation Manual

Quick Start

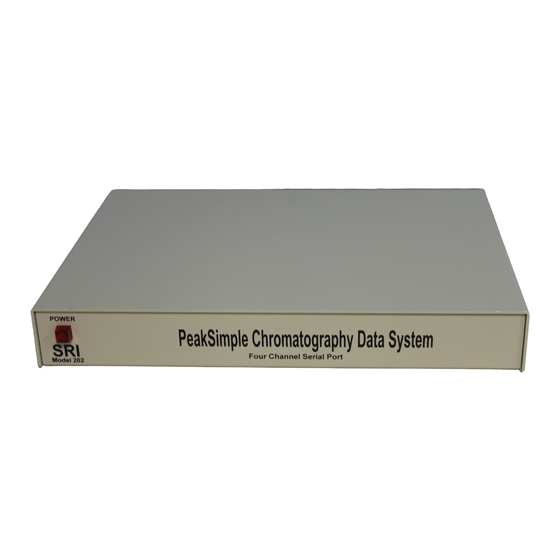

The Model 202 may be used with any brand or model of GC or HPLC
offering an analog detector output signal ranging from -5V to +5V. It includes two
independent, programmable controls (-5V to +5V analog output) for temperature
& pressure or HPLC gradient formation. The Model 202 has four channels, which
can be split any way between the two time bases (TIMEBASE 1 and 2). Two
remote start inputs compatible with 2-wire switch closures (typically output by GCs
and HPLCs as a remote start signal) are also included for your optional use.

Open the Model 202

Verify that the Model 202 is powered OFF and unplugged. Remove the thumbscrews on both sides of the
Model 202 box and slide the top cover up and off. It is connected to the bottom of the box by the ground wire,

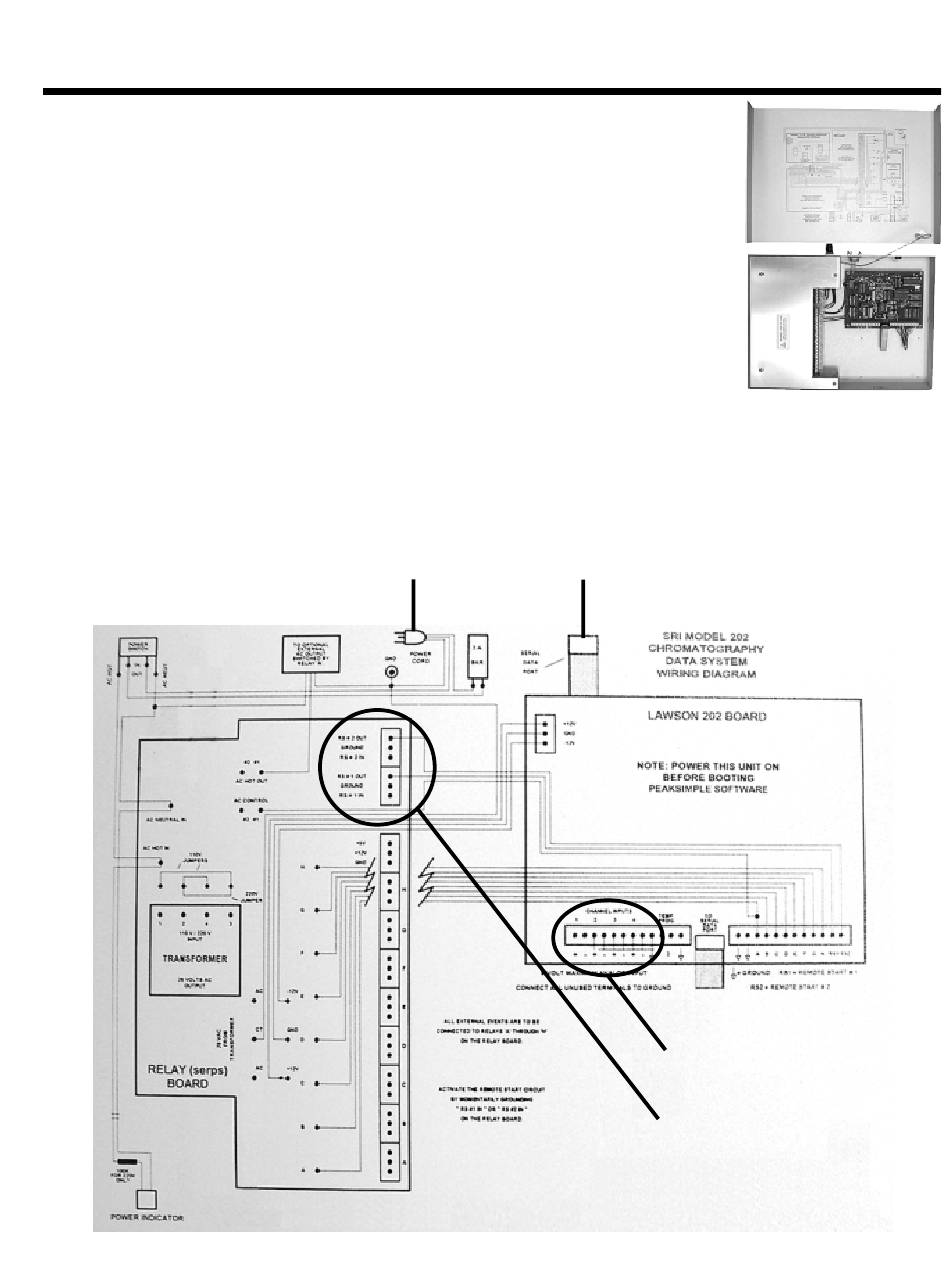

so just set it next to the bottom half of the box. There is a wiring diagram of the Model 202 circuit boards and
all wiring connections on the inside of the top cover. Use this wiring diagram (shown below) to complete steps
1-4 as described on the following pages, then proceed to steps 5 & 6 .
STEP 5: Install PeakSimple
Four Channel PeakSimple Data System
STEP 4 STEP 3
Step 6: Starting An Analysis
Model 202
STEP 1
STEP 2
(optional)
