Sri PeakSimple 203 Quick Start Installation Manual

Quick Start
The Model 203 may be used with any brand or model of GC or HPLC offering an
analog detector output signal ranging from 0-5V. It includes two independent,
programmable controls (0-5V analog output) for temperature & pressure or HPLC
gradient formation. A remote start input compatible with 2-wire switch closures
(typically output by GCs and HPLCs as a remote start signal) is also included for your
optional use.
Open the Model 203
Verify that the Model 203 is not plugged into a wall socket and is therefore powered
OFF (no power switch). Remove the thumbscrews on both sides of the Model 203
box and slide the top cover up and off. It is connected to the bottom of the box by the

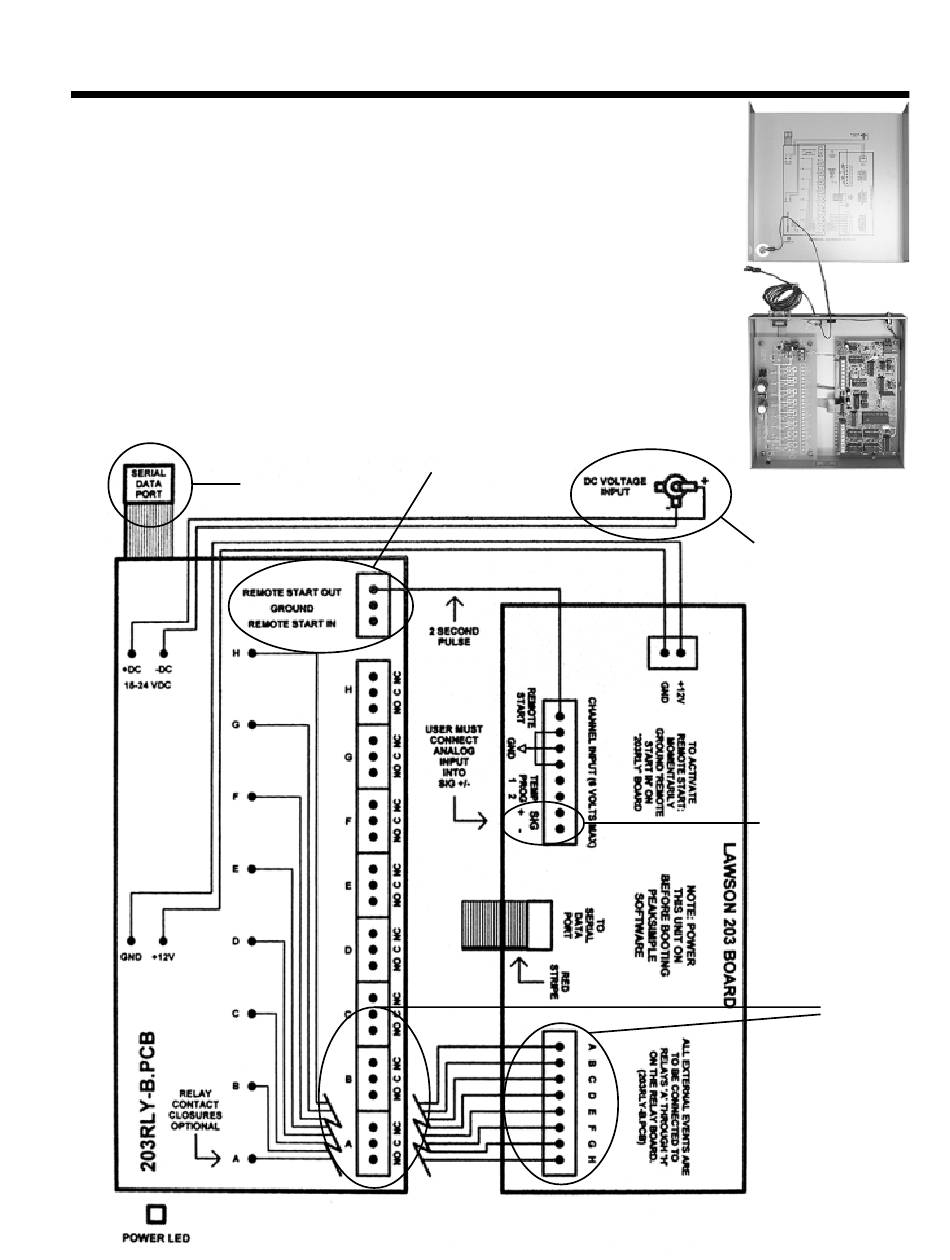

ground wire, so just set it next to the bottom half of the box. There is a wiring diagram
of the Model 203 circuit boards and all wiring connections on the inside of the top
cover. Use this wiring diagram (shown below) to complete steps 1-5 as described on
the following pages.
Single Channel PeakSimple Data System
STEP 4
STEP 2
(optional)
Model 203
STEP 5
STEP 1
STEP 3
(optional)
