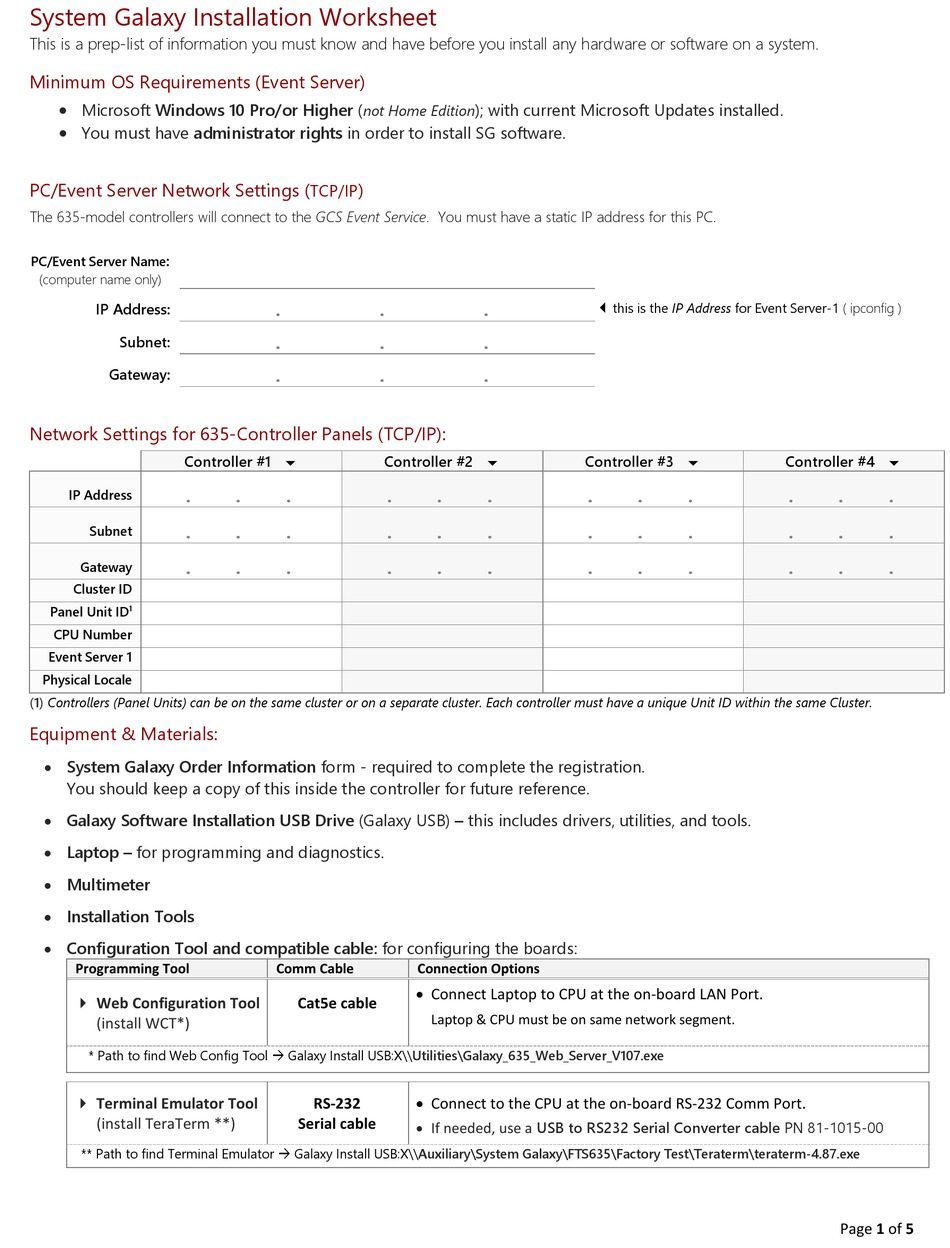

Galaxy Control Systems 635 Series Worksheet

System Galaxy Installation Worksheet

This is a prep-list of information you must know and have before you install any hardware or software on a system.
Minimum OS Requirements (Event Server)
Microsoft Windows 10 Pro/or Higher (
•
You must have administrator rights in order to install SG software.
•
PC/Event Server Network Settings (
The 635-model controllers will connect to the GCS Event Service. You must have a static IP address for this PC.
:
PC/Event Server Name
(computer name only)
IP Address:
Subnet:
Gateway:
Network Settings for 635-Controller Panels (TCP/IP):
Controller #1 
.
IP Address
.
Subnet
.
Gateway
Cluster ID
Panel Unit ID
1
CPU Number
Event Server 1
Physical Locale
(1) Controllers (Panel Units) can be on the same cluster or on a separate cluster. Each controller must have a unique Unit ID within the same Cluster.
Equipment & Materials:
• System Galaxy Order Information form - required to complete the registration.
You should keep a copy of this inside the controller for future reference.
• Galaxy Software Installation USB Drive (Galaxy USB) – this includes drivers, utilities, and tools.
• Laptop – for programming and diagnostics.
• Multimeter
• Installation Tools
• Configuration Tool and compatible cable: for configuring the boards:
Programming Tool
 Web Configuration Tool
(install WCT*)
* Path to find Web Config Tool  Galaxy Install
 Terminal Emulator Tool
(install TeraTerm **)
** Path to find Terminal Emulator  Galaxy Install
not Home Edition
)
TCP/IP
. .
. .
. .
Controller #2 
. . .
. . .
. . .
Comm Cable
Cat5e cable
USB:X\\Utilities\Galaxy_635_Web_Server_V107.exe
RS-232
Serial cable
USB:X\\Auxiliary\System Galaxy\FTS635\Factory Test\Teraterm\teraterm-4.87.exe
); with current Microsoft Updates installed.
.
.
.
Controller #3 
. . .
. . .
. . .
Connection Options
• Connect Laptop to CPU at the on-board LAN Port.
Laptop & CPU must be on same network segment.
• Connect to the CPU at the on-board RS-232 Comm Port.
USB to RS232 Serial Converter cable PN 81-1015-00
If needed, use a
•
this is the IP Address for Event Server-1 ( ipconfig )

. .
. .
. .
Controller #4 
. . .
. . .
. . .
