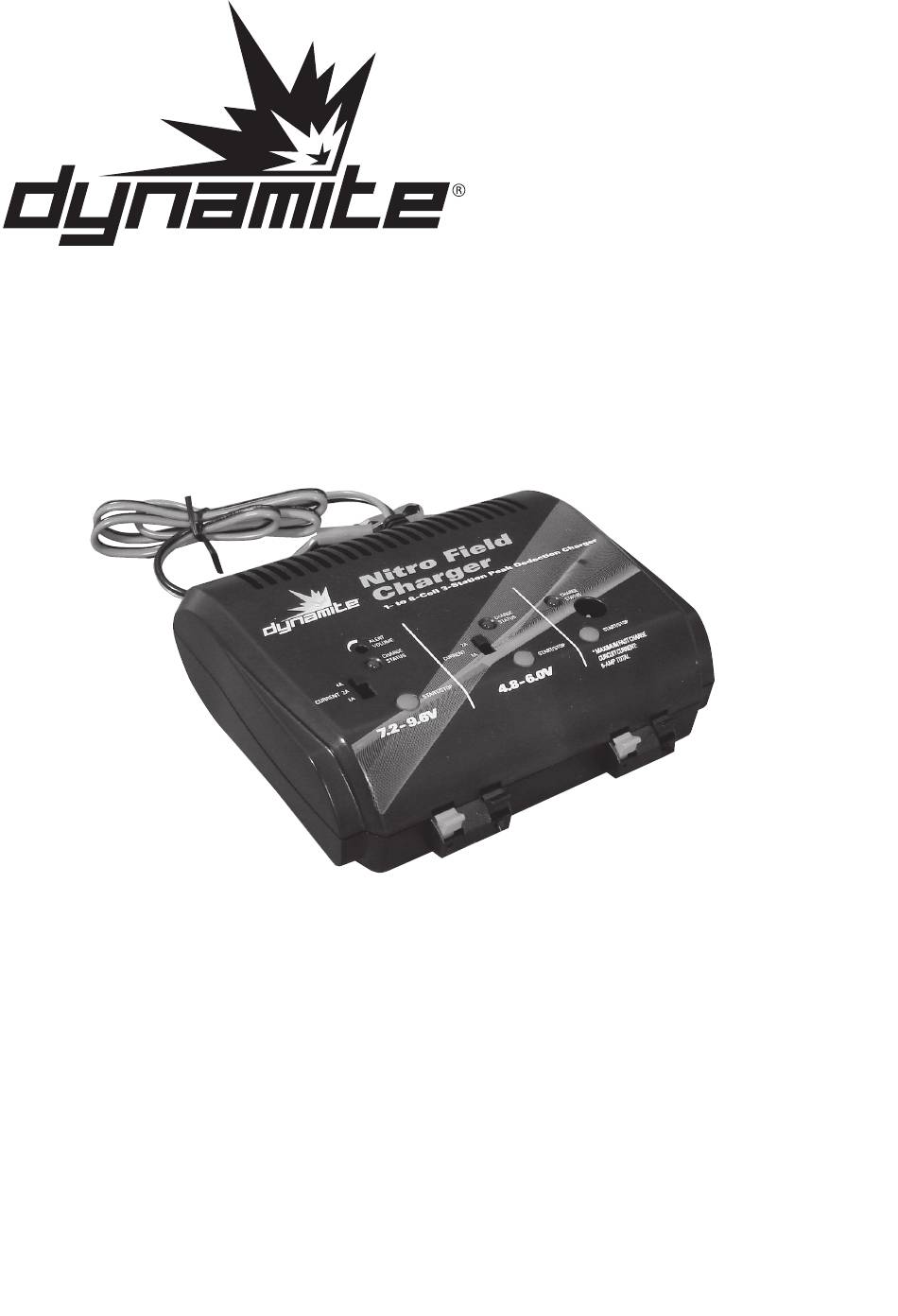

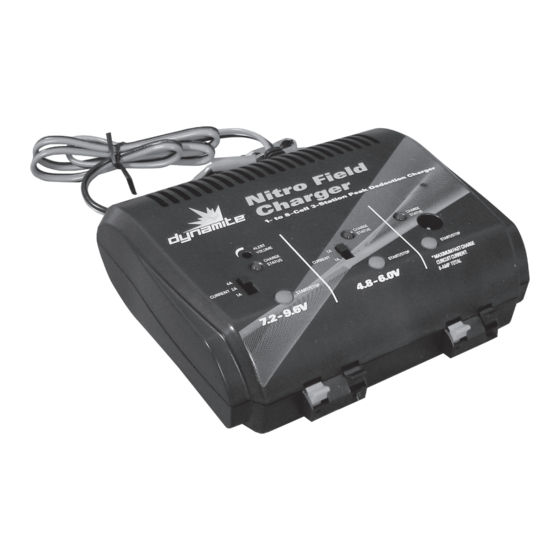

Nitro Field Charger

Introduction

Thank you for purchasing the DC Nitro Field Charger peak

detection charger. Charging 1-cell ni-starters, 6- to 8-cell,

and 4- to 5-cell Ni-Cd and Ni-MH battery packs safely

and efficiently has never been so easy. Just select a charge

rate of 1, 2 or 4 amps and press the appropriate start

button. The charger will automatically stop fast charging

when it senses the pack is fully charged and enters a safe

trickle charge mode to equalize cell voltage and maintain

full charge.

The beeper volume can be adjusted to suit the charging

environment. Simply use a small flat-bladed screwdriver to

adjust the alert volume from the front of the charger.

Features

• DC input power

• Ni-Cd and Ni-MH compatible

• Charge rates of 1, 2, or 4 amps

(maximum of 6 amps total)

• Heavy-duty alligator clips

• Advanced trickle charge

• LED and beeper indicate when charge is complete

• Charges 4- to 8-cell Ni-Cd or Ni-MH battery packs

• Charges single-cell ni-starters

• Receiver pack charge lead, Tamiya and BEC

connector adapter included

• Limited 5-year warranty

Need help?

Do you have a question about the Nitro Field Charger and is the answer not in the manual?

Page 1 Nitro Field Charger Introduction Features • DC input power Thank you for purchasing the DC Nitro Field Charger peak • Ni-Cd and Ni-MH compatible detection charger. Charging 1-cell ni-starters, 6- to 8-cell, • Charge rates of 1, 2, or 4 amps...
Page 2 Battery Packs 90 seconds. 1. When power is initially applied, the charger will beep and When the battery has peaked, the Nitro Field Charger will the LED will flash once. automatically transition to Advanced Trickle Charge. 2. Connect the appropriate charge lead to the corresponding Charging 1-Cell Ni-Cd or Ni-MH Ni-Starters charge jack with respect to polarity.
Page 3 Advanced Trickle Charge Limited Warranty Once the battery is fully charged, the charger will (a) This warranty is limited to the original Purchaser immediately enter a pulse trickle charge. This pulse trickle ("Purchaser") and is not transferable. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY charge will condition the battery, extend its life and make IS THE EXCLUSIVE REMEDY OF THE PURCHASER.
Page 4 Safety Precautions Warranty Inspection and Repairs To receive warranty service, you must include your This is a sophisticated hobby Product and not a toy. It original sales receipt verifying the proof-of-purchase must be operated with caution and common sense and requires some basic mechanical ability.
