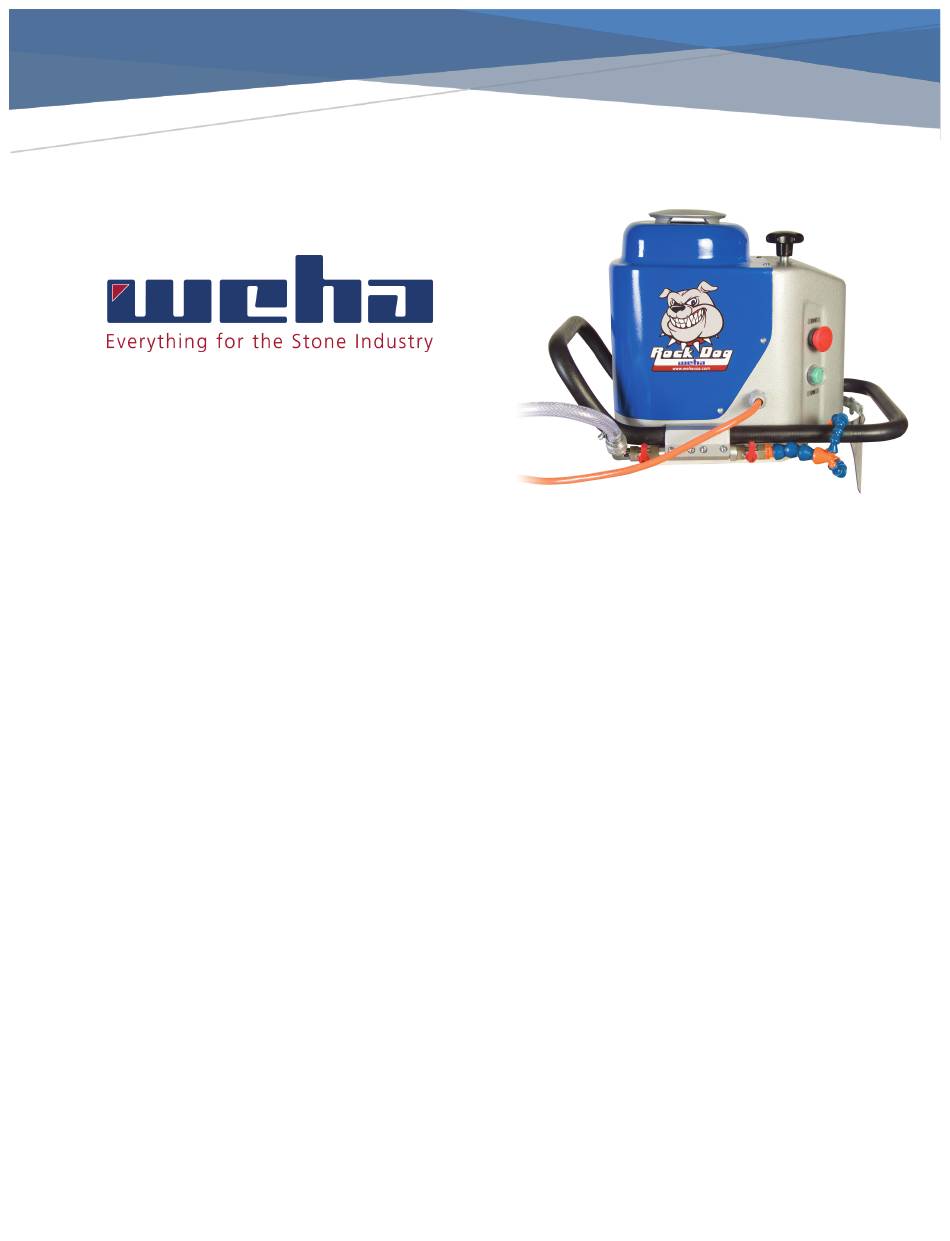

ROCK DOG ROUTER
Specifications:
•
Spindle:
•
Rotation speeds:
•
Tool holder diameter:
•
Rise and fall:
•
Frame:
•
Power:
•
Supply tensions:
•
Thermal overload safety cut-out
•
Base:
•
Machine:
•
Power cord:
•
Machine weight:
•
Packed wooden case:
•
Shipping weight:
Stainless steel
9,000 rpm
22.2 mm
30mm ( 1.18'')
1 Piece Aluminum housing
2.4 HP
220V/ 60Hz/ single phase
Aquaplaning system
length: 22", width: 13.7", height: 15''
20 feet 12 gauge AWF w/ground
77 lbs
23 ½" x 15 ¾" x 19 ½"
100lbs
Advertisement
Related Manuals for weha ROCK DOG ROUTER
Summary of Contents for weha ROCK DOG ROUTER
- Page 1 ROCK DOG ROUTER Specifications: • Spindle: Stainless steel • Rotation speeds: 9,000 rpm • Tool holder diameter: 22.2 mm • Rise and fall: 30mm ( 1.18'') • Frame: 1 Piece Aluminum housing • Power: 2.4 HP • Supply tensions: 220V/ 60Hz/ single phase •...
- Page 2 INSTRUCTIONS OR MISUSE OF EQUIPMENT. 1. INTRODUCTION The portable shape-milling machine Rock Dog Router has been designed and built for milling, shaping and polishing the edges of slabs of marble, granite or other stone materials in various profiles and thicknesses, safely and in compliance with current safety standards.
-
Page 3: Preparing The Machine For Operation
5. INSTRUCTIONS FOR MACHINE USE • Make sure the tool guard is correctly installed and securely attached before starting. Do not use the machine without the tool guard installed. • Use the machine only on polished surfaces! • Keep hands away from tools. Do not reach underneath work and do not attempt to remove any cut material while tool is in operation;... -
Page 4: Operation
7. OPERATION According to standard accident prevention precautions Wear approved safety clothing in good condition and, in particular, overalls or other comfortable garments, sized to prevent the risk of entanglement in moving machinery. Wearing anti-slip rubber boots is highly recommended. The operator is responsible for the correct use, adjustment, cleaning and maintenance of the machine. - Page 5 9. SPARE PARTS SPECIFICATION № DENOMINATION ITEM № PCS. № DENOMINATION ITEM № PCS. ELECTRIC DRIVE MOTOR – P2019.401 MR90C/2 INCL. CAPACITOR PIN BEARING BLOCK P2019.135 CAPACITOR P2019.402 PLATE SPRING P2019.136 SCREW – M6X10 P2019.103 38A WIDE WASHER – Ø8X20 P2019.
- Page 7 10. TABLE OF CONTENTS 1. INTRODUCTION 2. GENERAL OPERATING INSTRUCTIONS 3. INSTRUCTIONS FOR CONNECTING THE POWER SUPPLY 4. INSTRUCTIONS FOR CONNECTING THE WATER SUPPLY 5. INSTRUCTIONS FOR MACHINE USE 6. PREPARING THE MACHINE FOR OPERATION 7. OPERATION 8. MAINTENANCE AND CLEANING 9.
