DM2010 Manual Call Point Installation Sheet
EN DA ET
IT
LT
LV
1
EN: Installation Sheet
Description
This document includes installation information for UTC Fire &
Security DM2010 manual call points. These manual call points
are designed for use in UTC Fire & Security Aritech analogue
addressable fire alarm systems and include models for indoor
and outdoor use.
Installation
Caution:
This product must be installed by qualified personnel
adhering to the CEN/TS 54-14 standard and any other
applicable local authority laws.
Electrical connections

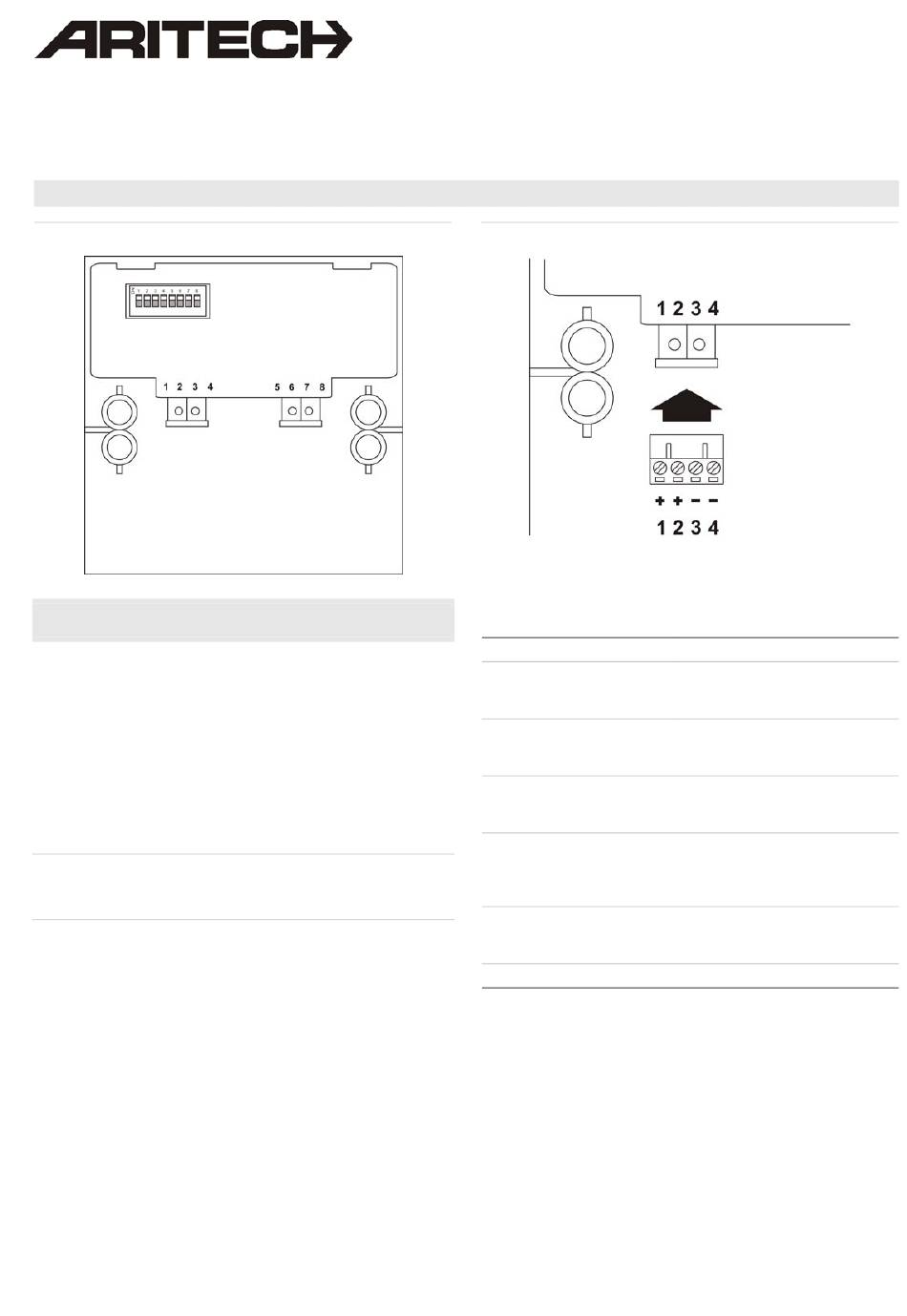

Connect to the DM2010 connection block (Figure
1.
Line in (positive)
2.
Line out (positive)
3.
Line in (negative)
4.
Line out (negative)
Addressing
Use the DIP switch (Figure 1) to allocate a device address
from 1 to 128 (see page 8).
Maintenance
Basic maintenance consists of a yearly inspection. Do not
modify internal wiring or circuitry.
© 2011 UTC Fire & Security. All rights reserved.
PL SV
2
) as follows:
2
Specifications
Voltage
Current consumption
Standby
Alarm
Cable size
Minimum
Maximum
IP rating
DM2010, DM2010-18
DM2010E, DM2010E-18
Operating environment
Operating temperature
Storage temperature
Relative humidity
Dimensions (W × H × D)
DM2010, DM2010-18
DM2010E, DM2010E-18
Weight
[1] Excluding surface mount
1 / 8
17 to 28 VDC
max. 250 ųA
max. 2.5 mA
2
0.8 mm
2
2.5 mm
IP24D
IP67
−10°C to +70°C
−20°C to +70°C
10% to 95% noncondensing
89 x 93 x 27.5 mm [1]
97.5 x 93 x 27.5 mm [1]
187 g
P/N 55300830-04 • REV 4.0 • ISS 11NOV11
