Summary of Contents for Salora ACE500

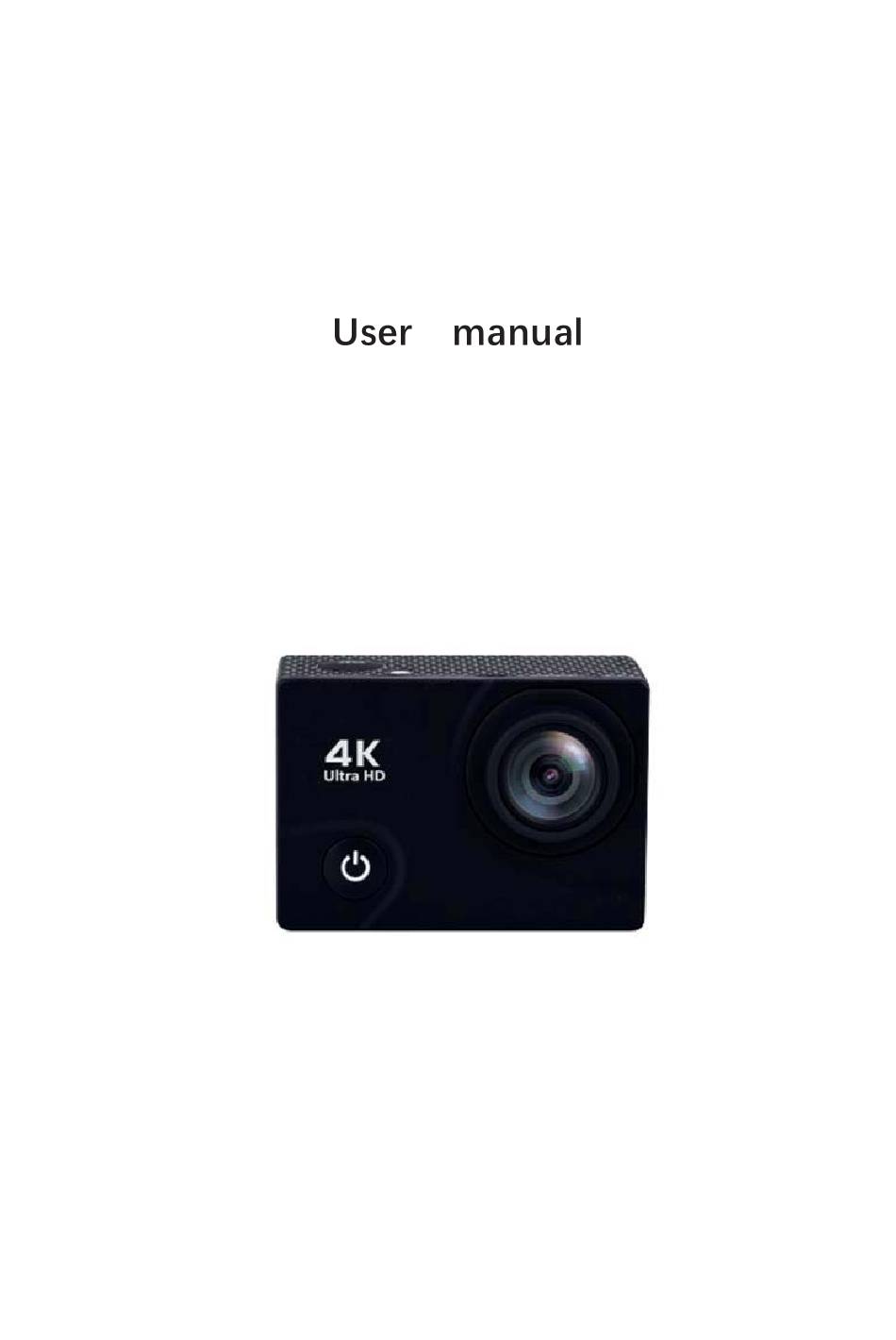

  • Page 1 ACE500...
  • Page 2 1. Function Thank you for choosing this camera. Please carefully read the manual before using, and keep it at a safe place for future reference. The compilation of the manual refers to the latest information. The manual quotes captured screen displays and graphics, with the aim to introduce the digital camera through detailed and direct methods.
  • Page 3 The recorded date may be damaged, in case one of the following situations with regard to the memory card : Improper use of the memory card; Disconnection of the power supply or taking the memory card out during recording, deleting (formatting) or reading; You are recommended to backup important data on an other media like soft disk, hard disk, CD.
  • Page 4 5. Removing the battery from the camera Start to use 1. Charge the built-in lithium battery The camera is equipped with built-in 3.7V lithium battery. Please ensure you have power available for the camera and charge it in time in case of a low battery.
  • Page 5 Connect the camera to computer for charging under shutdown status. The charging indicator will be on when charging, and will be off when the battery is fully charged. Generally, the battery can be fully charged after about 4 hours. Note: when the DV is on, it will not charge until the DV will be turned off. 2.
  • Page 6 • Recording mode: video can be recorded; • Photo mode: for taking photos; • Movement mode: Special for videos in movement; • Playback mode: for playing back the current video/photo from the SD Card. 5. Indicators 5.1 BUSY indicator: when the camera is working (e.g. recording, photographing, etc.), the indicator will light;...
  • Page 7 6.3 Screen display in movement mode 1. movement mode 2. resolution and fps. 3. Storage available. 4. Micro SD card. 5. WIFI. 6. Battery. 7. Date and time. 7.Playback mode Turn on the camera, you can press the mode key to enter playback mode. You can press the up/down key to choose the photo or video you want to play, then press the shutter key to enter preview.
  • Page 8 Recording and photo menu: 8.2 System Configuration menu After opening the menu by pressing power key, press mode key to switch over to setting main menu. Press up/down key to select menu, and after that to press shutter key to confirm entering the submenu.
  • Page 9 To configure the camera into time-lapse mode, enter in setting menu and then select photo settings. Enter in time-lapse submenu and adjust the shutting time for each photo. Keep in mind that in PAL-DV mode, to get 1 second in video you will need to take 24 photos;...
  • Page 10 synchronizing with HDTV display. Note: before connecting or removing the HDMI cable, please stop video recording and disconnect WI-FI first. 10. Connect to PC 10.1 When the camera is connected with the computer and entering removable disk mode, there will be a removable disk added in the window of “my computer”. The photo or video file may be stored in the catalogue of “DCIM \CAR, JPG, VIDEO”...
  • Page 11 successfully”. Note: the first time connecting to DV, you need to enter password “66666666”. 4. Click the icon in the App list of the smartphone or tablet to open it. Now you can preview the image sent by the DV on the phone or tablet and start operating. The operation interface on terminal is shown in above-right position figure.
  • Page 12 11.3. IOS APP 1. Install “ XDV” APP ( provided by dealer or via internet) on iOS phone or tablet. When installation is completed, the LCD will display icon 2.Enable Wi-Fi on iOS phone or tablet and search for wireless AP signal “X10000_XXXX”, then connect it to DV, until the system displays “Connected successfully”.
