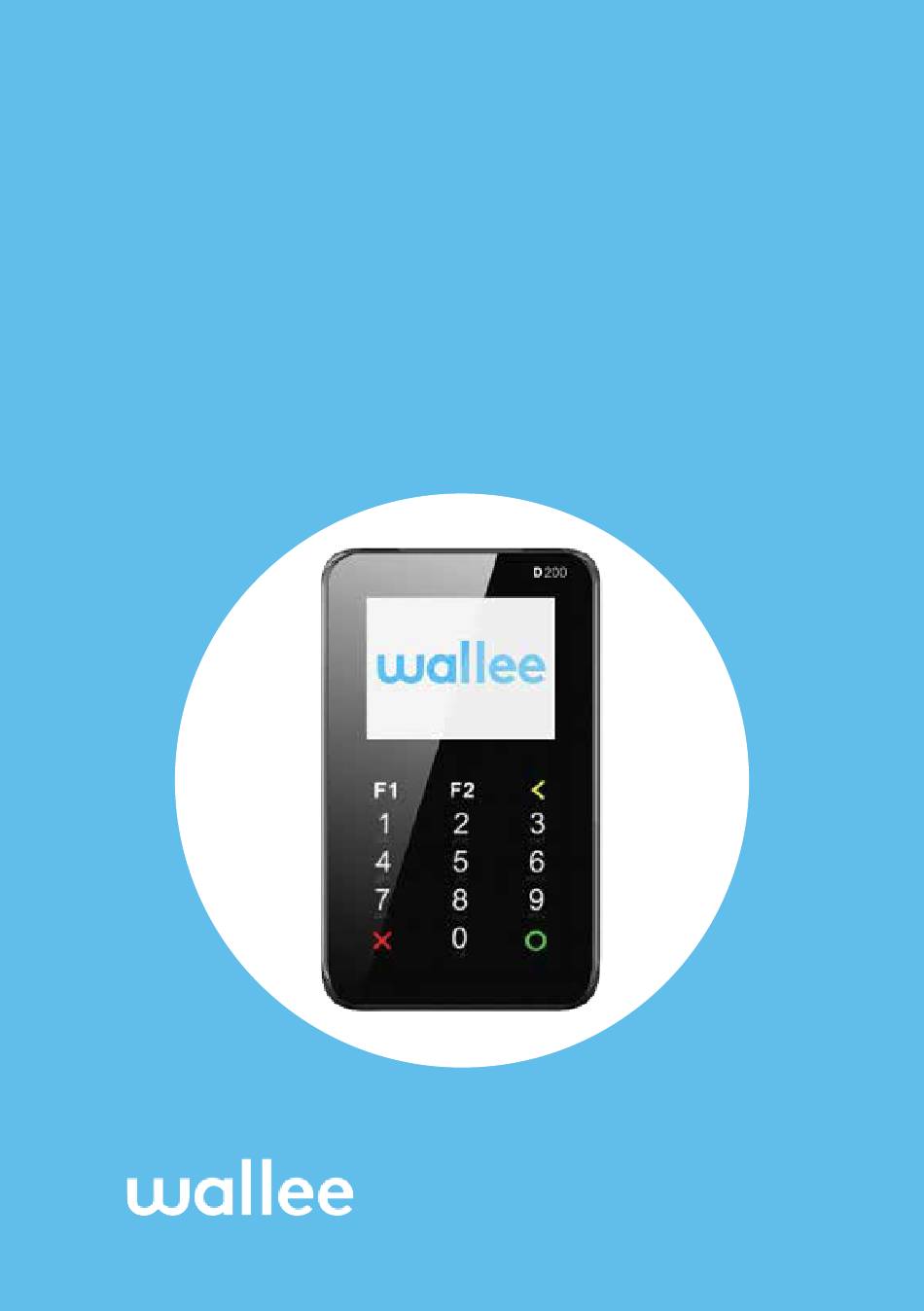

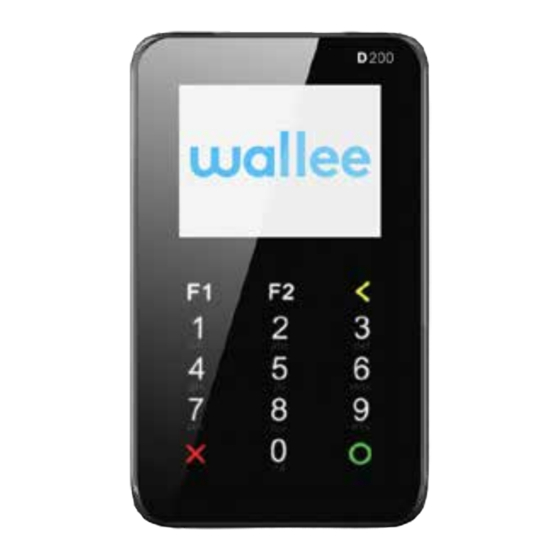

- Page 1 USER MANUAL D200 Custombweb GbmH...
-
Page 2: Table Of Contents
Table of contents Scope of Delivery Installation Instruction Keyboard Details Configuration Transactions and Postings Postings Cancellation of Postings Manual Entry of the Postings Daily Closing Currency Choice Support... -
Page 3: Scope Of Delivery
Scope of Delivery Stromkabel und Netzteil... -
Page 4: Installation Instruction
Installation Instruction 1. Connect the power cable to the power supply unit. 2. Connect the cable to the payment terminal. 3. Switch the device on with the On/ Off button at the top of the device. 4. Insert the SIM card into the slot pro- vided for this purpose. Ensure that the contacts are facing down and that the bevelled corner of the SIM card is po- sitioned as shown. You can then close the cover again.* * SIM card is already inserted in some terminals. - Page 5 Activate WiFi » Press the «Menu» button. » Select Setup > Device Setting and confirm with OK. » Enter the merchant password 2005. » Select Connection config. > Connection settings > WiFi settings. » Select Scan nearby APs to find the desired connection » Select the connection. » Enter the WiFi password and confirm with OK. » Icon will show on the display. Your new PAX terminal runs by default with the SIM card inserted. Should this fail, the device will automatically search for a WiFi or a Bluetooth connection, which must be activated in advance.
-
Page 6: Keyboard Details
Keyboard Details Navigation Keys Menu F1 Navigate Up Access to main menu F2 Navigate Down 1...9 Numerical Keys Confirms the selection or the entries... -
Page 7: Configuration
Configuration During configuration and initialization, the payment terminal settings are checked and updated. PROCEDURE - INSTALLATION OF THE TERMINAL KEY / SYMBOL CONFIGURING THE TERMINAL 1. Switch on the terminal by pressing Stop the “Stop” button 2. Press the «Menu» button Menu 3. Select Setup > Configuration 4. Enter the merchant password* 2005 5. Confirm the merchant password INITIALISE THE TERMINAL INITIALISIEREN 1. Press the «Menu» button Menu 2. Select Setup > Initialisation 3. Enter the merchant password* 2005 4. Confirm merchant password 5. Select All If problems should occur with your terminal, please reconfigure and reinitialize your terminal again briefly. * Your new PAX 920 and Q80 terminal is configured with the 2005 merchant password by default. -
Page 8: Transactions And Postings
Transactions and Postings Contactless cards will be issued on demand. The payment terminal is held at a distance of less than 4 cm above the display. Chip cards are inserted with the chip forward pointing into the chip card reader. The card must remain in the reader until the payment process is completed. -
Page 9: Postings
POSTINGS To help you get to the main payment function more quickly, the terminal has a speed dial key 5 . The symbol corresponds to an action that must be carried out by your customer. PROCEDURE - TRANSACTIONS / POSTINGS KEY / SYMBOL 1. Press key 5 2. Enter the amount 1 ... 9 3. Confirm the amount 4. Insert the card with chip into the chip card reader, through the magnetic strip reader or closer hold it as 4 cm to the display of the terminal WHEN THE TIP IS ACTIVATED (OPTIONAL AVAILABLE): 1. Confirm the amount before tipping 2. Enter the tip 1 ... 9 3. Confirm the tip amount WHEN THE PIN IS QUERIED: 1. Enter the PIN code 1 ... 9 2. Confirm the PIN code 3. Confirm the amount with OK WHEN THE SIGNATURE IS REQUIRED: 1. Sign the receipt 2. Check the signature on the receipt* * The signature must be identical to that on the back of the card... -
Page 10: Cancellation Of Postings
Cancellation of Postings The cancellation function allows you to cancel the last one on the terminal cancel the transaction carried out. PROCEDURE - TRANSACTIONS / POSTINGS KEY / SYMBOL 1. Press the "Menu" button Menu 2. Choose the Transactions section 3. Confirm the Transactions section 4. Select and confirm the section Reversal 5. Enter the merchant password 2005 6. Confirm the merchant password 7. Confirm the cancelled amount... -
Page 11: Manual Entry Of The Postings
Manual Entry of the Postings The following bookings can be entered manually via the “Menu” key on your terminal. Posting Posting at own risk Posting with Cashback Credit note Phone Authorized Balance enquiry Cash withdrawal Posting Phone Order Activate card Reservation Posting Mail Order Cancellation... - Page 12 Manual Entry of the Postings PROCEDURE - MANUAL ENTRY/POSTING KEY / SYMBOL 1. Press the «Menu» button to get to the main menu Menu 2. Select and confirm Transactions > Manual Entry 3. Selecte and confirm Purchase or Reversal 4. Enter the amount 1 ... 9 5. Confirm the amount 6. Enter the card number 1 ... 9 7. Confirm the card number 8. Enter the card code 2, which is located on the 1 ... 9 back of the card 9. Confirm the card code 2 10. Enter the expiry date of the card 1 ... 9 11. Confirm the expiry date of the card 12. Confirm the amount 13. Confirm the last message...
-
Page 13: Daily Closing
Daily Closing At day-end closing, all bookings made on the terminal during the day are sent to the acquirer (e.g. Aduno). A transaction journal is printed as soon as the day-end closing has been carried out. Aduno recommends that the transactions be submitted daily. PROCEDURE - DAILY CLOSING KEY / SYMBOL 1. Press the «Menu» button to get to the main menu Menu 2. Select Final Balance 3. Enter the merchant password 2005 4. Confirm the section Final Balance... -
Page 14: Currency Choice
Currency Choice Currency Choice is a service that enables the customer to its purchases directly in its own national currency pay. PROCEDURE - TRANSACTIONS /CC KEY / SYMBOL 1. Press key 5 2. Enter the amount 1 ... 9 3. Confirm the amount 4. Enter the card with the chip into the chip reader slot, slide the magnetic strip of the card through the magnetic reader oder hold the card as close as 4cm to the device. If the device recognises a foreign card, the Currency Choice is offered. 5. The terminal will ask the host for their Rate request Currency Choice Please wait 6. Select the desired currency 7. Confirm the amount... -
Page 15: Support
WE ARE HERE FOR YOU Terminal Support Line +41 (0) 44 505 13 60 info@wallee.com www.wallee.com/support wallee Terminals wallee AG General Guissanstrasse 47 CH - 8004 Winterthur Custombweb GbmH...
