Basic Locating
1.
Find the FLP and RLP by centering the target ball in the box.
2.
At the FLP, hold trigger for predicted depth reading.
3.
Find the LL by centering the line in the box between the FLP and RLP
(see Locate screen on previous page).
4.
View depth by holding the trigger at the LL on the line between the
FLP and RLP.
5.
Holding the trigger longer than five seconds enables
4
page ).

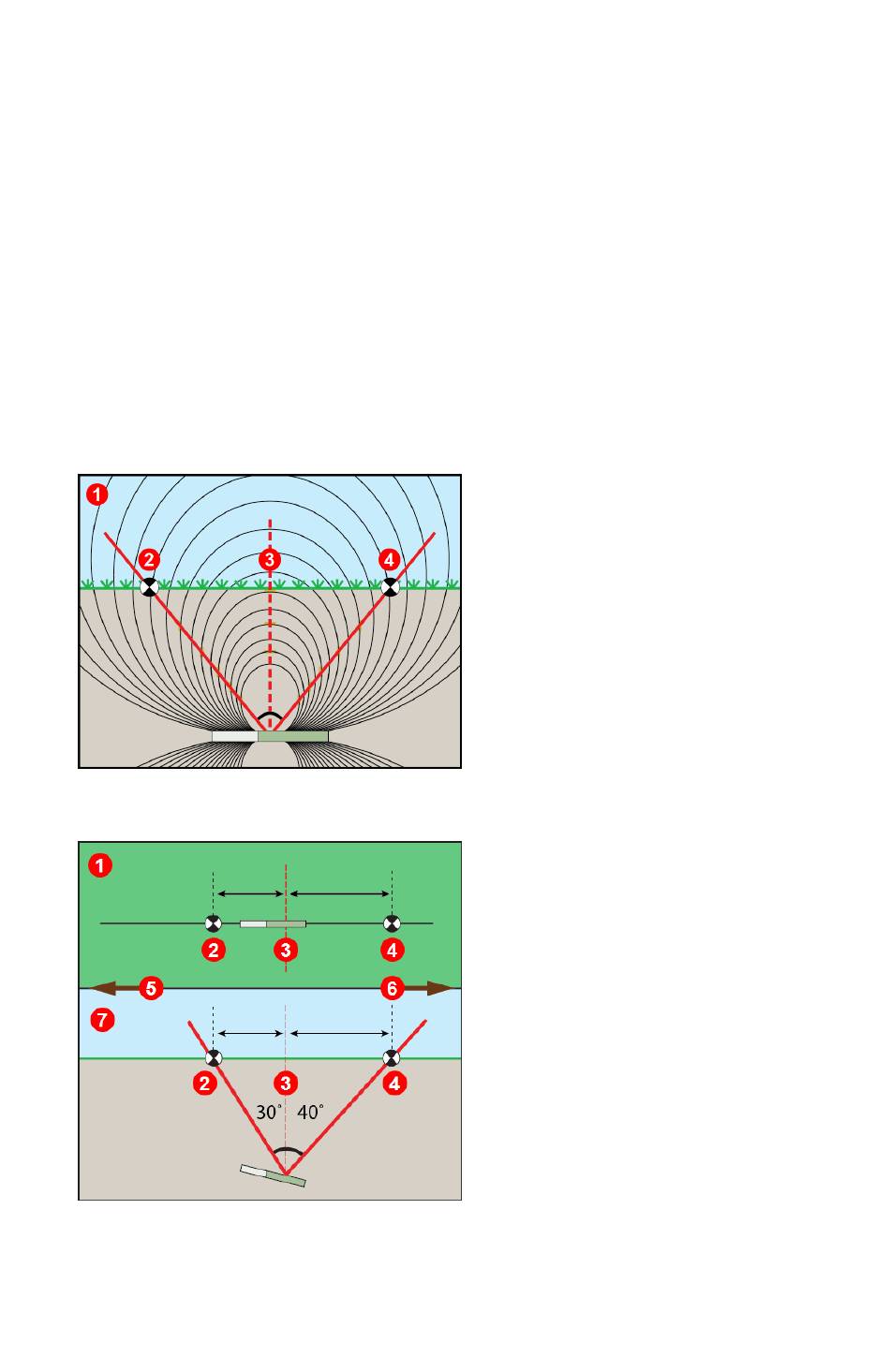

Transmitter Signal Field Geometry
Level Transmitter
Pitched Transmitter
FLP and RLP are not equidistant from the LL when the transmitter is
pitched.
1. Side view
2. RLP: Rear Locate Point
3. LL: Locate Line
4. FLP: Front Locate Point
1. Bird's-eye view
2. RLP
3. LL
4. FLP
5. Drill rig
6. Bore path
7. Side view
- 5 -
Max Mode
(see
