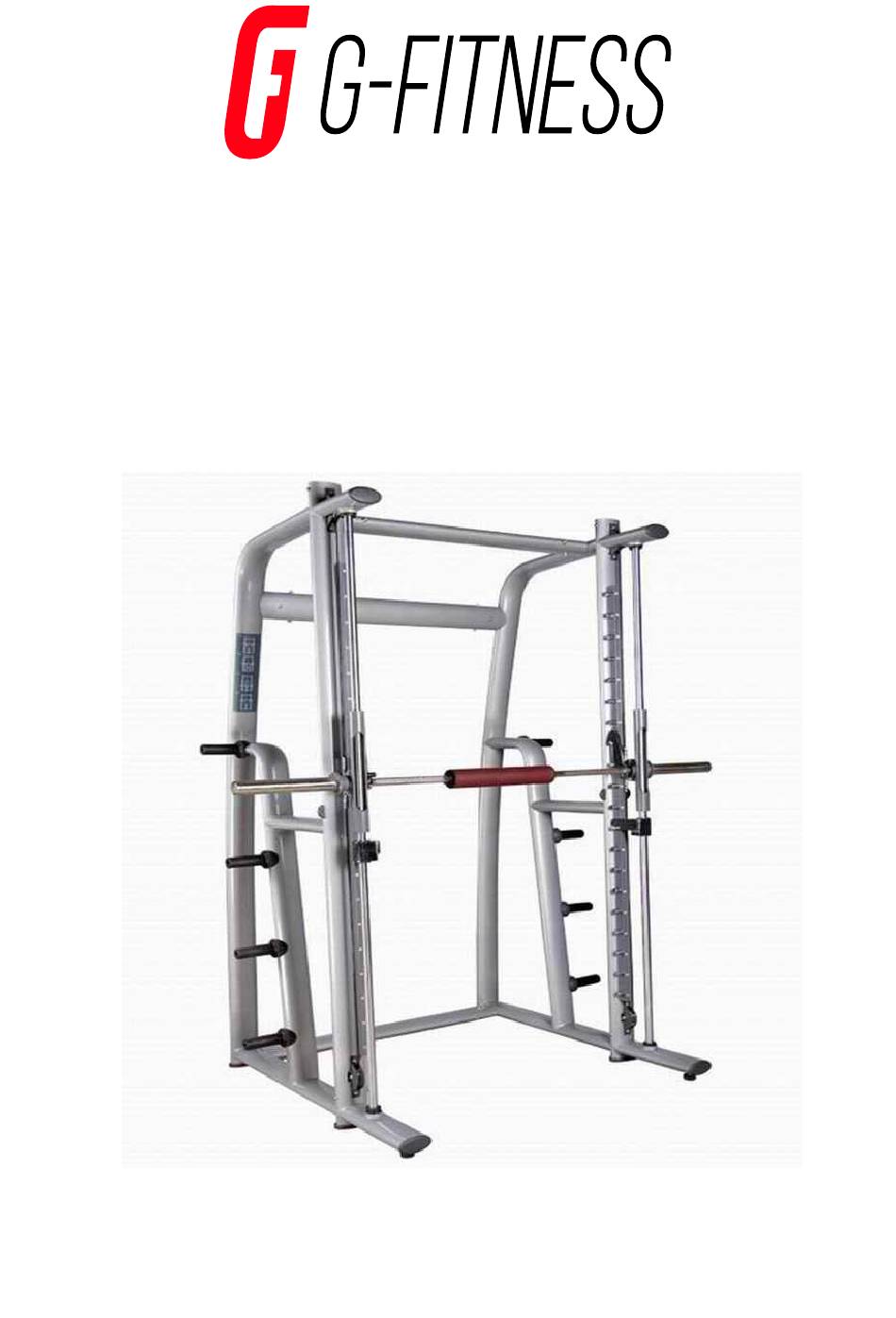

- Page 1 TZ-6017 Smith Machine USER MANUAL The training equipment is in accordance with EN957/GB17498（Class S）...
- Page 2 Profile of Tianzhan Fitness Equipment Co., Ltd Tianzhan Fitness Equipment Co., Ltd was set up in 1998 and is located in Dezhou city, Shandong Province.It is one registered capital of 1,000,000RMB and one area of 20,000 ㎡ with one structure area of 15,000 ㎡, which.Tianzhan is one professional and modern manufacturer mainly specializes in body building project, and combine the production, aftersales service.
-
Page 3: Table Of Contents
! CAUTION Read all precautions and instructions in this manual before using this equipment. Table Of Contents Important Safety Instructions-------------------------------------------------------------------4 Parts List-------------------------------------------------------------------------------------------6 Exploded View------------------------------------------------------------------------------------8 Measurement Guide------------------------------------------------------------------------------9 Assembly Instruction----------------------------------------------------------------------------10 Assembly------------------------------------------------------------------------------------------11 Exercise Instruction------------------------------------------------------------------------------14 Adjustment Instructions-------------------------------------------------------------------------15 Maintenance and Repair-------------------------------------------------------------------------16 Weight Training Tips-----------------------------------------------------------------------------17... -
Page 4: Important Safety Instructions
Important Safety Instructions In the process of maintenance, the fitness equipment is only allowed to use our accessories. In order to avoid unnecessary damage and loss, please don’t act beyond the range of movement. When using exercise equipment, basic precautions should always be taken, including the following: 1. - Page 5 23.Please consult our company if any problems during use and maintenance. Carried Standard: EN957-1,EN957-2 Product Type: TZ-6017 Limited Number: 1 person Machine Size(L*W*H): 1400*2090*2500mm Maximum User: 110kgs Maximum Load: 300kgs...
-
Page 6: Parts List
Parts List NOTE:SOME OF THESE PARTS MAY COME PRE-INSTALLED Item Item Description Description Socket Head Cap Screw (M10*15) Stocket Head Cap Screw(M10*25) Stocket Head Cap Screw(M8*30) 60*120 Elliptic Mat(049) Hex Jam Nut(M8) Socket Head Cap Screw (M10*35) Self-Tapping Screw(M5*15) Foot Tube Pad(211) 60*120 Oval Tube Seal-capping(016) Hex Thin Nut(M10) Socket Head Cap Screw (M8*30) -
Page 7: Exploded View
Exploded View ─ 7─... - Page 8 ─8─...
-
Page 9: Assembly Instruction
Assembly Instruction Assembly of the equipment takes professional installers about 2 hours.If this is the first time you have assembled this type of quipment,plan to spend more time.It is strongly recommended to assemble the equipment by the professional installers.You may find it quicker,safer,easier to assemble this equipment with the help of a friend,as some of components may be large,heavy or awkward to handle alone.It is important that you assemble your product in a clean,clear,uncluttered area.This will enable you to move... -
Page 10: Assembly
Assembly Step1 1. Attach the frame components to intermediate connecting tube. Attach the frame components to intermediate connecting tube,using: Eighteen 11*20*2 washers Eighteen M10*10 hex socket round head bolts Step2 1.Install guiderod(6017-04-18) into guiderod hole of press components Install the guiderod into left and right spacing components( 6017-0201、6017-0202) press Attach... - Page 11 Step1 Drawing ─ 11─...
- Page 12 Step2 Drawing ─ 12─...
- Page 13 Step3 Drawing ─ 13─...
-
Page 14: Exercise Instruction
Exercise Instructions Exercise Instructions 1. Select an appropriate weight according to adjustment of barbell disc. 2. Adjust barbell to desired position. 3. Grasp barbell stem with hands, put the stem on the shoulder and then body squat downward slowly. 4. Slowly return to the starting position. ─... -
Page 15: Adjustment Instructions
Adjustment Instructions 1. Hold the barbell stem with hands; adjust it to desired position upward and downward to make the insurance on both sides hanging on the corresponding positioning axis. 2. After adjustment, the users ensure that the insurance has been hanged on the positioning axis completely and then use. -
Page 16: Maintenance And Repair
Maintenance and Repair Within seven days since the purchase date, we can allow the customers to choose the method of returning, exchanging or maintaining goods if the equipment appears quality problems. Within seven days to fifteen days since the purchase date, we can allow the customers to choose the method of exchanging or maintaining goods if the equipment appears quality problems. -
Page 17: Weight Training Tips
Weight Training Tips Use this manual to guid you through the basic exercises you can perform on your equipment.To gain maximum results and avoid possible injuiry,consult a fitness professional to develop your complete exercise program. Always consult your physician before starting any exercise program. To be successful in your exercise program,it is important to develop an understanding of the basic principles of strength traning.Now that you have your equipment,it is only natural that you want to get started immediately.First,determine a set of realistic goals... - Page 18 MF/Customer Service:Dezhou Tianzhan Fitness Equipment Co.,Ltd Add: Shiji Industrial Zone,Ningjin County,Shandong Province Tel: 0086 534 5918123 Fax: 0086 534 5066123 Email:tzfitness678@tzfit.com Website: www.tzfit.com...
